6.7.7 Notch filter
Notch filter can suppress mechanical resonance by reducing the gain at a specific frequency. After the
notch filter is set correctly, the vibration can be effectively suppressed and the servo gain can be
continuously increased.
The principle diagram of notch filter is as follows:

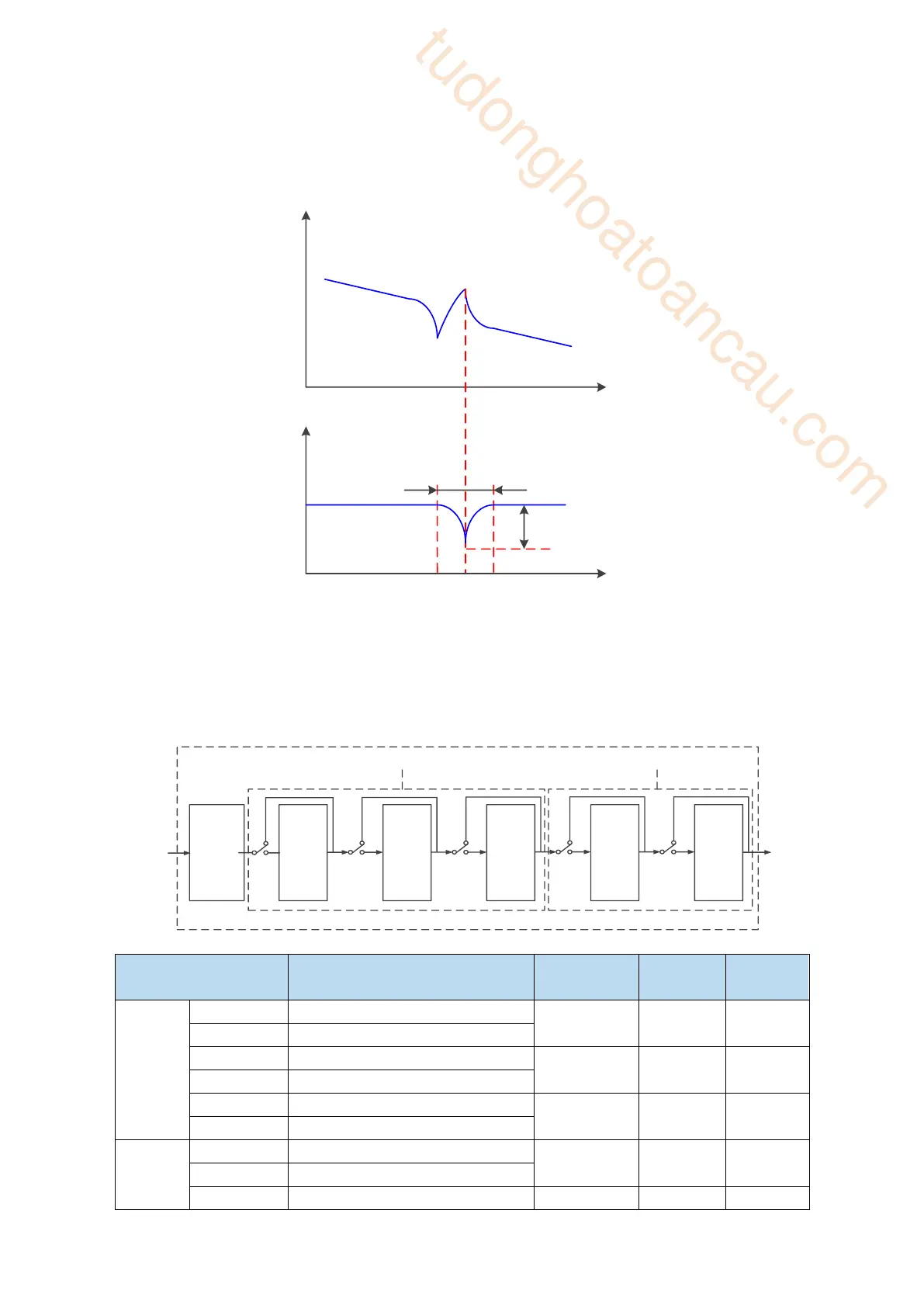

Principle diagram of notch filter
The servo driver has five sets of notch filters, each with three parameters, notch frequency, notch
attenuation and notch bandwidth. The first and second notches are set automatically, and the third,
fourth and fifth are set manually.
The torque instruction filter and notch filter are in series in the system. As shown in the figure below,
the switch of the notch filter is controlled by P2-69 and P2-70.
