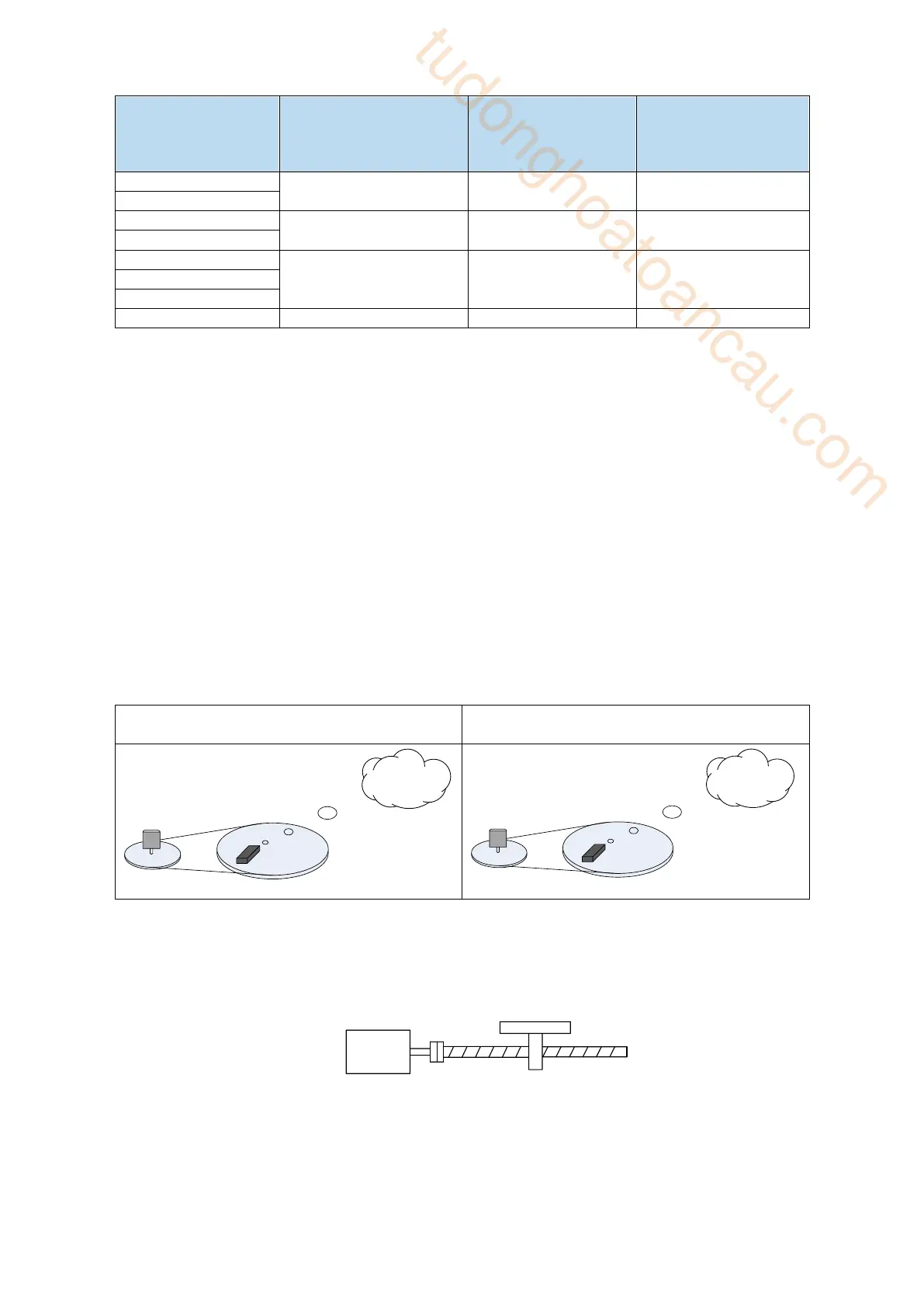

2. Recommended brake resistance specifications
min resistance (cannot be
less than this value)
External regeneration
resistance
(recommended
resistance)
External regeneration
resistance
(recommended power
value)
Note:
(1) The smaller the resistance is, the faster the discharge will be, but it is easy to break down the
resistance if it is too small. Therefore, the lower limit should be as close as possible but not less than
the lower limit when selecting the type.
(2) When wiring, please use high temperature resistant and flame-retardant wires, and pay attention that
the regenerative resistance surface does not contact with the wires.
5.3 Position control
5.3.1 General position control
5.3.1.1 Electronic gear ratio
1. Overview
The so-called "electronic gear" function has two main applications:
(1) Determine the number of command pulses needed to rotate the motor for one revolution to
ensure that the motor speed can reach the required speed.
As an example of 17-bit encoder motor, the pulse frequency sent by the upper computer PLC is
200kHz:
Pulses per revolution set to 10000
Electronic gear ratio set to 131072:10000
Set pulses per revolution to 5000
Electronic gear ratio set to 131072:5000
Max speed
600rpm
Two circle radius ratio: 2:1
Big circle run one rotation (need 20000
pulses), small circle run two rotations.
Max speed
1200rpm
Two circle radius ratio: 2:1
Big circle run one rotation (need 10000
pulses), small circle run two rotations.
(2) In the precise positioning, the physical unit length corresponding to 1 command pulse is set for
calculation.
For example: the object moves 1um per command pulse. The command pulses of load rotating one
circle = 6mm / 1um = 6000. In the case of deceleration ratio is 1:1, set pulse per rotation P0-11=6000,
P0-12=0. Then if the PLC outputs 6000 pulses, the object will move 6mm.
Encoder: 131072（17-bit） ball screw pitch: 6mm
