Xinje DS5K Series User Manual

◼ DS5K-43P0-PTA Unit: mm
210.18
210.18
110.00
222.00
99.00
211.00
5.50
5.50
R2.75

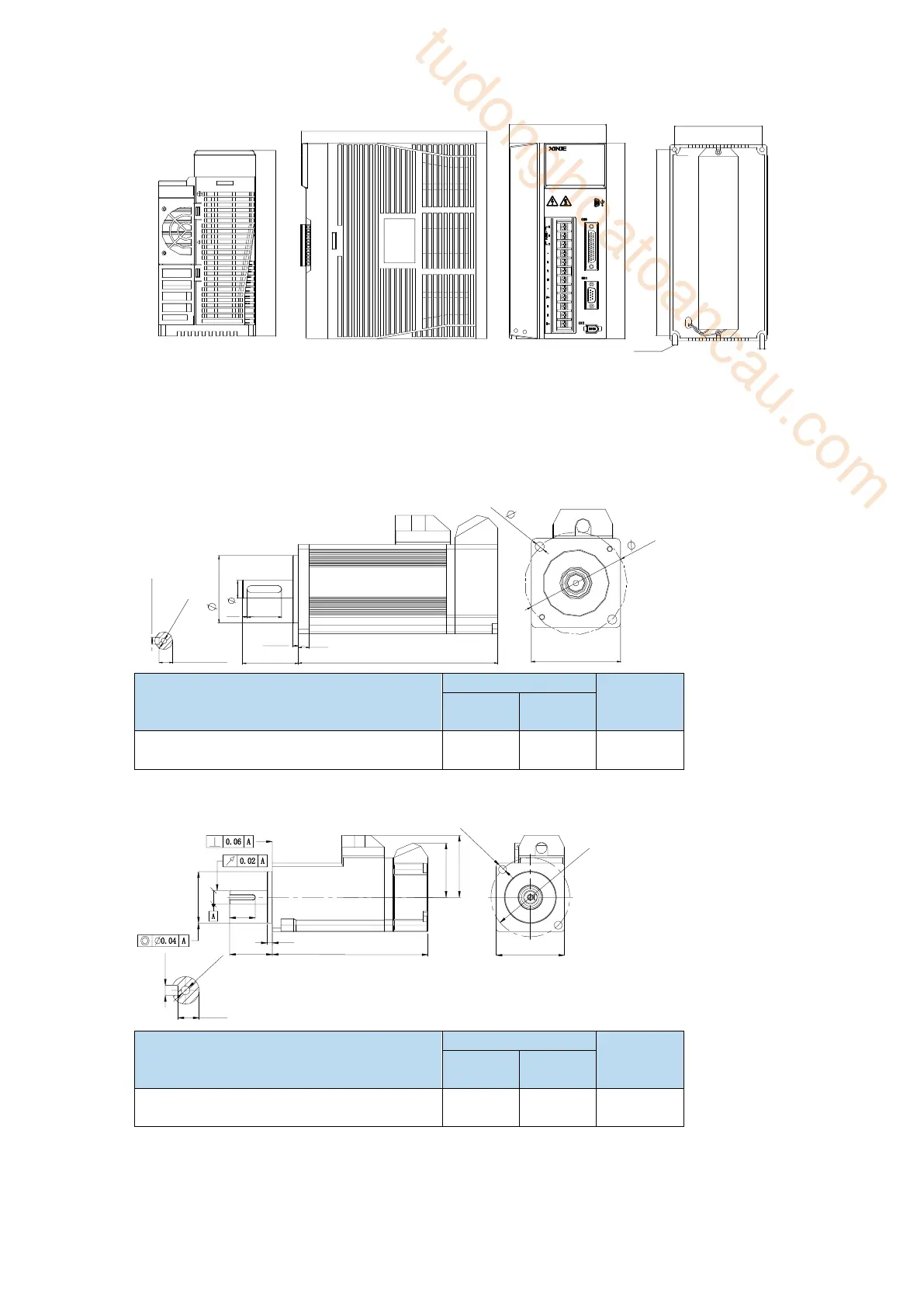

2.5 Servo motor dimension
◼ 40 series motor installation dimensions Unit: mm
15.5
2.5
25±0.5 LA
10
8h6
30h7
4
2-
4.3
a40
46
M3深6
3
0
-0.014
6.2
0
-0.1
Motor model
LA±1
Inertia
level
Normal
With
brake
MS5S-40ST-C□00330□□-20P1-S01/S02
89.5
119
Low
inertia
Ø30h7
∅
46
□ 40
2-
∅
4.6
3
N9
15
25
3
LA
Ø8h6
6.2
31.65
36.2
M3深8
Motor model
LA±1
Inertia
level
Normal
With
brake
MS6H-40C□30B□1-20P1
91
122.9
High
inertia
