No. Name Description
d1-04 Frequency Reference 4
Frequency reference when multi-function input “Multi-Step Speed Reference 1,
2" (H1-oo = 3 and 4) are both on. Setting unit: set by o1-03.
n
Digital Input
Terminal Parameter Setting Contents
S4 H1–04 4 Multi-Step Speed Reference 2
S5 H1–05 3 Multi-Step Speed Reference 1
n

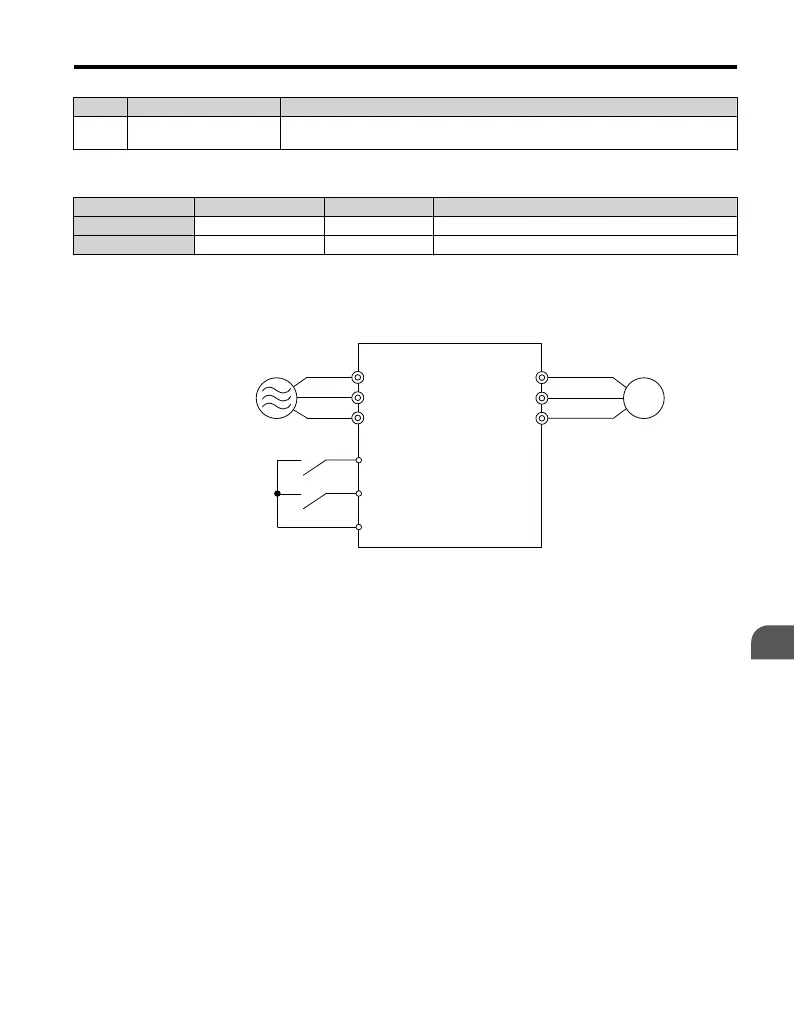

Wiring Example
Set up external switches SW1 and SW2.
R/L1
S/L2
T/L3
Three-Phase, 200 Vac
(400 Vac)
S4
S5
SW1
SW2
SC
U/T1
V/T2
W/T3
M
Drive
Figure 4.14 Control Terminals for 4 Multi-Step Speeds
4.5 Basic Operation
YASKAWA ELECTRIC TOEP C710606 25B YASKAWA AC Drive J1000 Installation & Start-Up Manual
97
4
Start-Up Programming
& Operation
2/6/2008-14:44
