Yealink CP860 Administrator's Guide

Configuring Advanced Features
259

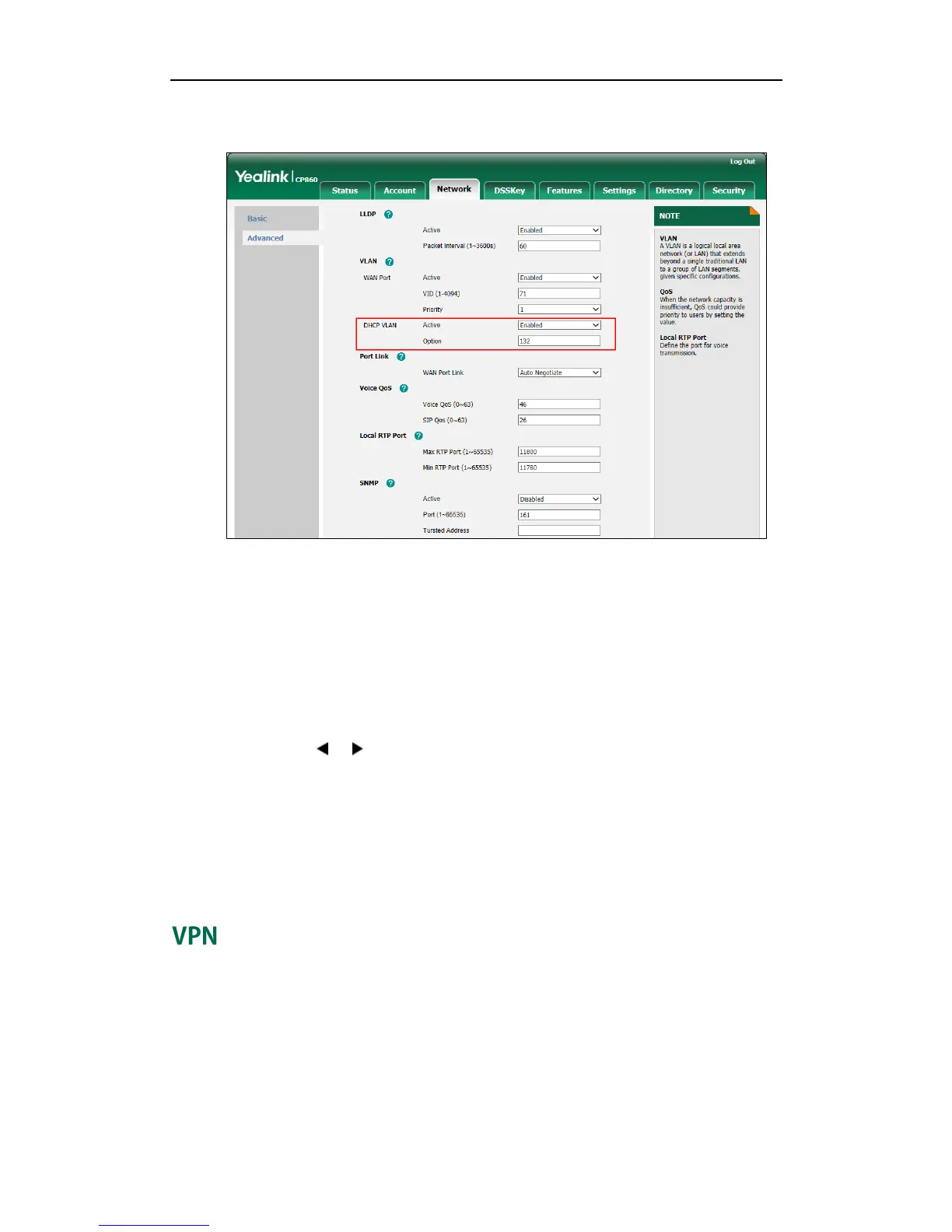

The default option is 132.
4. Click Confirm to accept the change.
A dialog box pops up to prompt that settings will take effect after reboot.
5. Click OK to reboot the phone.
To configure VLAN for Internet port via phone user interface:
1. Press Menu->Settings->Advanced Settings (Default password: admin)
->Network->VLAN->WAN Port.
2. Press the or soft key to select the desired value from the VLAN Status field.
3. Enter the VLAN ID (1-4094) in the VID field.
4. Enter the priority value (0-7) in the Priority field.
5. Press the Save soft key to accept the change.
The IP phone reboots automatically to make settings effective after a period of
time.
VPN (Virtual Private Network) is a secured private network connection built on top of
public telecommunication infrastructure, such as the Internet. VPN has become more
prevalent due to the benefits of scalability, reliability, convenience and security. VPN
provides remote offices or individual users with secure access to their organization's
network. There are two types of VPN access: remote-access VPN (connecting an
individual device to a network) and site-to-site VPN (connecting two networks together).

Yealink CP860 Specifications

General

Speakerphone	Yes
Voice codecs	G.711, G.722, G.729ab, iLBC
Handset type	-
Product type	IP Phone
Product color	Black
Display resolution	192 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	1
Networking standards	IEEE 802.1x, IEEE 802.3af
Supported network protocols	IPv4/IPv6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Number of handles included	- pc(s)
Storage temperature (T-T)	10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	260 mm
Width	320 mm
Height	52 mm
