YOKOGAWA WT5000 Features Guide

14-5
IM WT5000-01EN
Integration Mode (Integration Mode)
The integration feature has the following five modes.
Integration Mode Start Stop Repetition
Manual integration mode
(Normal)
Touch panel/key
operation
Touch panel/key
operation
−−−
Standard integration mode
(Normal)
Touch panel/key
operation
Stopped by the
timer
−−−
Continuous integration mode
(Continuous)
Touch panel/key
operation
Touch panel/key
operation
Repeats when the
timer expires
Real-time normal integration mode
(R−Normal)
Date and time Date and time −−−
Real-time continuous integration mode
(R−Continuous)
Date and time Date and time Repeats when the
timer expires

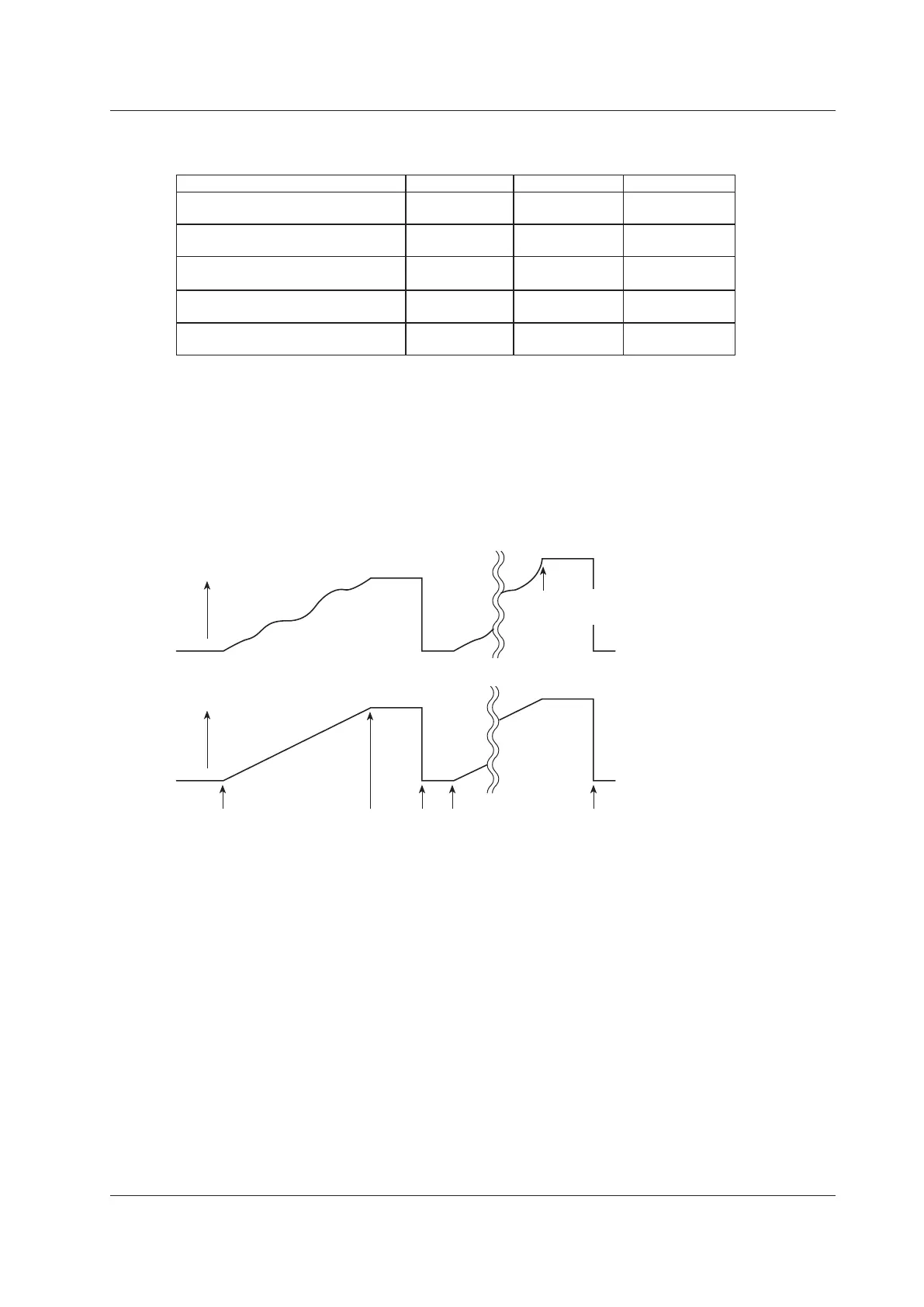

Manual Integration Mode
When you set the integration mode to normal and set the integration timer to 00000:00:00, this instrument
performs integration in manual integration mode. After integration is started, it continues until you tap Stop or
press STOP. However, if either of the conditions below is met, integration is stopped, and the integration time
and integrated value are held.
• The integration time reaches the maximum integration time (10000 hours).
• The integrated value reaches its maximum or minimum displayable value.
Integration time
ResetStart
Integrated value
Stop Start Reset
Hold
Hold
Hold
Hold
When the maximum
integrated value is
reached
14 Integrated Power (Watt Hours/Ampere Hours)
