16 Data Storage
Data Storage (Store, MENU (STORE))
You can store numeric data in binary format to the internal memory or a USB memory device. You can store the
data at the data update interval or at a specified time interval (if the waveform display is enabled and the update
mode is set to trigger, the data update interval depends on the trigger operation). You can convert stored binary
data to ASCII (.csv) format. You can analyze the converted data on a PC. You cannot use this instrument to
recall stored data.

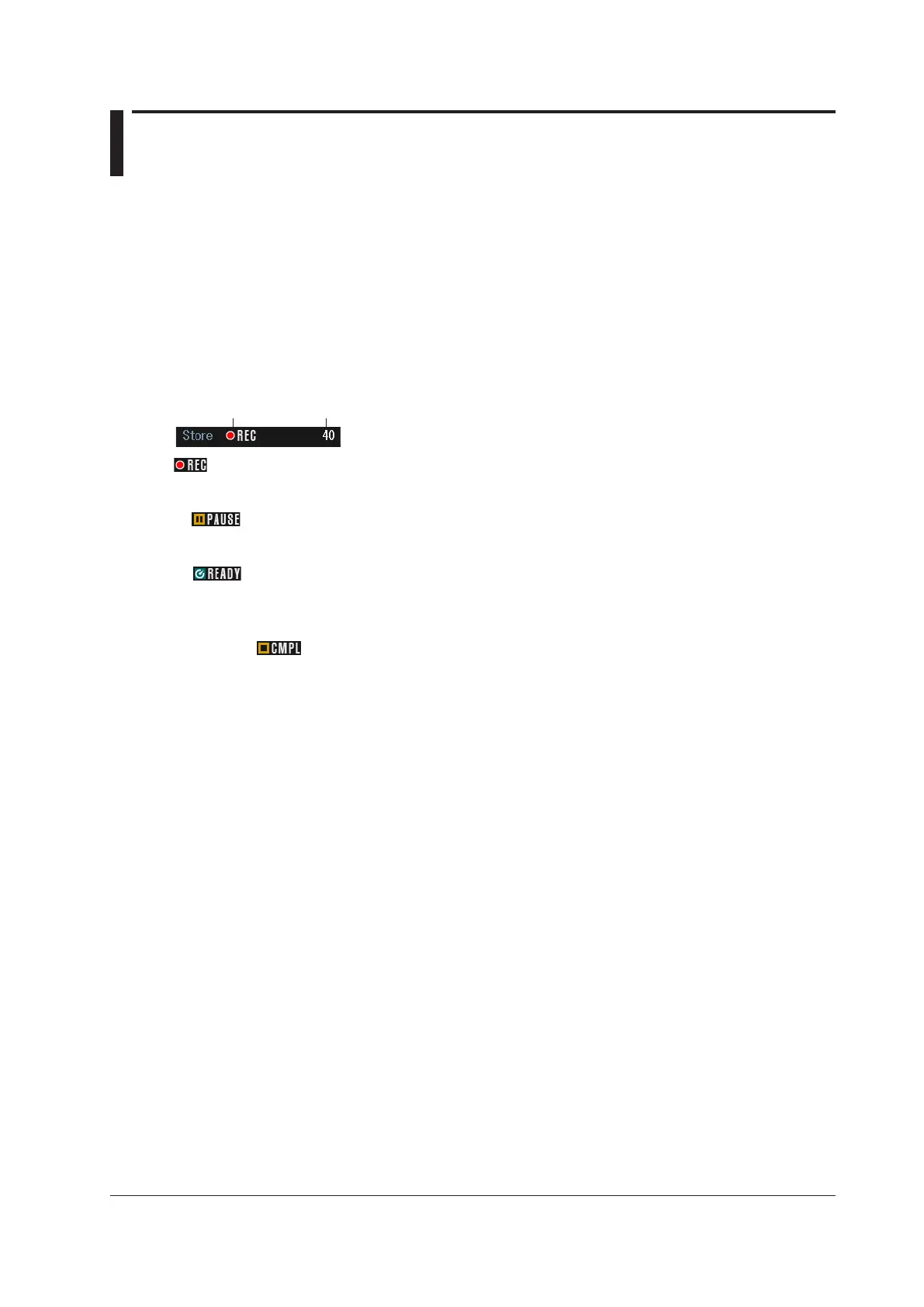

Storage-Related Display
When the storage state is any state other than that of being reset, the storage state and store count appear at
the top of the screen.
Storage state Storage count
REC
Storage in progress.
PAUSE
Storage paused.
READY
The storage mode is real-time storage mode, integration-synchronized storage mode, or event-synchronized
storage mode, and this instrument is ready to begin storing.
CMPL(Complete)
• This instrument has completed the specified number of storage operations.
• This instrument is in real-time storage mode and the scheduled storage stop time has passed.
When storage is reset, no storage state is displayed at the top of the screen.
Limitations on Changing the Settings during Storage
While data is being stored, there are some settings that you cannot change and functions that you cannot
execute. For details, see appendix 9 in the Getting Started Guide, IM WT5000-03EN.
Storage Conditions
The following storage configuration menus are available.
• Storage control
• Stored items
• File save conditions
