Symbologies 12 - 7

Enable/Disable EAN-13/EAN-8

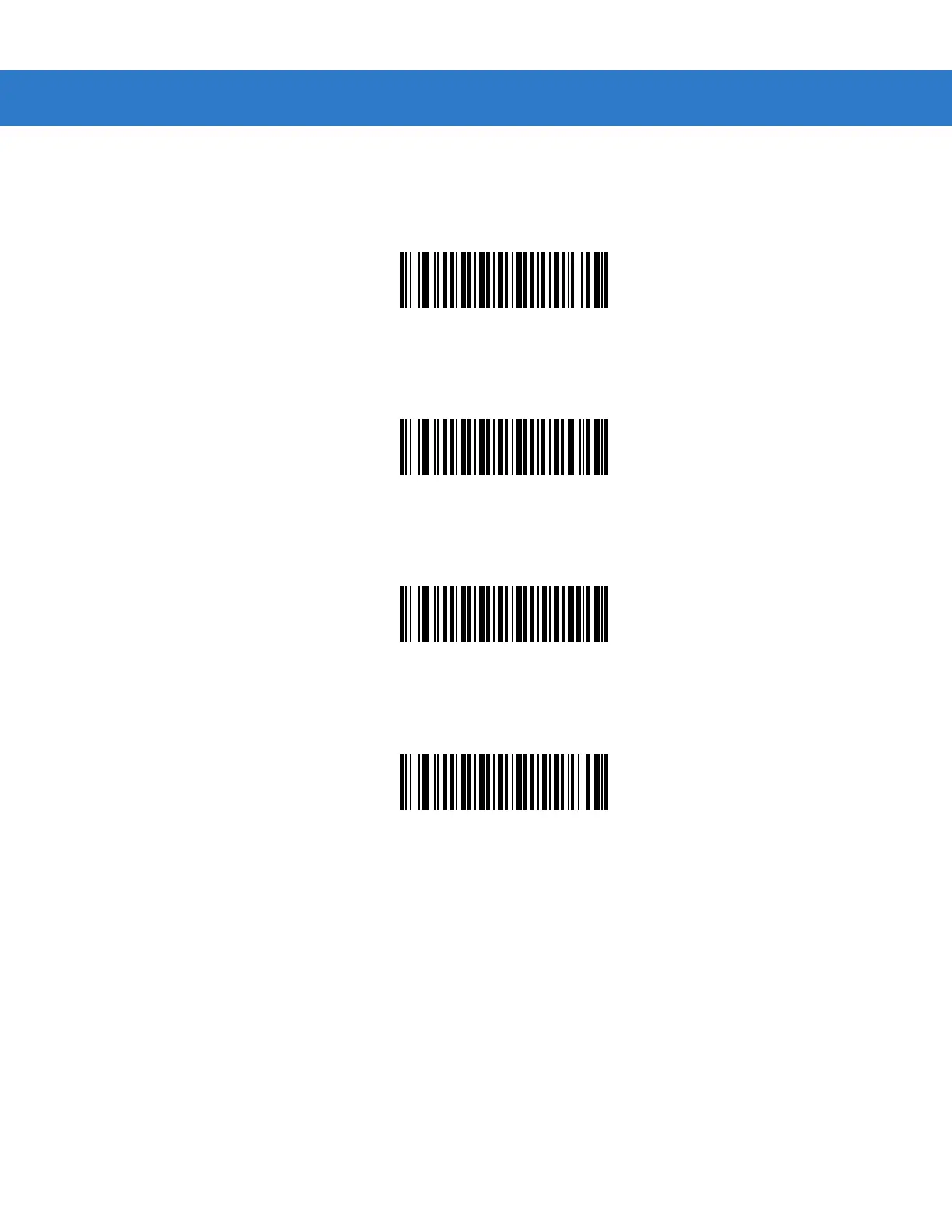

To enable or disable EAN-13 or EAN-8, scan the appropriate bar code below.

*Enable EAN-13

Disable EAN-13

*Enable EAN-8

Disable EAN-8
