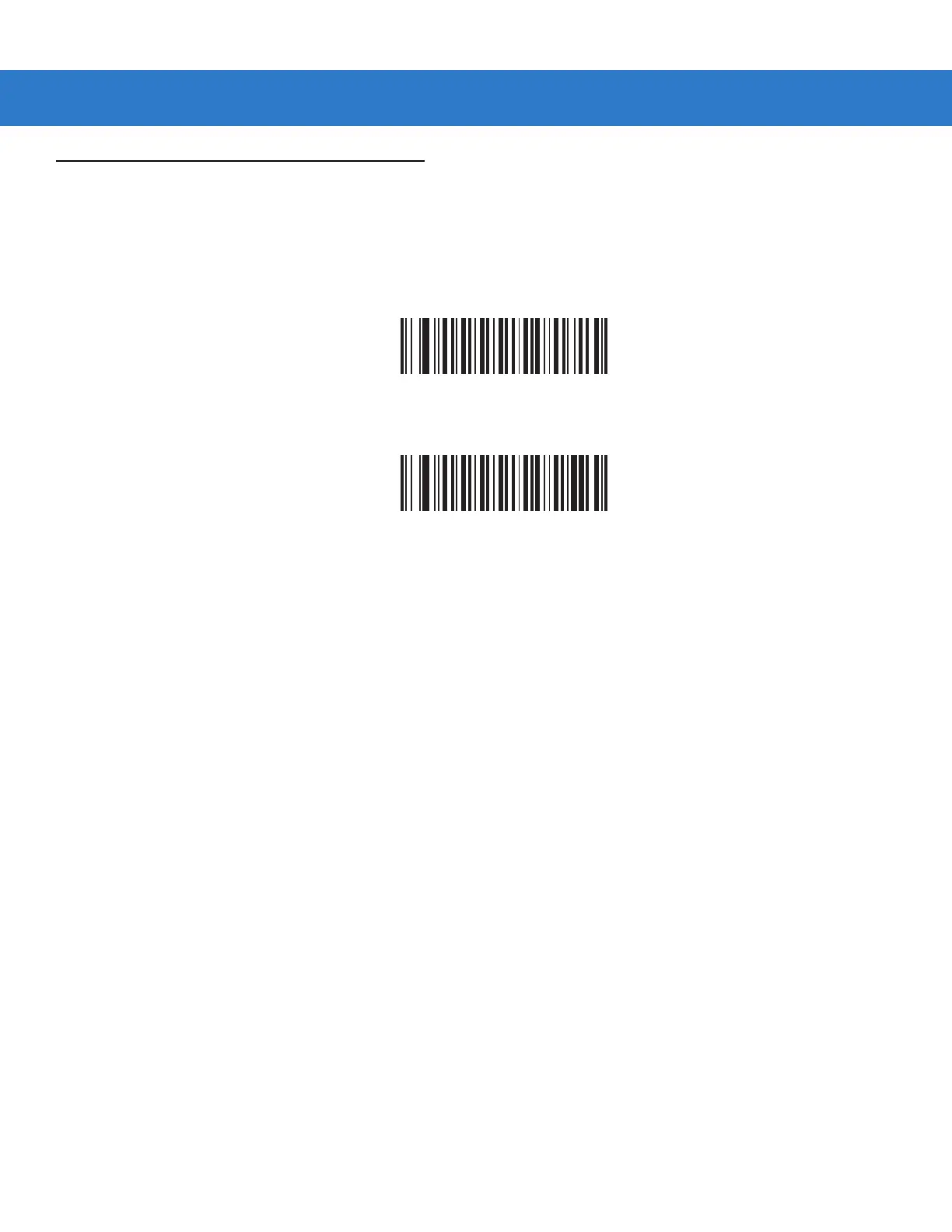

12 - 44 LS2208 Product Reference Guide

Chinese 2 of 5

Enable/Disable Chinese 2 of 5

To enable or disable Chinese 2 of 5, scan the appropriate bar code below.

Enable Chinese 2 of 5

*Disable Chinese 2 of 5
