Zebra LS2208 Reference Guide

6 - 2 LS2208 Product Reference Guide
Connecting an RS-232 Interface
The scanner connects directly to the host computer.

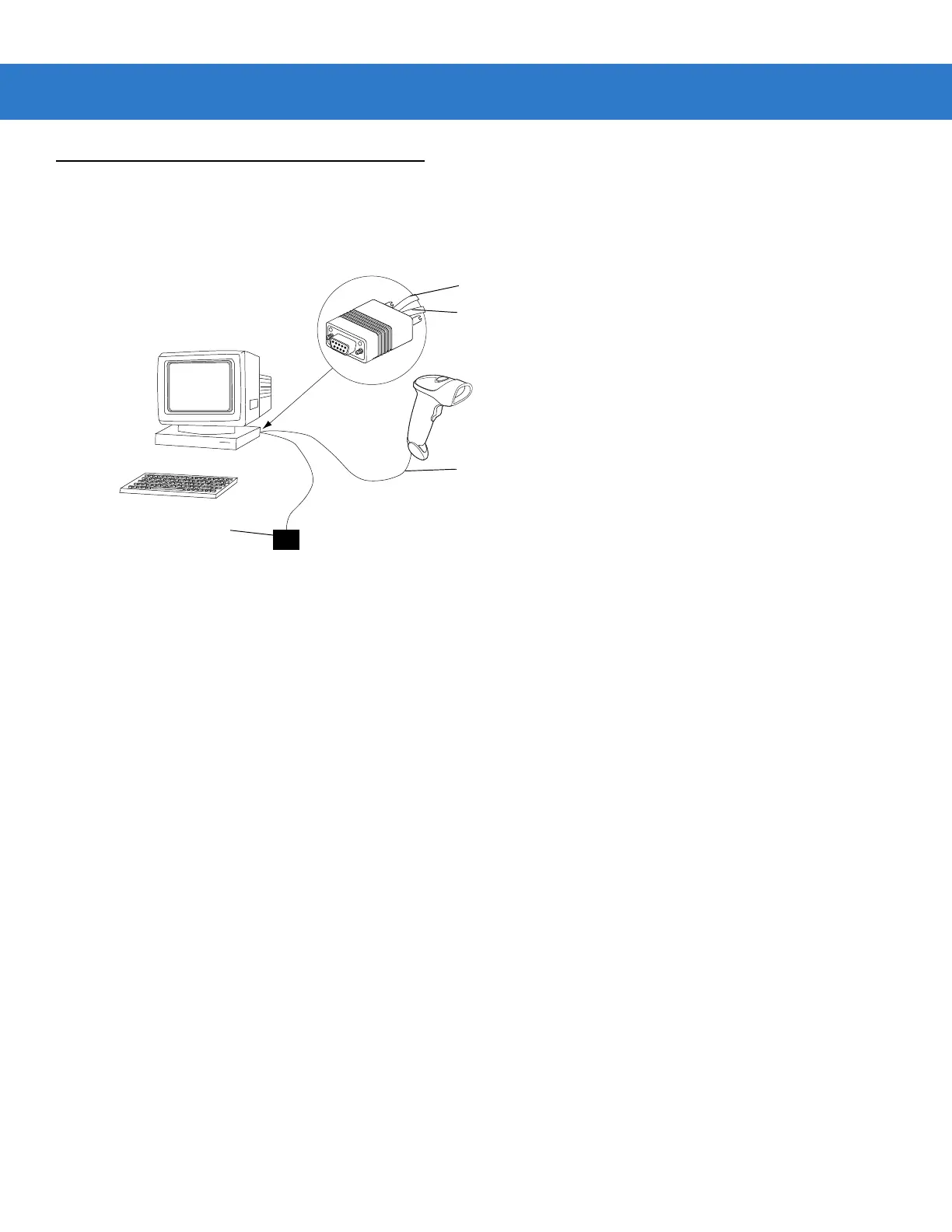

Figure 6-1 RS-232 Direct Connection
1. Connect the RS-232 interface cable to the bottom of the scanner, as described in Installing the Interface Cable
on page 1-3.
2. Connect the other end of the interface cable to the serial port on the host.
3. Connect the power supply.
4. Scan appropriate bar codes in this chapter to match host settings.
Serial Port Connector to Host
Interface Cable
Power Supply
Interface Cable
Power Supply Cable
