4 - 6 LS2208 Product Reference Guide

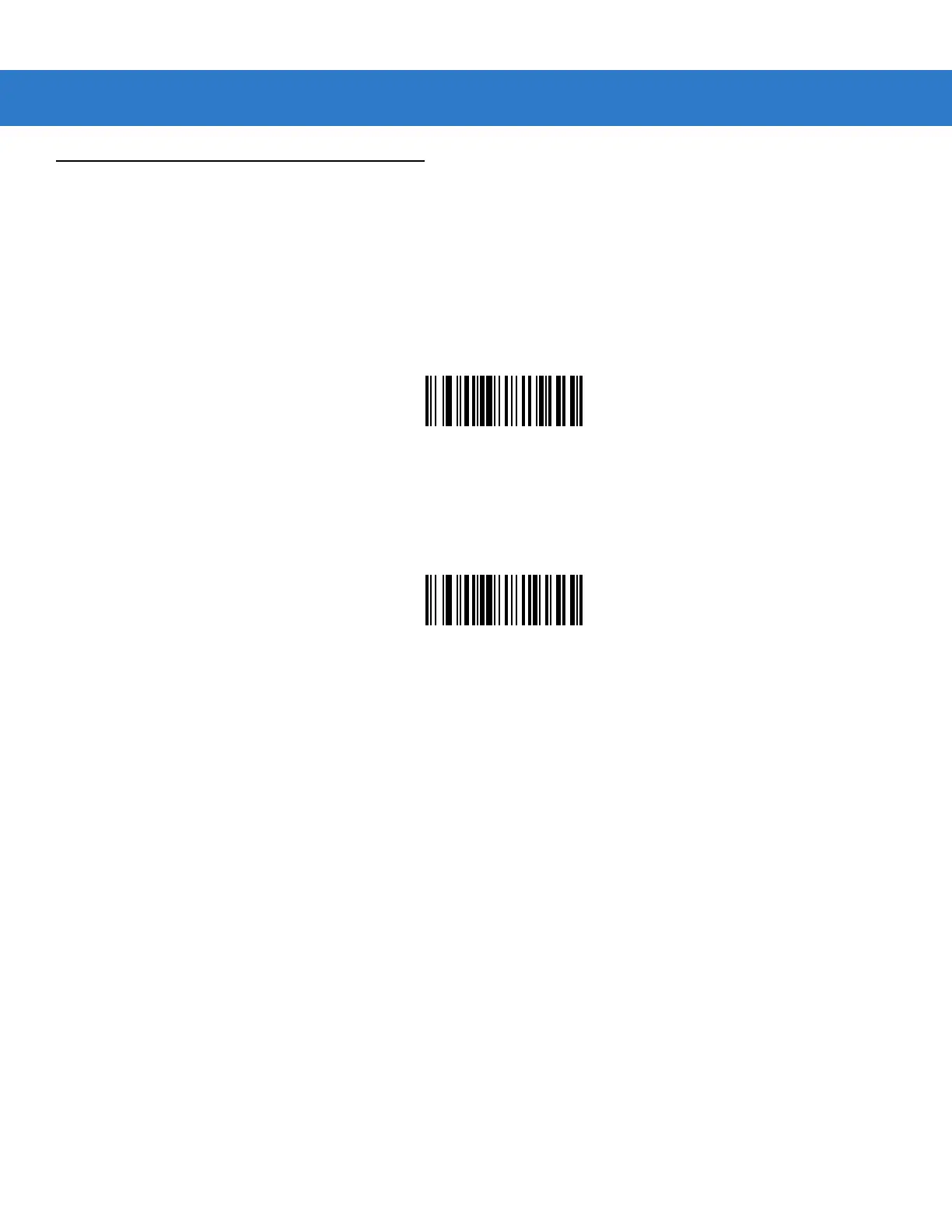

Power Mode

This parameter determines whether or not power remains on after a decode attempt. When in reduced power

mode, the scanner enters into a low power consumption mode to preserve battery life after each decode attempt.

When in continuous power mode, power remains on after each decode attempt.

*Continuous On

Reduced Power Mode
