Motor Controller [Before 2022MY]
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Tools Required (includes tools required for
parent jobs):
• T25
• T30
• 3/16” standard screwdriver
• 2mm hex wrench
• 3mm hex wrench
• 10mm socket and ratchet
• 22mm 6-point socket
• Non-marring trim removal/pry tool
• Scissor jack
New Seals Required:
• HV cable seals (quantity: 5)
• HV cable O-rings (quantity: 5)
New Fasteners Required:
• Cable tie (quantity: 2)
• Double loop cable tie (quantity: 1)

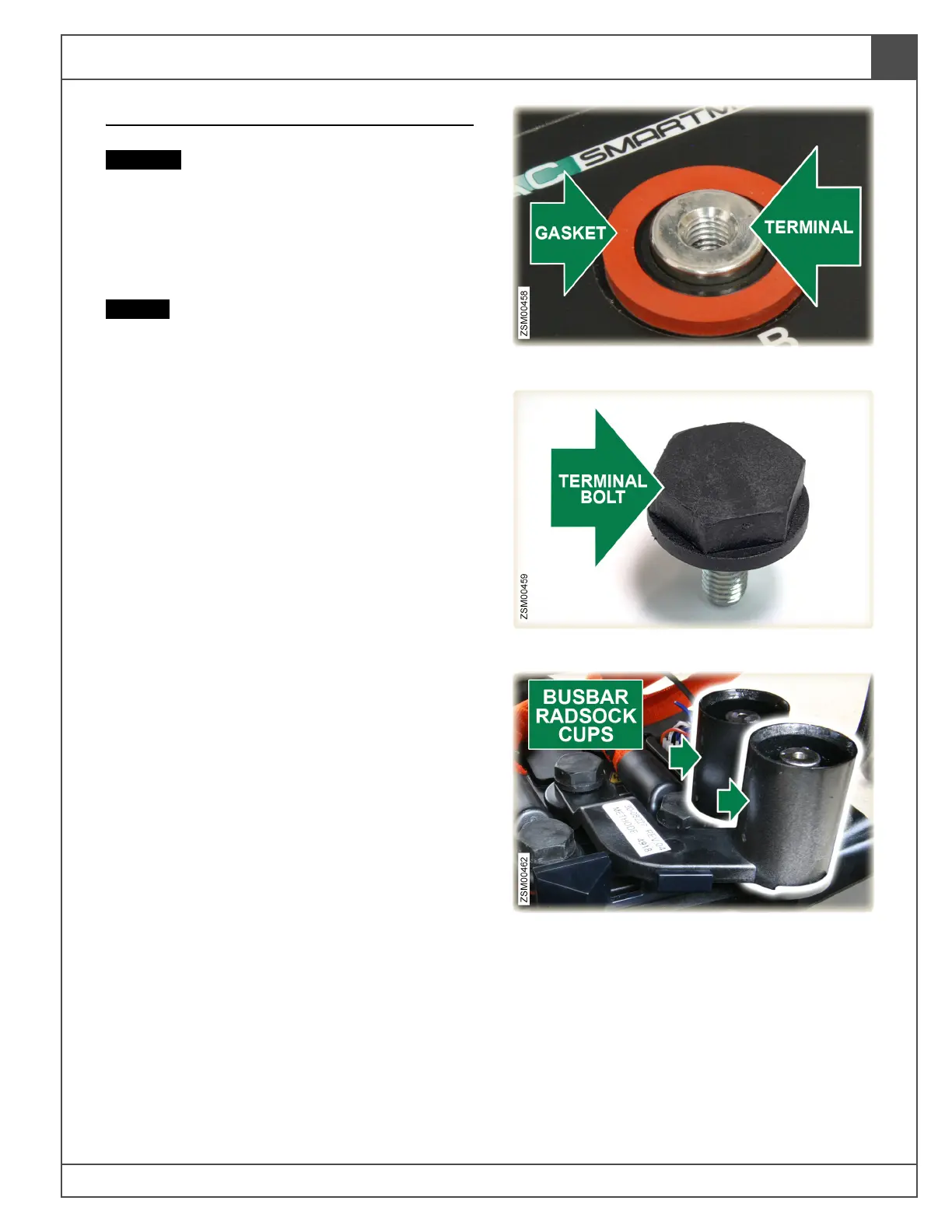

Component Identification
The following important items are identified to
assist in understanding the terminology used in the
removal and installation procedures of the motor
controller.
1. Terminal and terminal gasket.
2. Terminal bolt.
3. Radsock connection cups (on the end of each
busbar).
