20-32 Power Pack
Power Pack
20

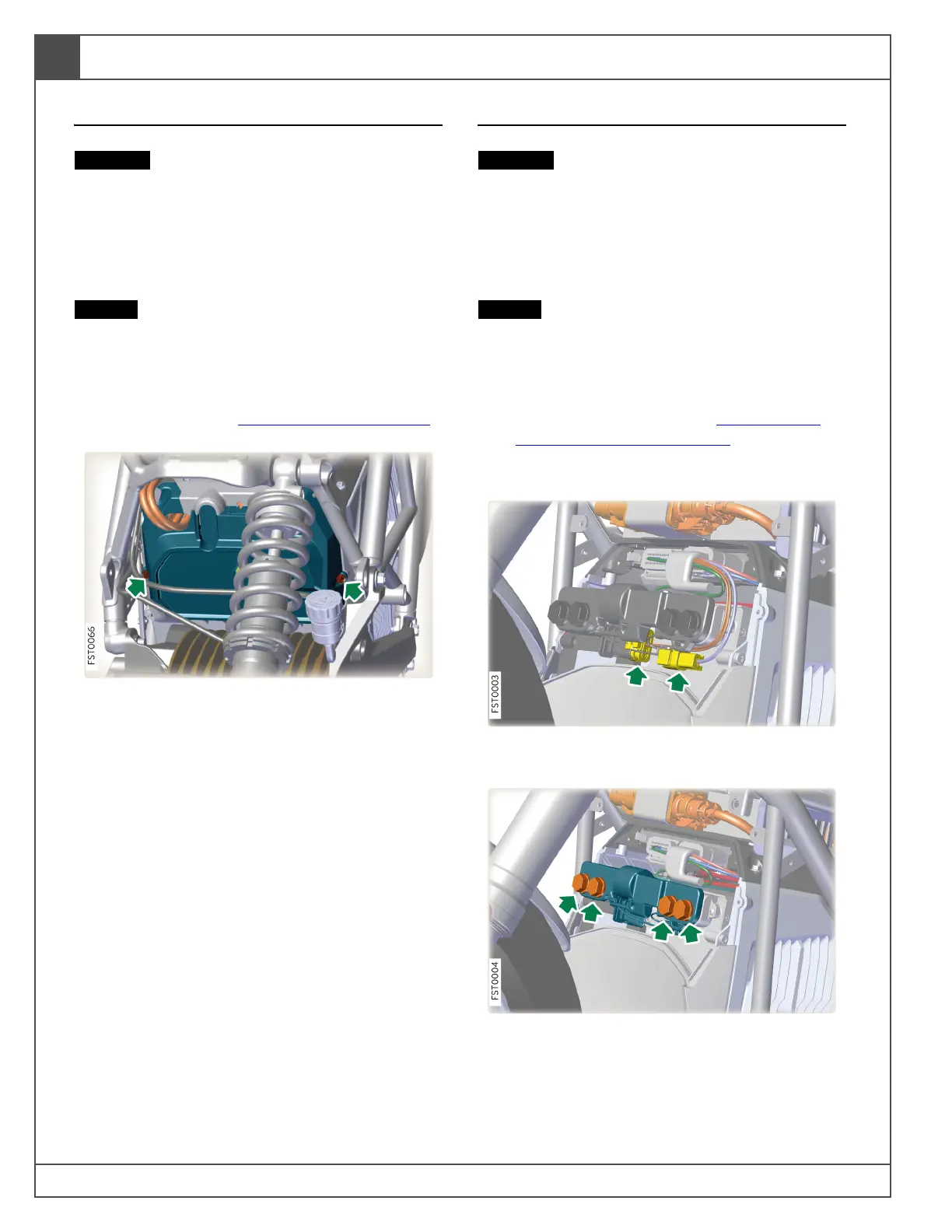

Rear Cover [22MY Onwards]
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Removal
1. Remove tail. See Tail Assembly, page 60.36.
2. Remove T25 bolts (x2) securing rear cover to
battery module. Torque 2.5 lb-ft (3.5 Nm).
3. Remove rear cover.
Installation
1. Installation is the reverse of removal
procedure.
Mid Pack Protection Unit [22MY Onwards]
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Removal
1. Remove service cover. See Service Cover
[22MY Onwards], page 20.31.
2. Remove zip ties securing harness connectors.
3. Disconnect harness connectors (x2).
4. Remove bolts (x4) securing mid pack
protection unit. Torque 10 lb-ft (13.5 Nm).
5. Remove mid pack protection unit.
To Next Page
