Motor and Drive System
Rear Sprocket 30-43
30
Rear Sprocket
Rear Sprocket
Tools Required (includes tools required for
parent jobs):
• T25
• T40
• T45
• 27mm socket and ratchet
• 13mm wrench
• Motorcycle stand
New Fasteners Required:
• Cable ties (quantity: 1)

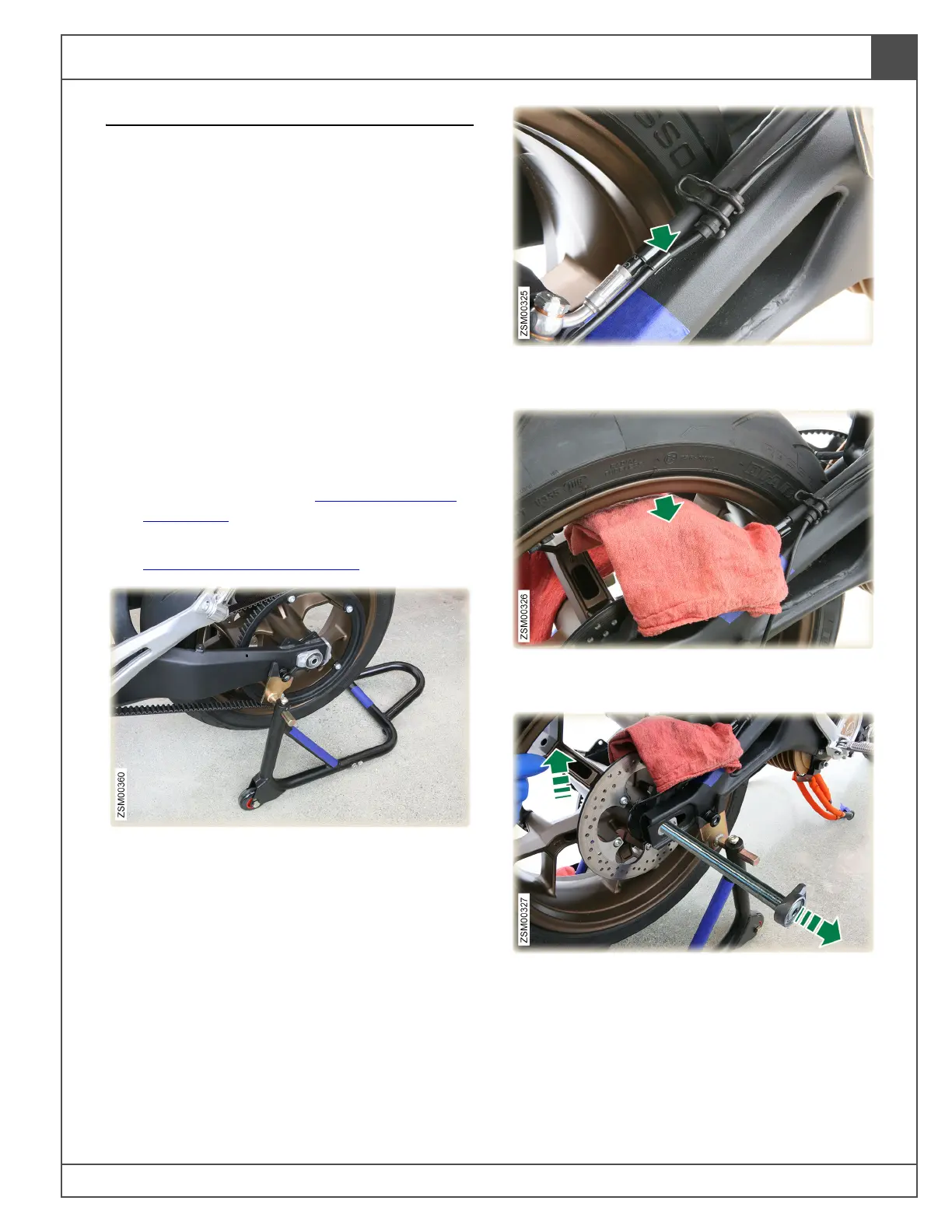

Removal
1. Remove drive belt. See Replace Drive Belt
,
page 40.35.
2. Remove brake pads from the rear caliper. See
Brake Pads (Rear)
, page 45.5.
3. Safely support the motorcycle by using a
motorcycle stand.
4. Release rear wheel speed sensor (WSS)
harness from plastic retainer.
5. Place rag over rear caliper to protect painted
surfaces.
6. Lift rear tire slightly and slide rear axle out of
the swing arm.
