Wheels
Front Wheel 50-1
50
Wheels
Front Wheel
Front Wheel
Tools Required (includes tools required for
parent jobs):
• T30
• T50
• 6mm Allen wrench
• 17mm hex bit socket and ratchet
• Ratchet straps (x2)
• Hoist
New Fasteners Required:
• Cable ties (quantity: 4)
Removal

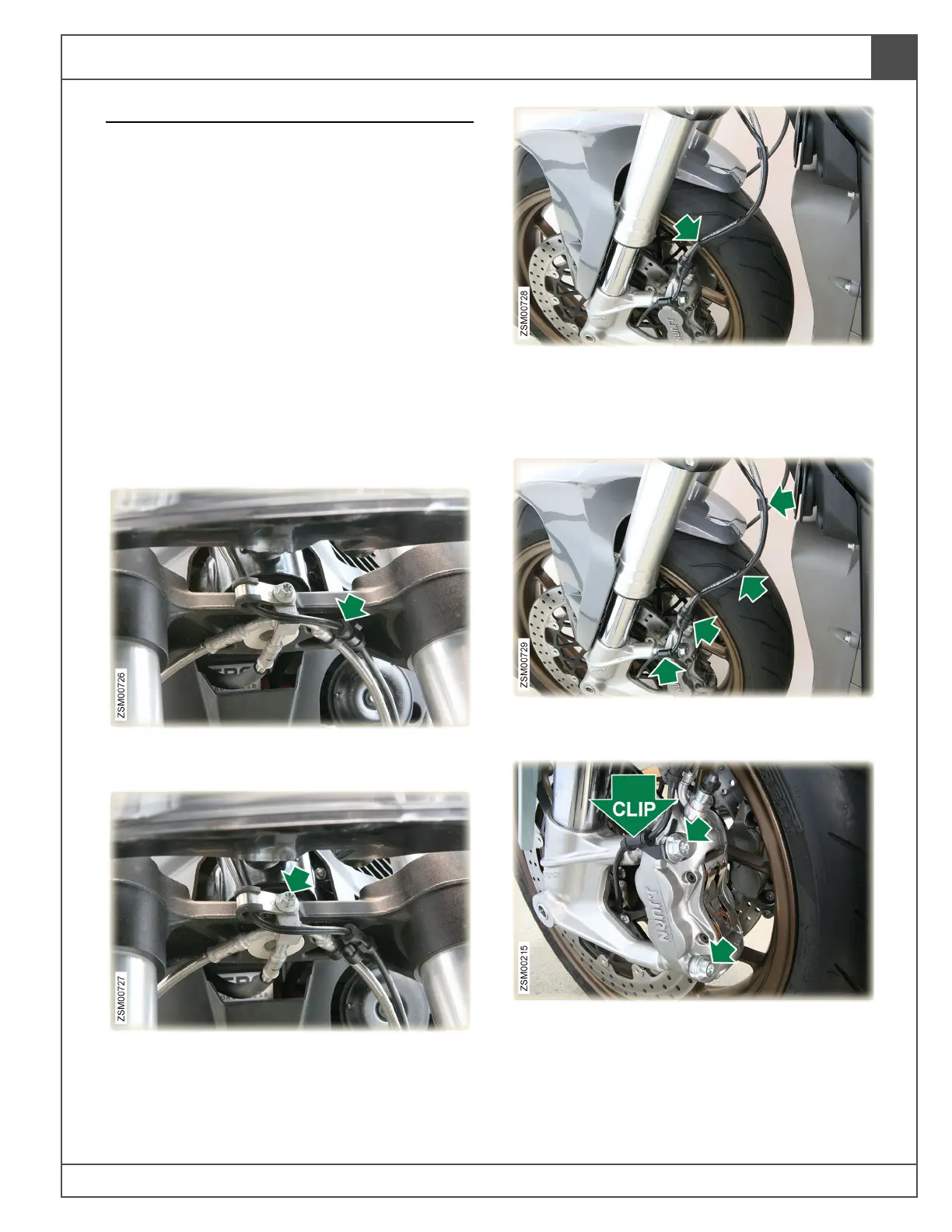

1. Release plastic clip retaining WSS harness to
front brake hose.
2. Remove bolt securing wheel speed sensor
(WSS) harness cushion clamp and front brake
hose. Tool: T30. Torque: 5 lb-ft (7 Nm).
3. Cut cable tie securing the WSS sensor
harness to the left front brake hose.
Note: Replace cable tie during the installation
process.
4. Release WSS sensor harness from the left
front brake hose clips (x4).
5. Remove left front caliper bolts (x2) and collect
retaining clip. Tool: T50. Torque: 30 lb-ft
(41 Nm).
6. Remove left front caliper from rotor.
