Suspension
Rear Suspension 40-19
40
Swingarm
Tools Required (includes tools required for
parent jobs):
• T20
• T25
• T30
• T40
• T45
• T50
• 3/16” standard screwdriver
• 2mm hex wrench
• 10mm socket and ratchet
• 13mm socket
• 17mm socket
• 27mm socket
• 13mm wrench
• Non-marring trim removal/pry tool
• Motorcycle stand
• Hoist
• Ratchet straps (x2)
New Fasteners Required:
• Cable tie (quantity: 1)
• License plate harness anchor (quantity: 1)
New Seals Required:
• Crush washers (x2)
Removal

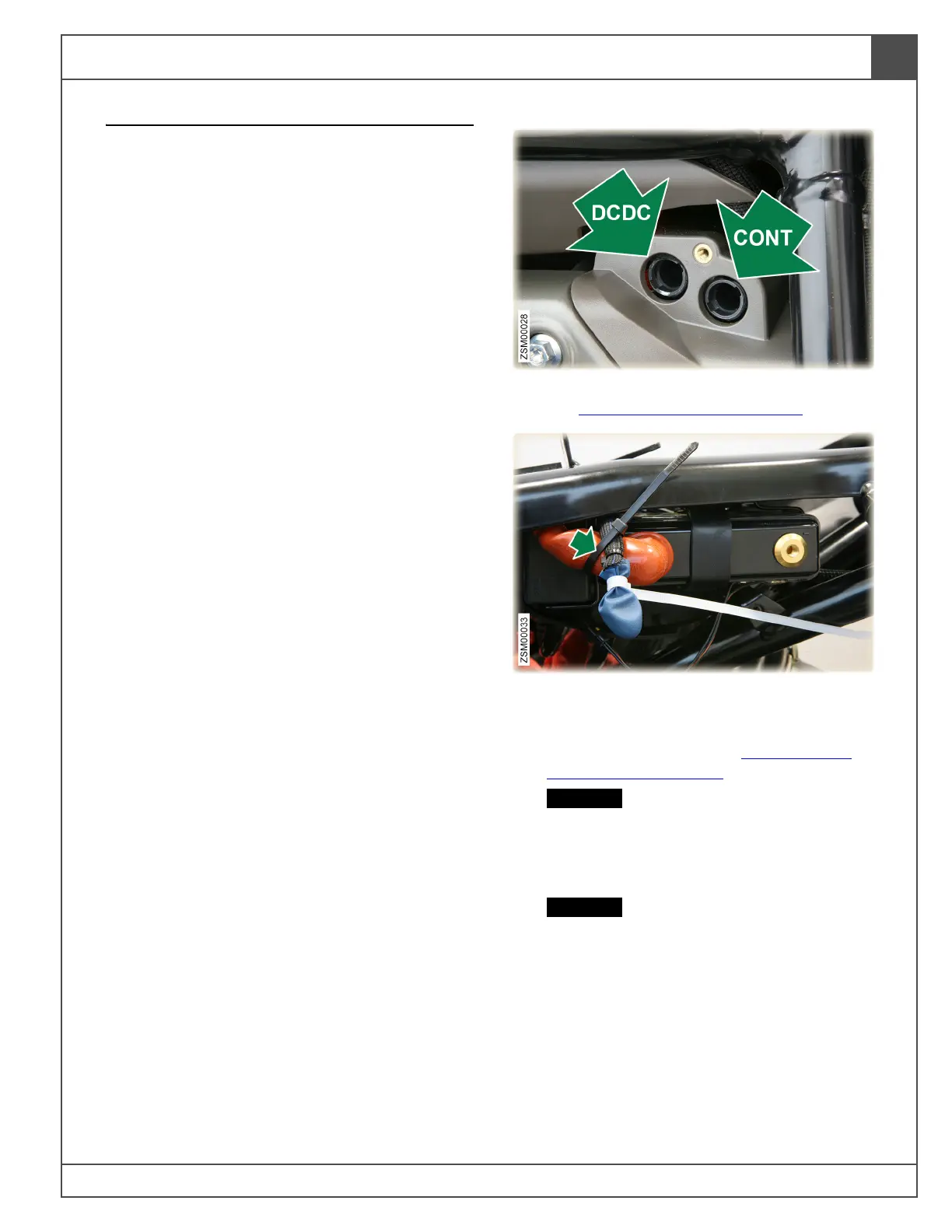

1. Remove high voltage DCDC and CONT fuses.
See High Voltage Fuses
, page 70.1.
2. Unbolt the negative battery terminal eyelet.
Cover eyelet with insulating material. Use
cable tie to secure negative battery wire to the
positive battery cable. See 12 Volt Battery
(Disconnect), page 70.3.
CAUTION: Cover/protect battery terminal
eyelet to reduce the risk of accidentally
contacting the negative battery terminal,
which can inadvertently power up the
12 volt system and damage components.
CAUTION: Secure battery terminal wire to
reduce the risk of arcing and damaging
electrical components.
