70-12 Lighting
Electrical
70

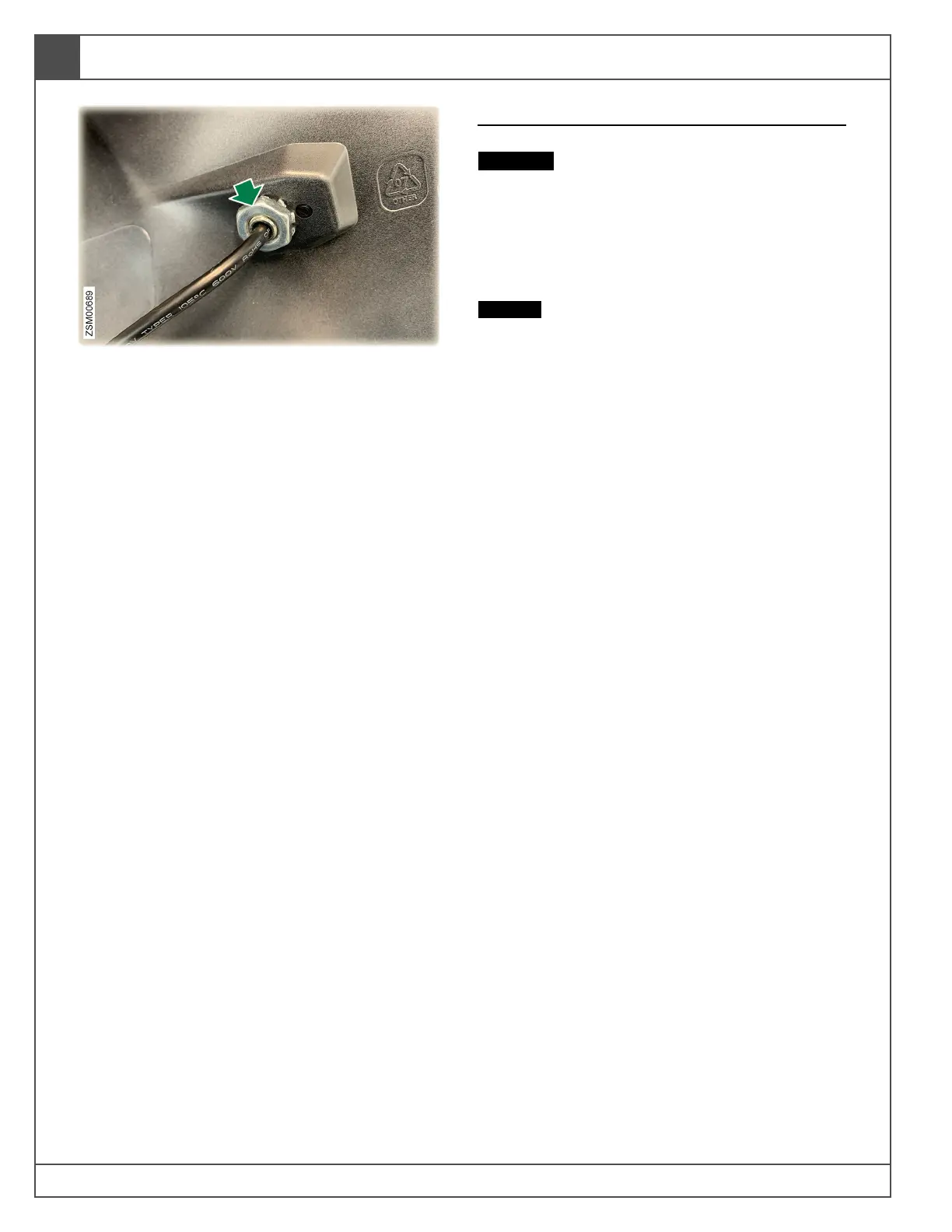

6. Remove nut securing left front turn signal to
the left outer side fairing and collect star
washer. Tool: 17mm wrench. Torque: 8 lb-ft
(11 Nm).
7. Remove left front turn signal.
Installation
1. Installation is the reverse of the removal
procedure.
Turn Signal (Right Front)
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Tools Required (includes tools required for
parent jobs):
• T25
• T30
• 2mm hex wrench
• 17mm combination wrench
• 3/16” standard screwdriver
• 10mm socket and ratchet
New Fasteners Required:
• Cable tie (quantity: 1)
To Next Page
