Body
Trim
60-1
60
Body
Trim

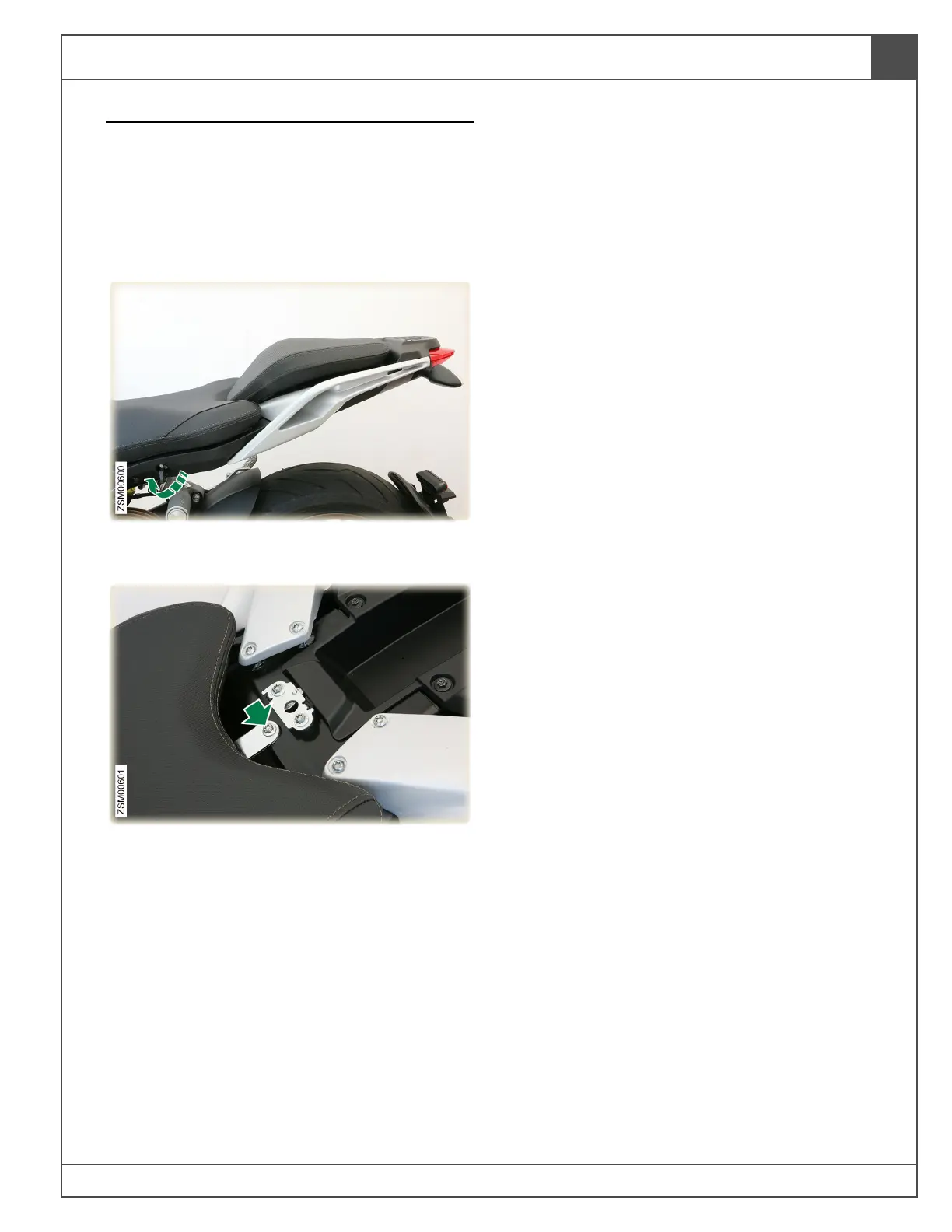

Rider’s Seat
Tools Required (includes tools required for
parent jobs)
:
•
T30
Removal
1.
Insert the key into the lock and turn it
clockwise to release the passenger seat.
2.
Remove bolt securing the rider’s seat. Tool:
T30. Torque: 8 lb-ft (11 Nm).
3.
Remove rider’s seat.
Installation
1.
Installation is the reverse of the
removal
procedure.
