60-32 Body
Body
60
Grab Handles (Right and Left)
Tools Required (includes tools required for
parent jobs):
• T25
• T30
• 10mm socket and ratchet
Removal
1. PERFORM LOCKOUT PROCEDURE:See
Lockout Procedure
, page 10.1.

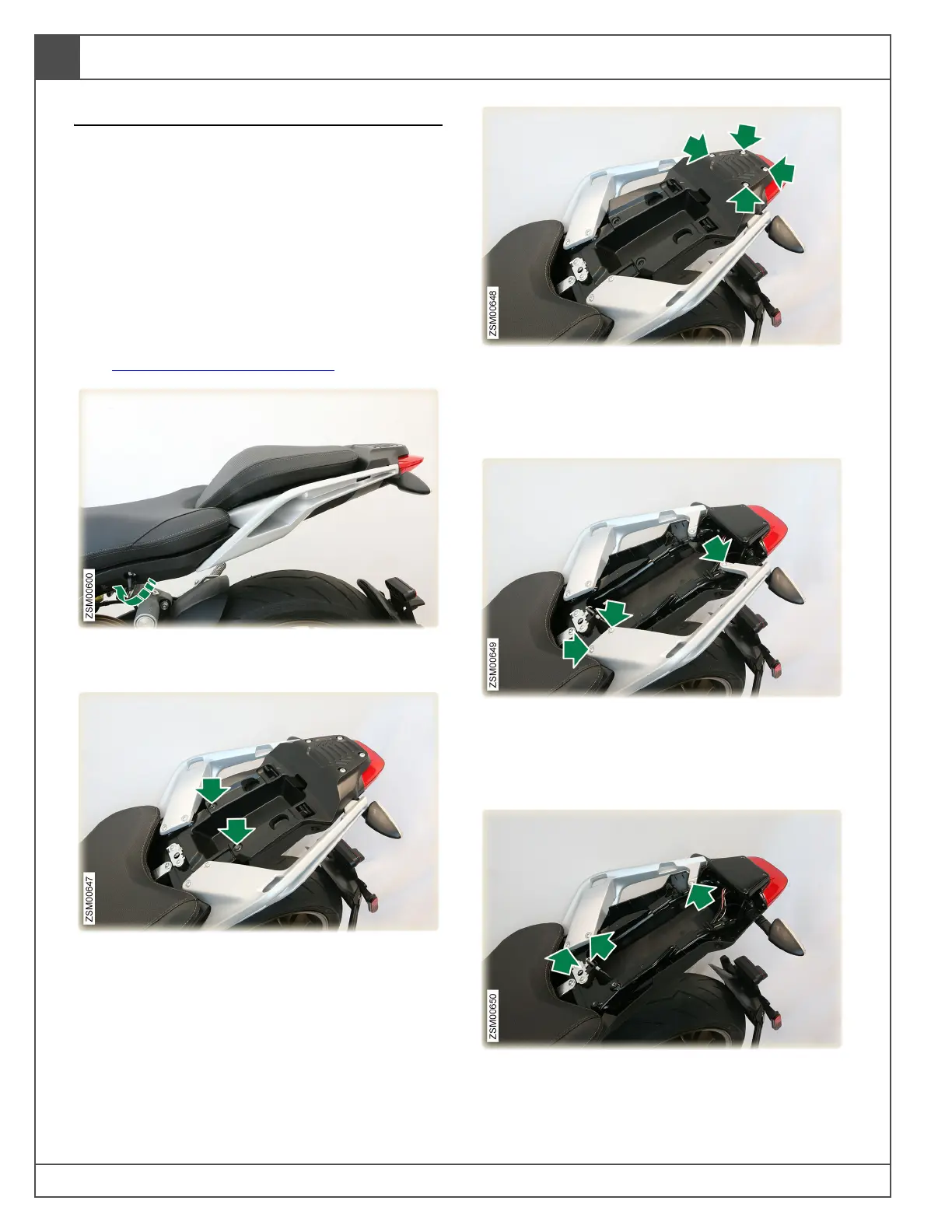

2. Insert the key into the lock and turn it
clockwise to release the passenger seat.
3. Remove bolts (x2) securing front of seat tray to
tail frame assembly. Tool: T25. Torque: 3 lb-ft
(4 Nm).
4. Remove bolts (x4) securing rear of seat tray to
tail frame assembly. Tool: T30. Torque: 5 lb-ft
(7 Nm).
5. Remove seat tray.
6. Remove bolts (x3) securing left grab handle to
tail frame assembly. Tool: T30. Torque: 7 lb-ft
(9.5 Nm).
7. Remove left grab handle.
8. Remove bolts (x3) securing right grab handle
to tail frame assembly. Tool: T30. Torque:
7lb-ft (9.5 Nm).
To Next Page
