Power Pack
Power Pack 20-39
20

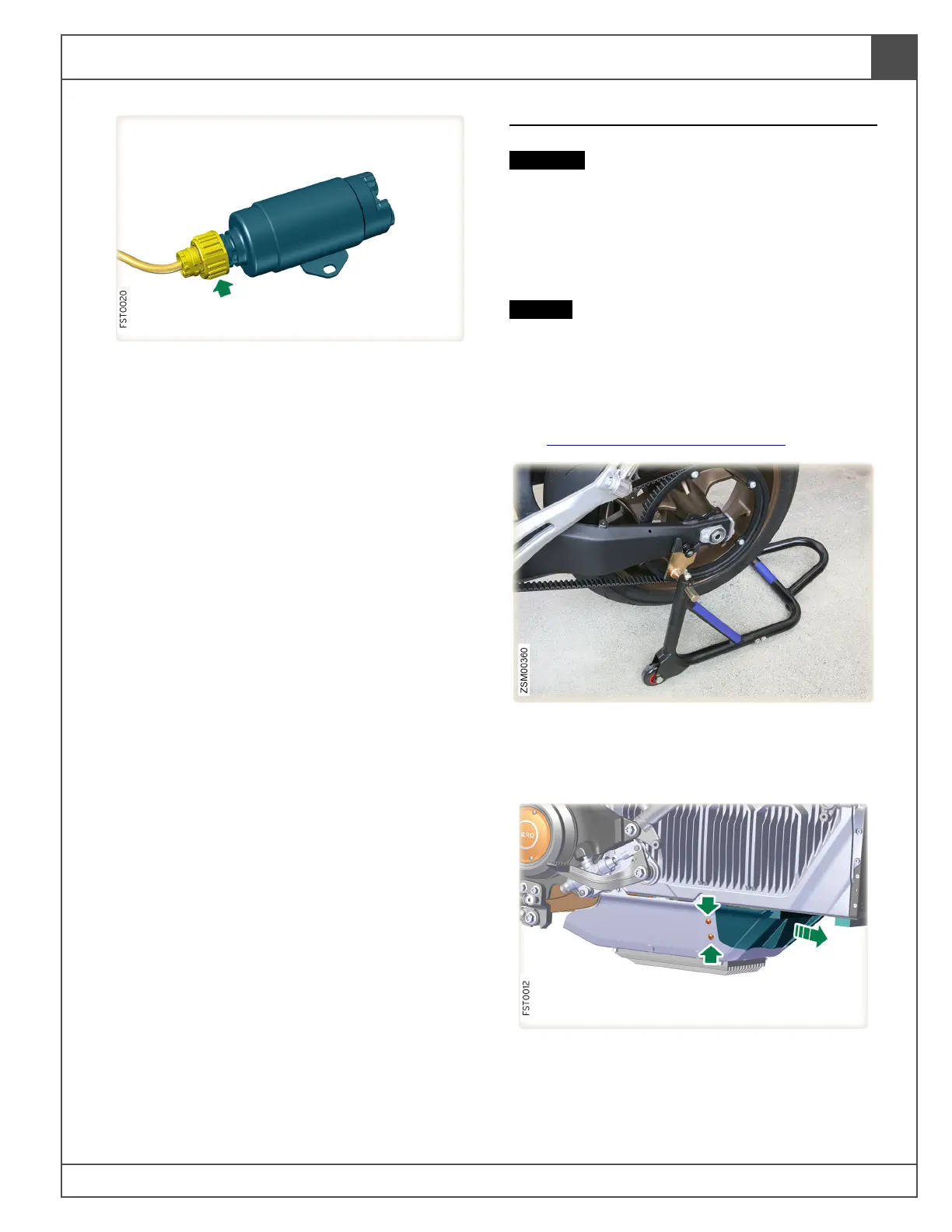

4. Disconnect harness connector.
5. Remove contactor.
Installation
1. Installation is the reverse of the removal
procedure.
Controller BUS Set [22MY Onwards]
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Removal
1. Remove left and right inner side fairings. See
Side Fairings (Inner), page 60.19.
2. Safely support the motorcycle by using a
motorcycle stand.
3. Remove lower body panel.
4. Remove 3 mm Allen bolts (x4) securing
access panel to controller carrier.
