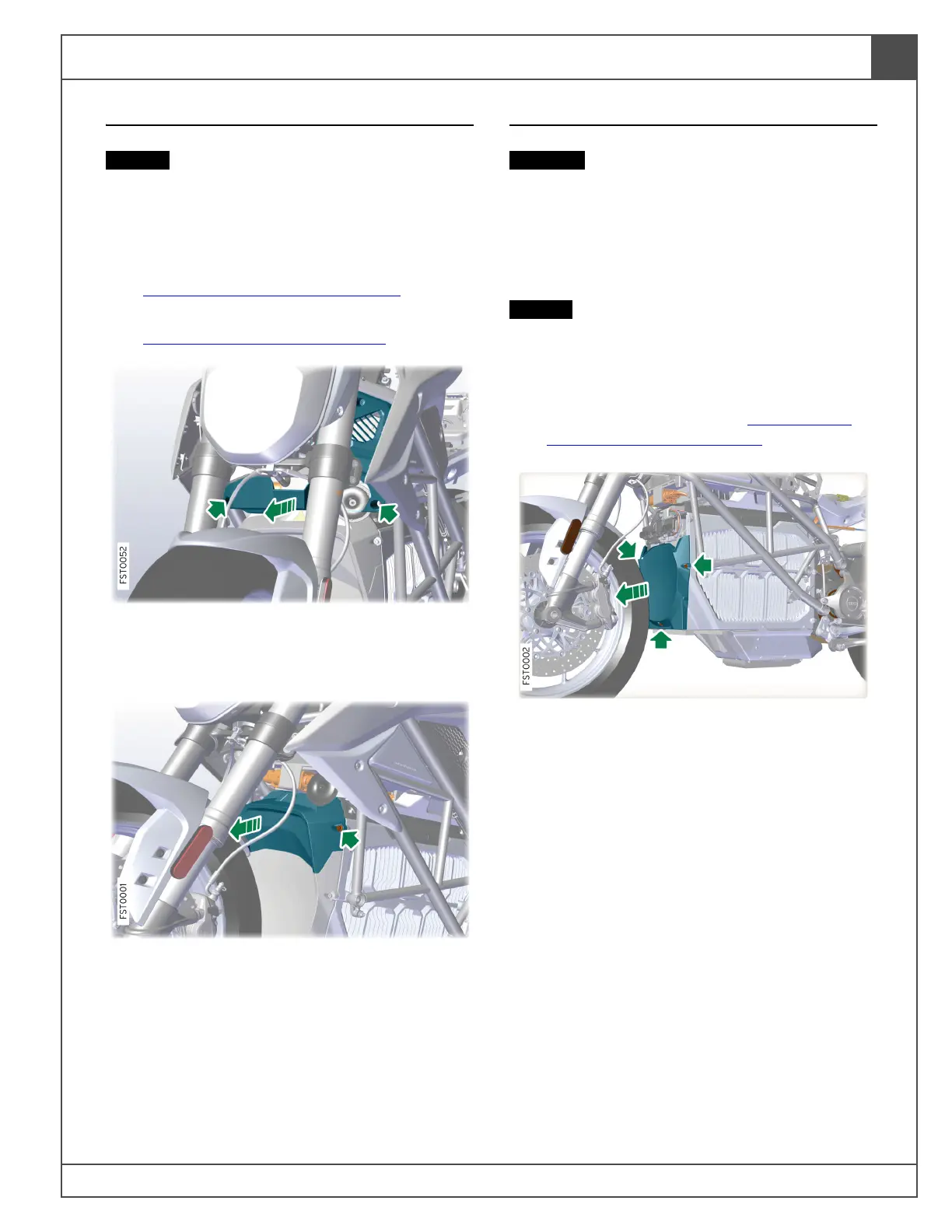

Service Cover [22MY Onwards]
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Removal
1. Remove headlight upper fairing. See
Headlight Upper Fairing, page 60.2.
2. Remove left and right outer side fairings. See
Side Fairings (Outer), page 60.14.
3. Remove HCU cover bolts (x4). Torque 3.5 lb-ft
(5 Nm).
4. Remove HCU cover.
5. Remove T25 bolts (x2) securing service cover
to battery unit. Torque 2.5 lb-ft (3.5 Nm).
6. Remove service cover.
Installation
1. Installation is the reverse of removal
procedure.
Front Cover [22MY Onwards]
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Removal
1. Remove service cover. See Service Cover
[22MY Onwards], page 20.31.
2. Remove T25 bolts (x3) securing front cover to
battery unit. Torque 2.5 lb-ft (3.5 Nm).
3. Remove front cover.
Installation
1. Installation is the reverse of removal
procedure.
