Brake Pads (Rear)
CAUTION: Do not operate the brake lever while
the master cylinder, and or brake caliper(s) is/
are removed or while the brake system is
disassembled.
Tools Required (includes tools required for
parent jobs):
• T25
Removal

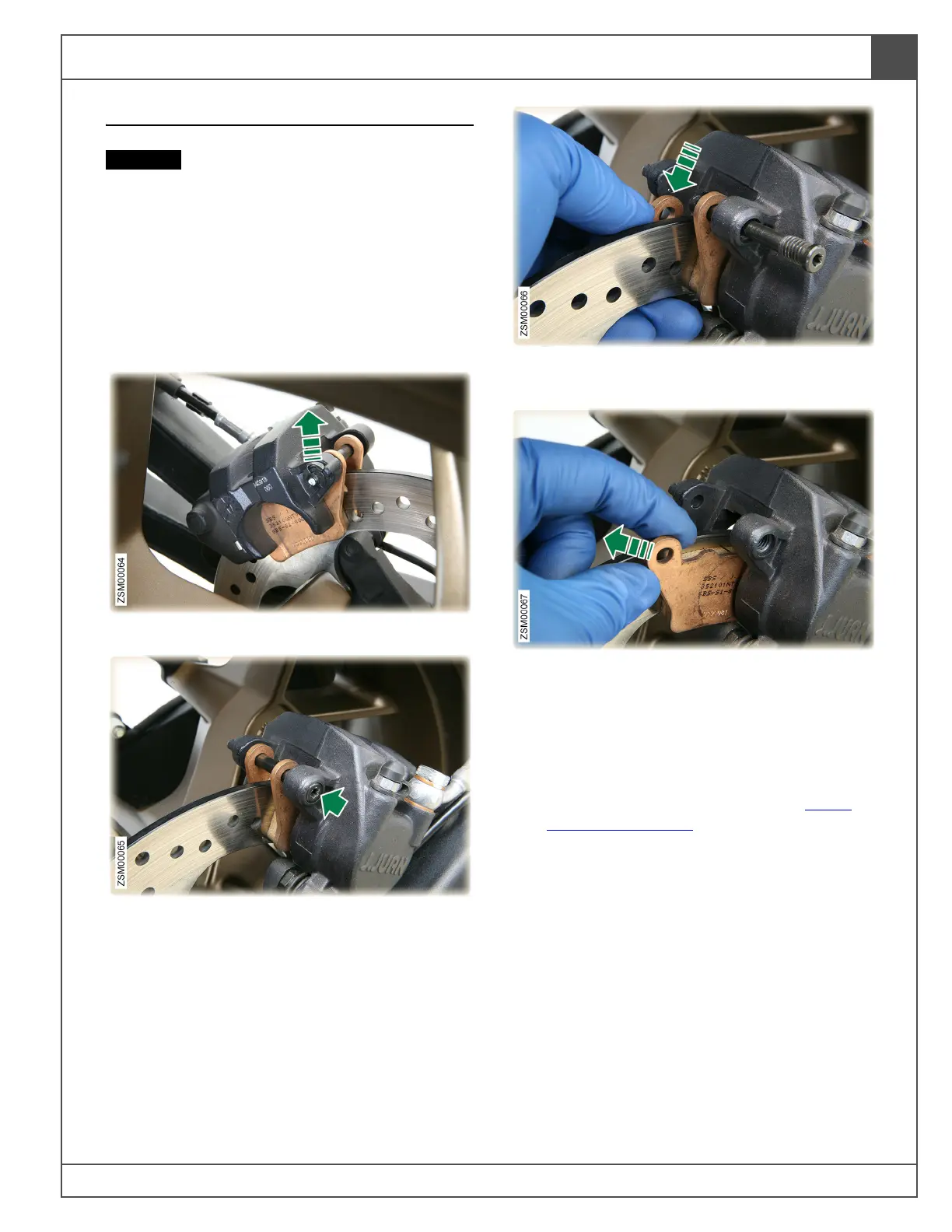

1. Remove rear brake caliper pin retaining clip.
2. Remove rear brake caliper pin bolt. Tool: T25.
Torque: 6 lb-ft (8 Nm).
3. The eyelet end of the brake pads need to drop
in order to release it from the caliper.
4. Remove both rear caliper brake pads.
Installation
1. Installation is the reverse of the removal
procedure.
2. After installing new brake pads, perform the
brake pad bedding procedure. See Brake
Bedding, page 10.7.
