Brake Rotor (Front)
Tools Required (includes tools required for
parent jobs):
• T25
• T30
• T40
• T50
• 3/16” standard screwdriver
• 2mm hex wrench
• 10mm socket and ratchet
• 13mm socket
• Ratchet straps (x2)
• Hoist
New Fasteners Required:
• Cable ties (quantity: 2)

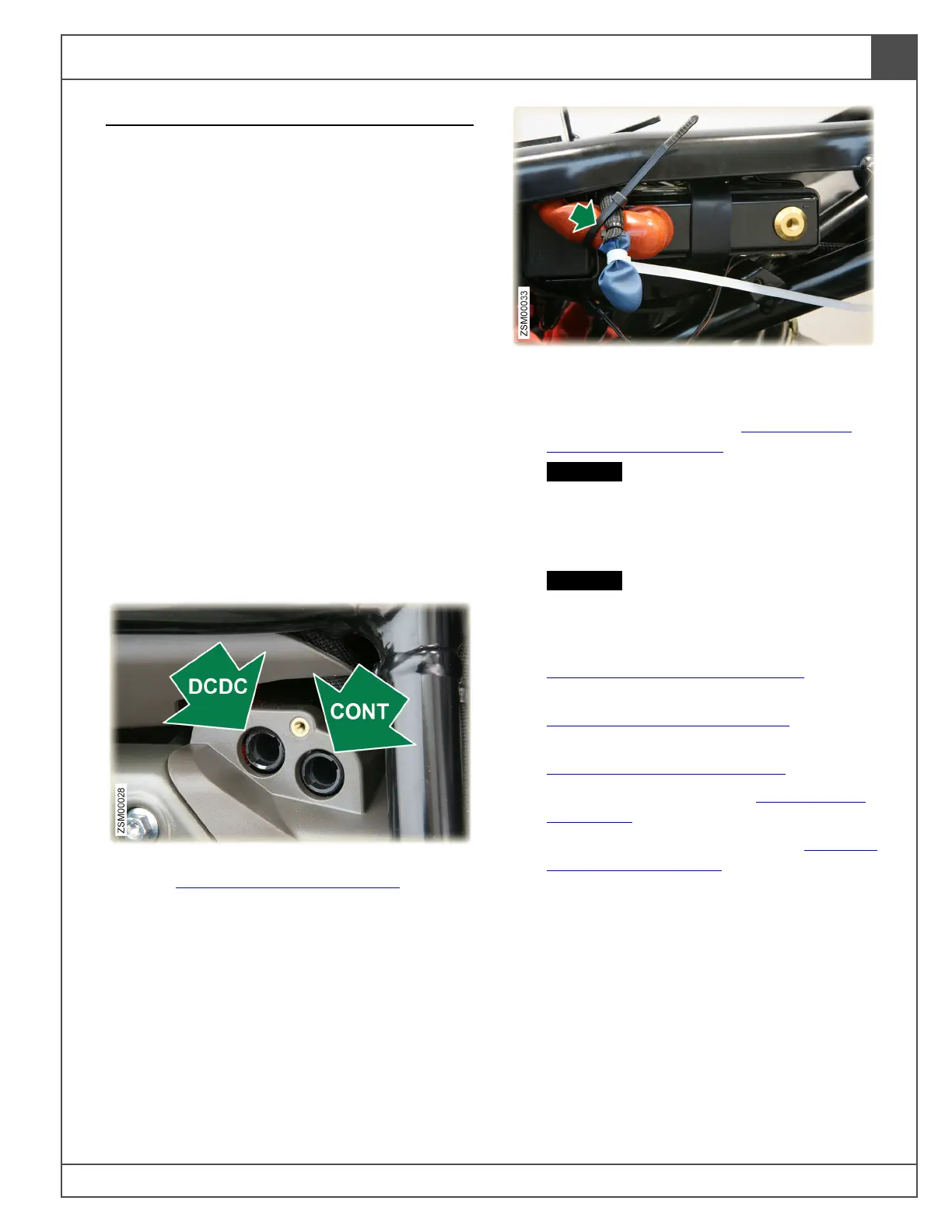

Removal
1. Remove high voltage DCDC and CONT fuses.
See High Voltage Fuses
, page 70.1.
2. Unbolt the negative battery terminal eyelet.
Cover eyelet with insulating material. Use
cable tie to secure negative battery wire to the
positive battery cable. See 12 Volt Battery
(Disconnect), page 70.3.
CAUTION: Cover/protect battery terminal
eyelet to reduce the risk of accidentally
contacting the negative battery terminal,
which can inadvertently power up the
12 volt system and damage components.
CAUTION: Secure battery terminal wire to
reduce the risk of arcing and damaging
electrical components.
3. Remove headlight upper fairing. See
Headlight Upper Fairing
, page 60.2.
4. Remove left and right outer side fairings. See
Side Fairings (Outer)
, page 60.14.
5. Remove left and right inner side fairings. See
Side Fairings (Inner)
, page 60.19.
6. Remove tank assembly. See Tank Removal,
page 60.10.
7. Remove headlight inner fairing. See Headlight
Inner Fairing, page 60.3.
