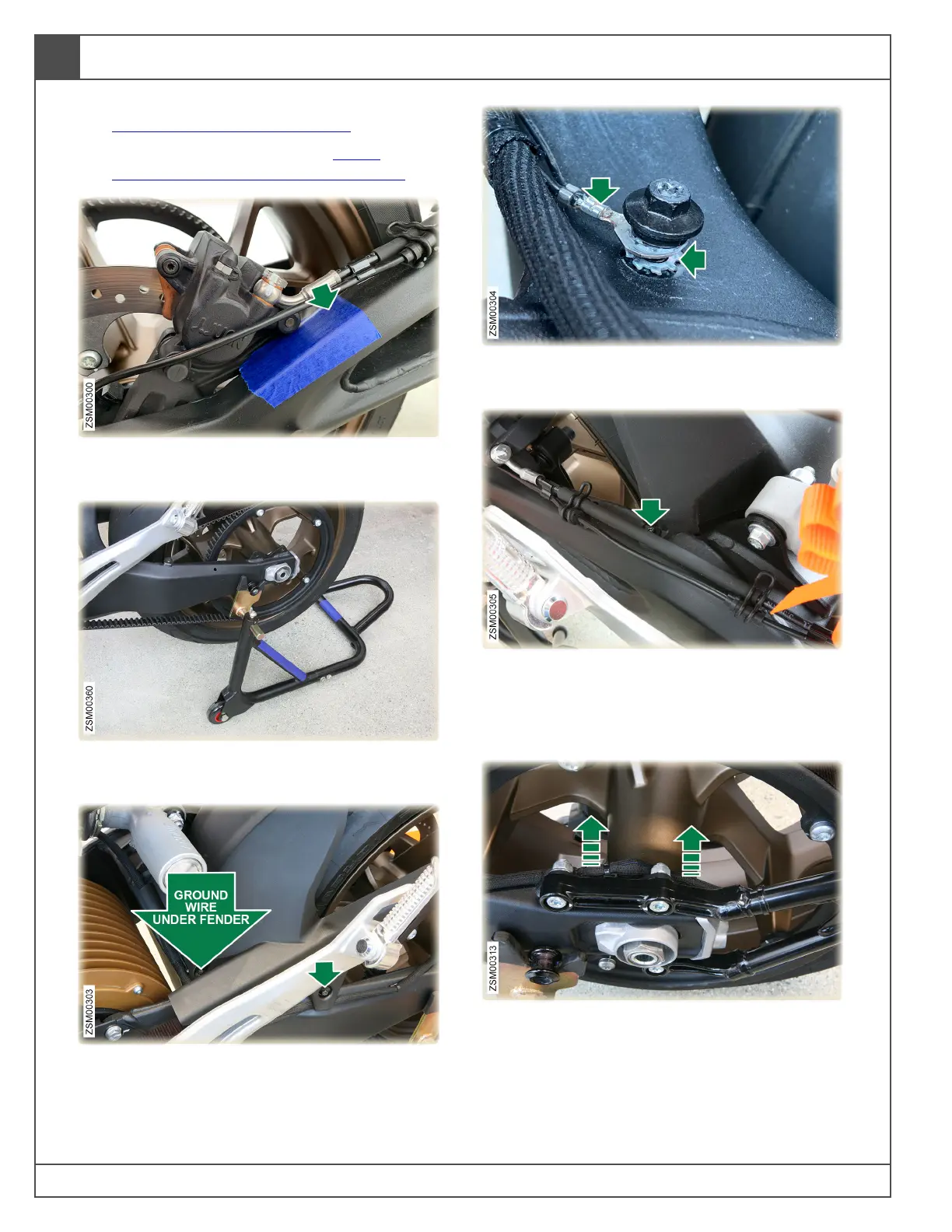

6. Remove left and right inner side fairings. See
Side Fairings (Inner)
, page 60.19.
7. Remove motor controller. See Motor
Controller [Before 2022MY], page 30.27.
8. Tape the swingarm to keep the brake caliper
from damaging the painted surfaces.
9. Safely raise rear tire off the ground using a
motorcycle stand.
10. Remove bolts (x2) securing the rear inner
fender to the rear swingarm. Tool: T25.
Torque: 3.5 lb-ft (5 Nm).
11. Center bolt secures the rear shock ground
wire eyelet and star washer underneath it.
12. Remove bolt securing the rear inner fender to
the rear swingarm. Tool: T25. Torque: 3.5 lb-ft
(5 Nm).
13. Remove the rear inner fender.
14. Rotate tucked license plate harness up to gain
access to cable ties.
Note: Neatly tuck harness back in place during
reinstallation process to protect harness from
damage while riding.
