Front drive axle control leve
PTO shaft drive engagement lever
PTO shaft revolutions 540 and 1000 rpm shifting lever
Battery disconnector

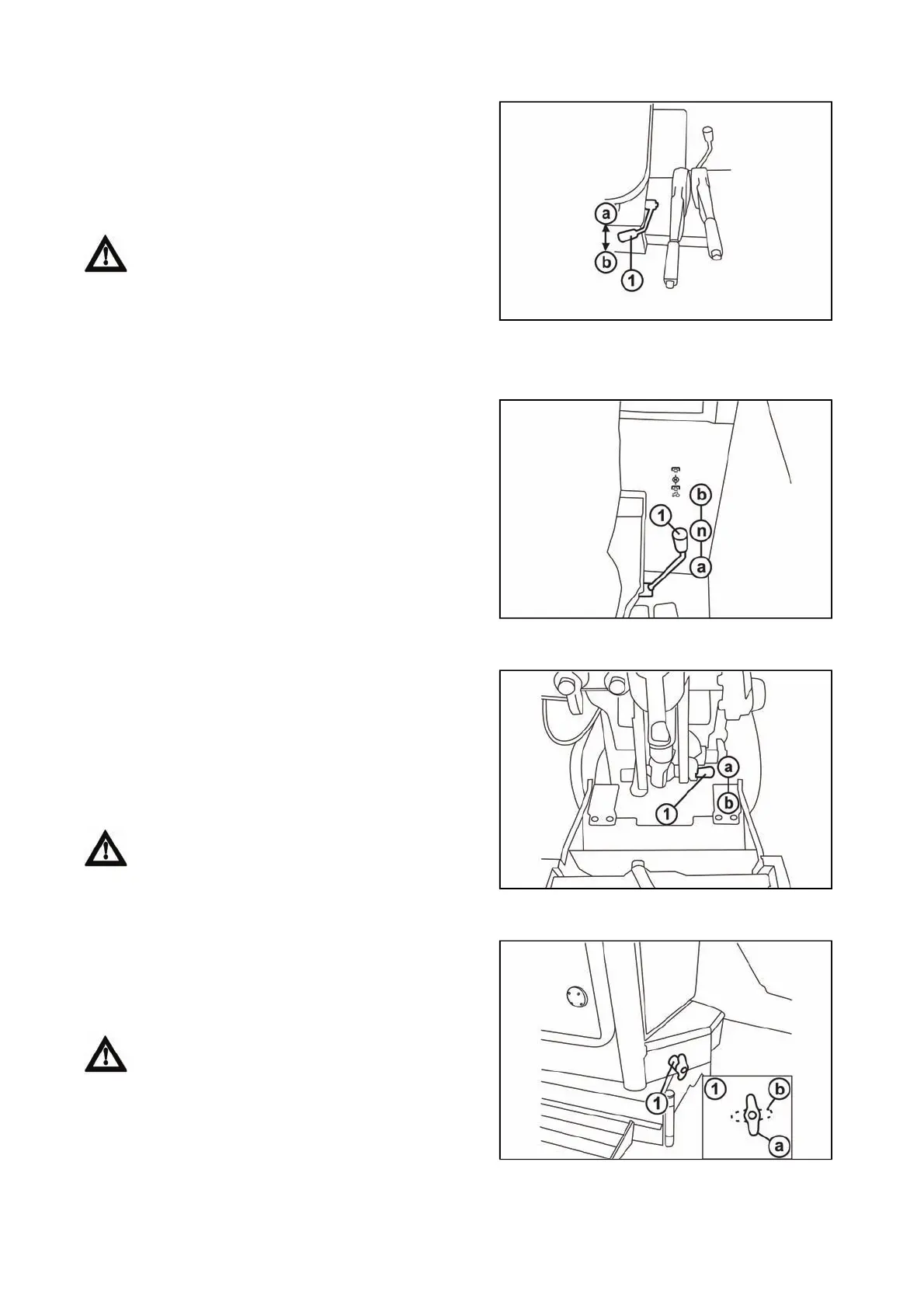

Front drive axle engagement is done by a lever (1) located
on the left side of driver's seat.
a - Front drive axle disengaged
b - Front drive axle engaged
Engage front drive axle with standing tractor.
Use front drive axle with rear wheels slip to
enhance the pull of tractor. When driving with front
drive axle engaged on the road and hard surface the
maximum permitted speed is 15 km/h. Driving with
engaged front drive axle causes increased front tires
wear.
NM13N048
Rear PTO shaft is engaged by a lever (1) placed on the
left side of drive's seat.
a - Dependent revolutions of PTO shaft drive through gear
box - revolutions are dependent on the engaged gear
n - neutral position
b - Independent revolutions of PTO shaft drive -
revolutions are dependent on engine revolutions
Gear shifting is done with a tractor at standstill and
engaged manual clutch lever.
NM13N004
Shifting 540 or 1 000 revolutions of rear PTO shaft is done
with the lever (1) placed from the outside of the tractor
above the rear PTO shaft.
a - 1 000 rpm
b - 540 rpm
Gear shifting is done with the lever of PTO shaft drive
engagement in (n) position.
PTO shaft revolutions and the type of endpoint
need to be selected dependent on the prescribed
revolutions of the aggregated machine.
NM13N005
Battery disconnector (1) is placed on the right side of the
tractor in front of the cab.
a - Battery is connected
b - Battery is disconnected
With longterm dead parking, repairs, a failure,
or accident, disconnect the battery immediately by
battery disconnector.
NM13N049
ACQUAINTANCE WITH THE TRACTOR
