Fixed and free position of lower hydraulic draw bars
Limiting draw bars
Upper draw bar

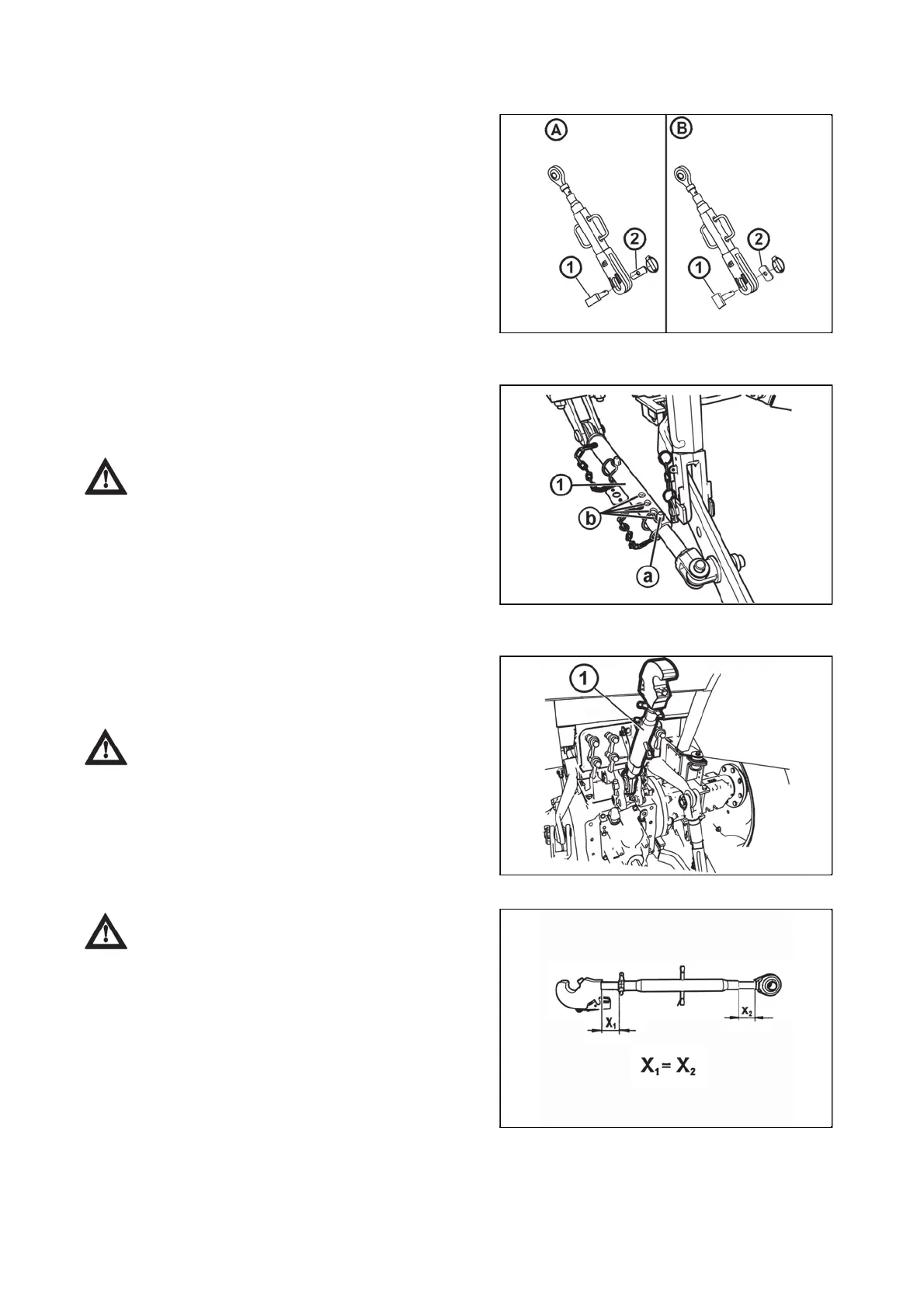

Fixed position of lower draw bars of hydraulics fig. (A):
The head of the pin (1) and a pad (2) are mounted
horizontally.
Free position of lower draw bars of hydraulics fig. (B):
The head of the pin (1) and a pad (2) are mounted
vertically.
Free position enables free connection of a tractor and
agriculture tools. Both ends of draw bars can in this case
move freely vertically one against another.
E454
Limiting draw bars (1) limit, or completely exclude side
swing of lower draw bars.
The adjustment of left and right limiting draw bar is done
by inserting a peg and to some of the holes (b).
Both limiting draw bars must be mounted at all
times.
NM13N054
Upper draw bar (1) is horizontally adjustable. It is
connected to a tractor to one of the four holes of the
bracket, which transfer the power from the connected
tools to torque rod in the cover of regulation hydraulics.
When transporting the tools, it is necessary to
relocate upper draw bar to holes (c), so that overload
of kinematic system of lifting hydraulics, or the fall of
the connected machine.
NM13N055
When prolonging an upper draw bar, it is
necessary to mind both joints to be unscrewed from
the tube of the draw bar to the same length.
NM13N056
