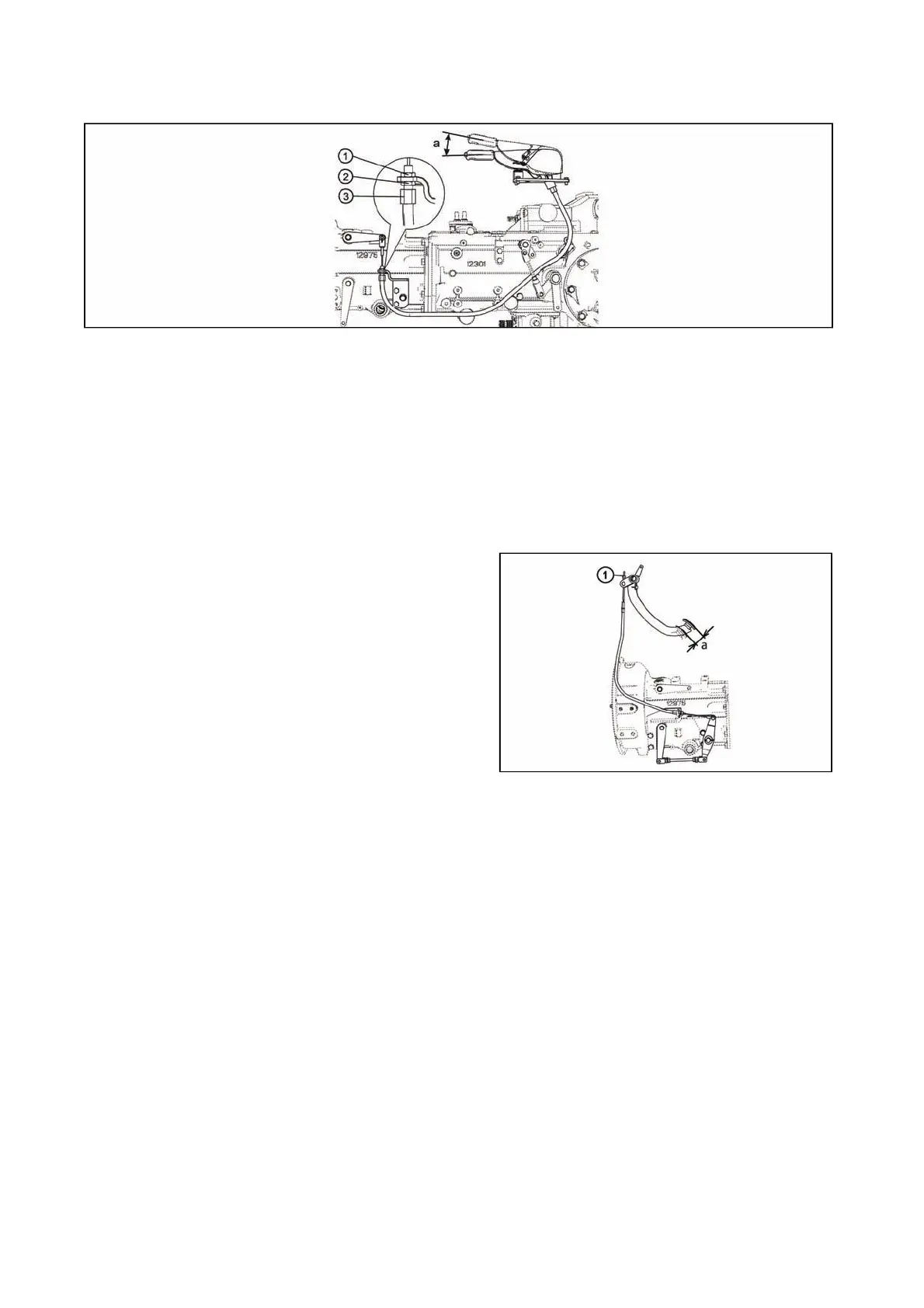

P.T.O. shaft clutch control lever adjustment
NM13N114
Free run adjustment of PTO shaft clutch control lever (a) is done by changing the length of control Bowden.
After releasing the locking nut (1) set the length of Bowden by turning the nut (2). After setting the length of
Bowden, tighten the locking nut (1).
With adjustment hold the Bowden bolt (3), to prevent its turning together with adjustment nut (2).
Free run of PTO shaft clutch control lever (a) must be 25 to 35 mm.
The track of lever between the lower lever position and the point when the control force on lever increases is
the free run of PTO shaft clutch control lever.
Adjusting clutch pedal
Adjusting free run of clutch pedal (a) is done by changing
the length of Bowden (1).
Clutch pedal free run (a) must be 25 to 35 mm.
Free run of clutch pedal represents the track of pedal
between the upper position of clutch pedal and the point
when control force on the clutch pedal increases.
NM13N113
