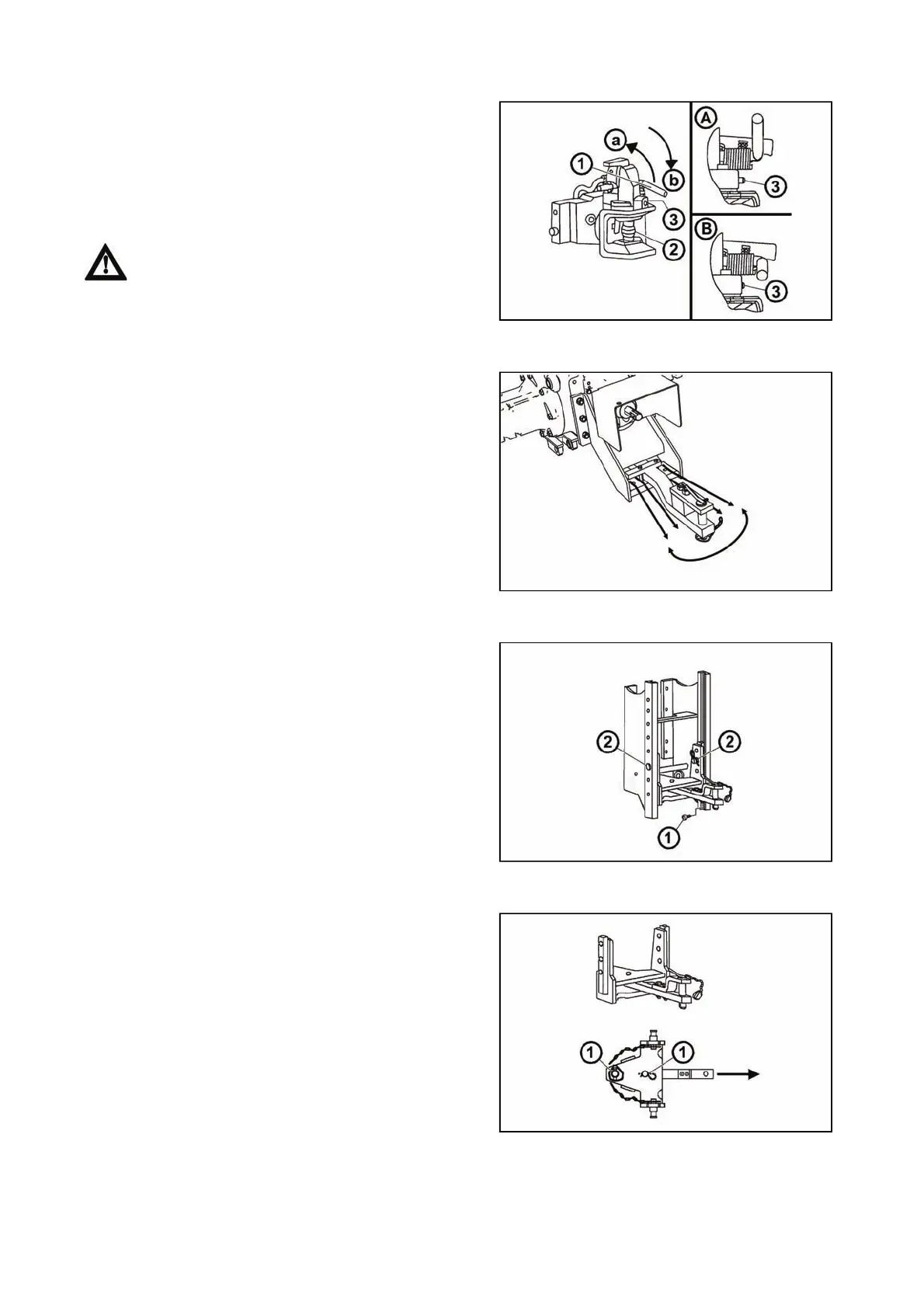

Automatic mouth of the CBM stage hitch
Swing drawbar
Modular suspension system for trailers and semitrailers
Swing drawbar bracket module
When the lever (1) is moved in the direction of the arrow
(a), the pin (2) is retracted to the upper position, which is
signalled by the extended indicator (3), see fig. (A). When
the mouth gets onto the shaft lug, the pin will automatically
slide into the lug of the connected trailer. You can lower
the hitch pin (2) manually by moving the lever (1) in the
arrow (b) direction. The insertion of the pin is signalled by
the retracted indicator (3), see fig. (B).
After the attachment of the trailer you must
always check whether the indicator (3) is retracted in
accordance with fig. (B).
E304
The draw rod can transversely be set to five positions.
You fix it in a given position using a clip.
NM14D043
1. Demount locking screw (1)
2. Secure the module against drop, unlock and demount
pins (2)
3. Protrude the module from the bracket in downward
direction
Proceed reversely with assembly.
NM13N064
Swing drawbar bracket module is placed in the bracket of
multistage suspension.
Swing drawbar
Disassembly:
1. Unlock and demount pins (1)
2. Protrude swing drawbar in the direction of an arrow
Proceed reversely with assembly.
E306
