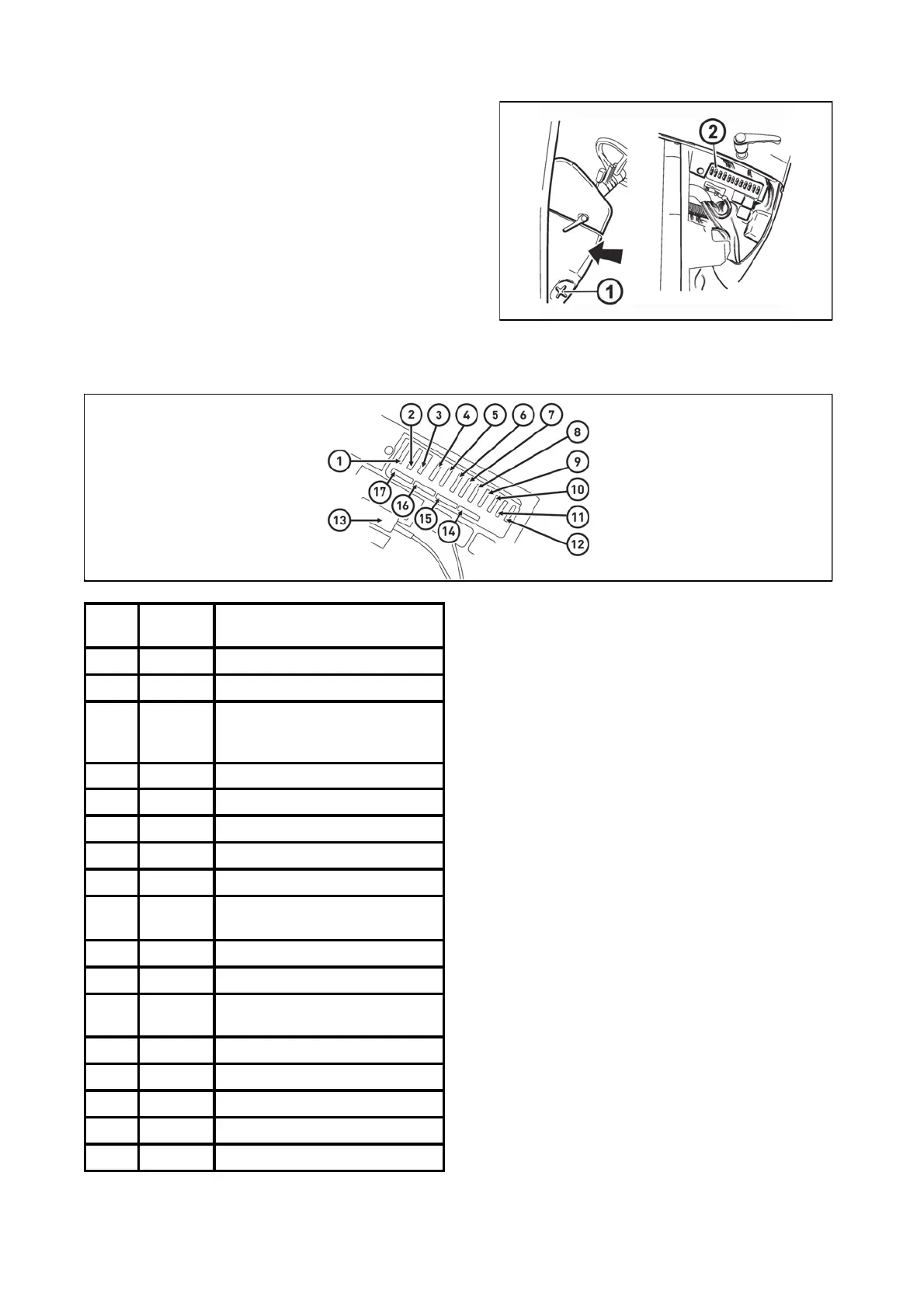

Fuse box
Placement of fuses in fuse box
Is accessible after removing the left lid of the steering
bracket. Lid can be removed after unscrewing the screw
(1).
Fuses (2) are knife-blade-contact and with replacement it
is necessary to keep the prescribed value of the fuse. With
repeated interruption, search for the nearest service.
NM13N078
Pos. Size of
fuses
Protected system
1 15A Direction lights
2 15A Brake lights
3 20A Ignition relay, dashboard
feeding, start blocking,
recirculation
4 15A Headlights with control
5 15A Left side lights
6 15A Right side lights
7 10A Right dimmed headlight
8 10A Left dimmed headlight
9 15A Radio, washer, beacon, cab
lighting
10 15A Working headlights in roof
11 15A Heating
12 20A Air condition, front and rear
washer,
13 80A Ignition
14 Free
15 Free
16 25A Fuel delivery pump
17 30A Engine control unit
