ABB A200-L User Manual

Operation Manual / A200-L
9 Disassembly and assembly / 9.19 Fitting the diffuser
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
9.19 Fitting the diffuser

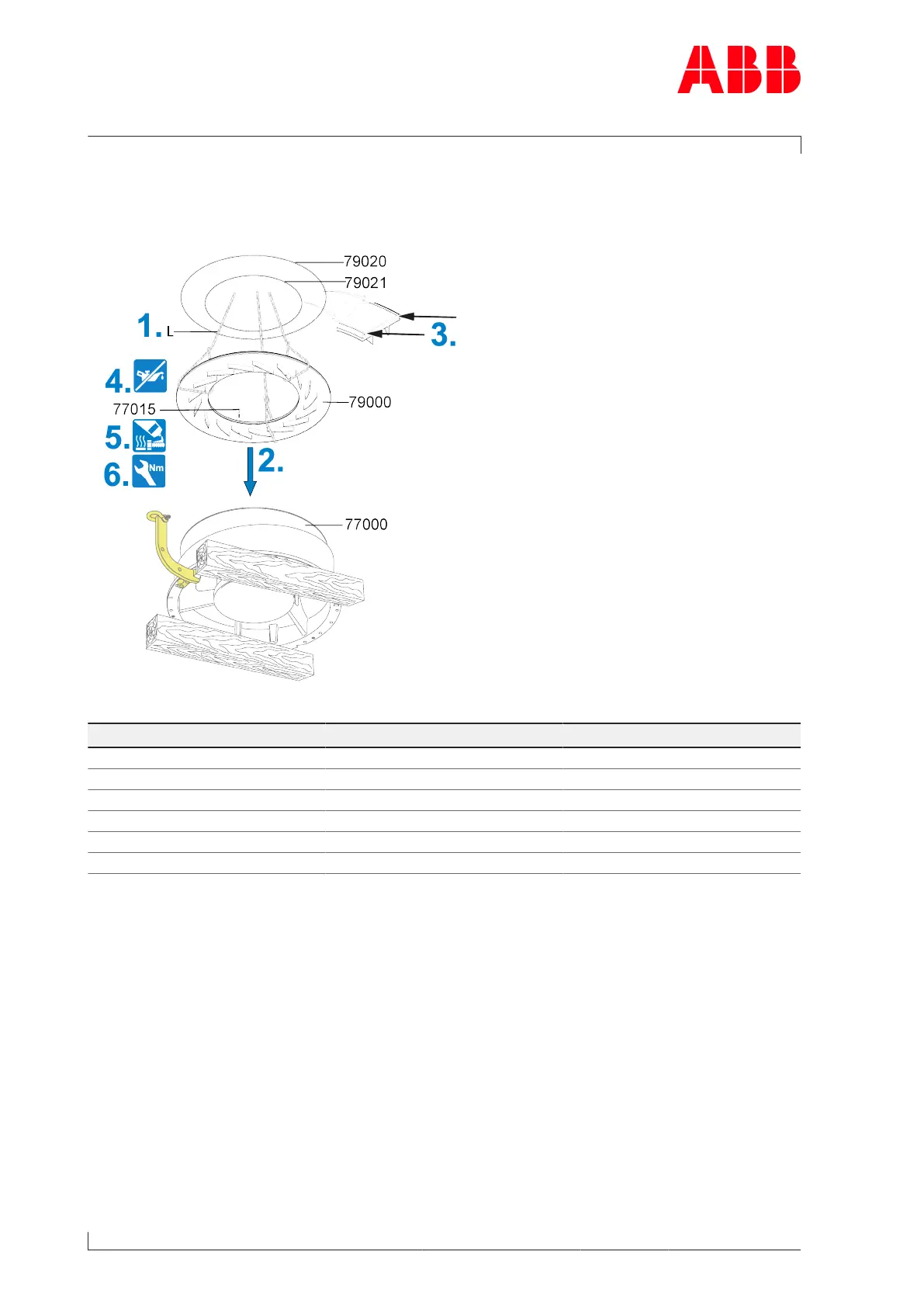

Fig.58: Fitting the diffuser
Product Size Tightening torque [Nm]
A255-L M5 6
A260-L M5 6
A265-L M5 6
A270-L M6 10
A275-L M8 25
A280-L M8 25
Table39: Tightening torque (77015)
1. Attach lifting gear (L) to the diffuser(79000).
2. Carefully place the diffuser on the wall insert(77000), then remove lifting gear.
3. Fit new O-rings(79020, 79021) on the diffuser.
4. Degrease screws(77015) and threaded holes in wall insert.
5. Coat threads of the screws with Loctite® 542.
6. Fit screws.
Page 100 / 145
