Operation Manual / A200-L

9 Disassembly and assembly / 9.6 Dismantling wall insert and diffuser

9.6.2 Dismantling the diffuser

WARNING

Support for the wall insert

The support may slip away when the wall insert is placed on flangeF.

Any defective or improperly used supports can lead to serious injury to per-

sonnel and even to fatal accidents.

u Check the position of the support and correct if necessary.

WARNING

Risk of tipping

If the wall insert is not tilted, it must be put down correctly. Tipping of the

wall insert may lead to serious injuries to persons or even to fatal accidents.

u If the wall insert is not tilted, ensure that it is fixed correctly (see Dis-

mantling wall insert).

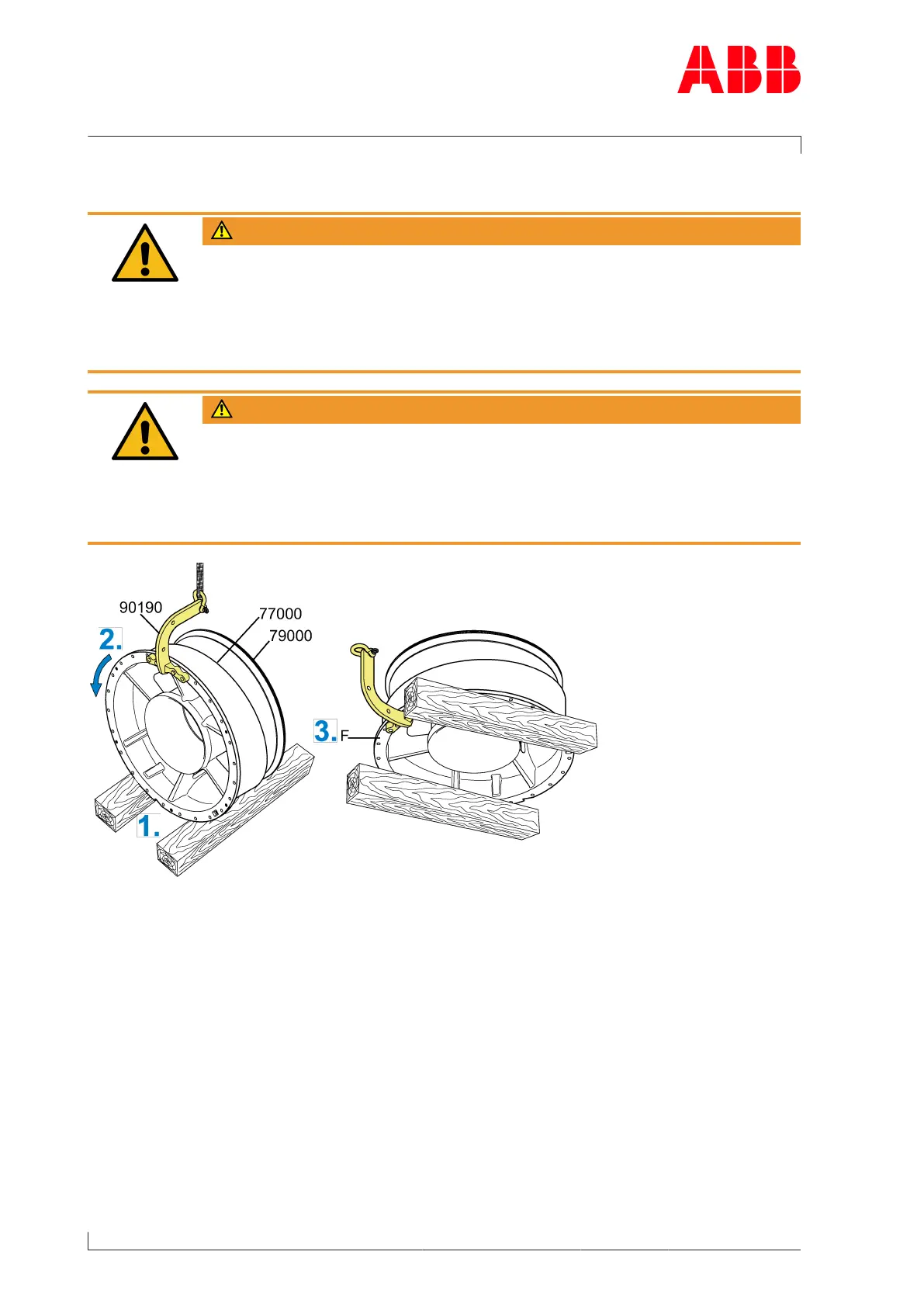

Fig.41: Putting down wall insert

1. Put wall insert (77000) down on suitable supports.

2. Tilt wall insert(77000) with diffuser(79000) against lifting device(90190).

3. Place wall insert with the flange (F) on the underlay.

Page 84 / 145
