9.5 Dismantling the filter silencer
9.5.1 Design variants
The turbocharger is equipped with one of the following filter silencer variants:
¡ Welded filter silencer
¡ Cast filter silencer
The filter silencers differ in terms of the fixing eyelets for the lifting gear. The relevant vari-
ant must be taken into consideration for disassembly and assembly.
9.5.2 Dismantling the filter silencer (welded)
u Dismantle the insulation if necessary.

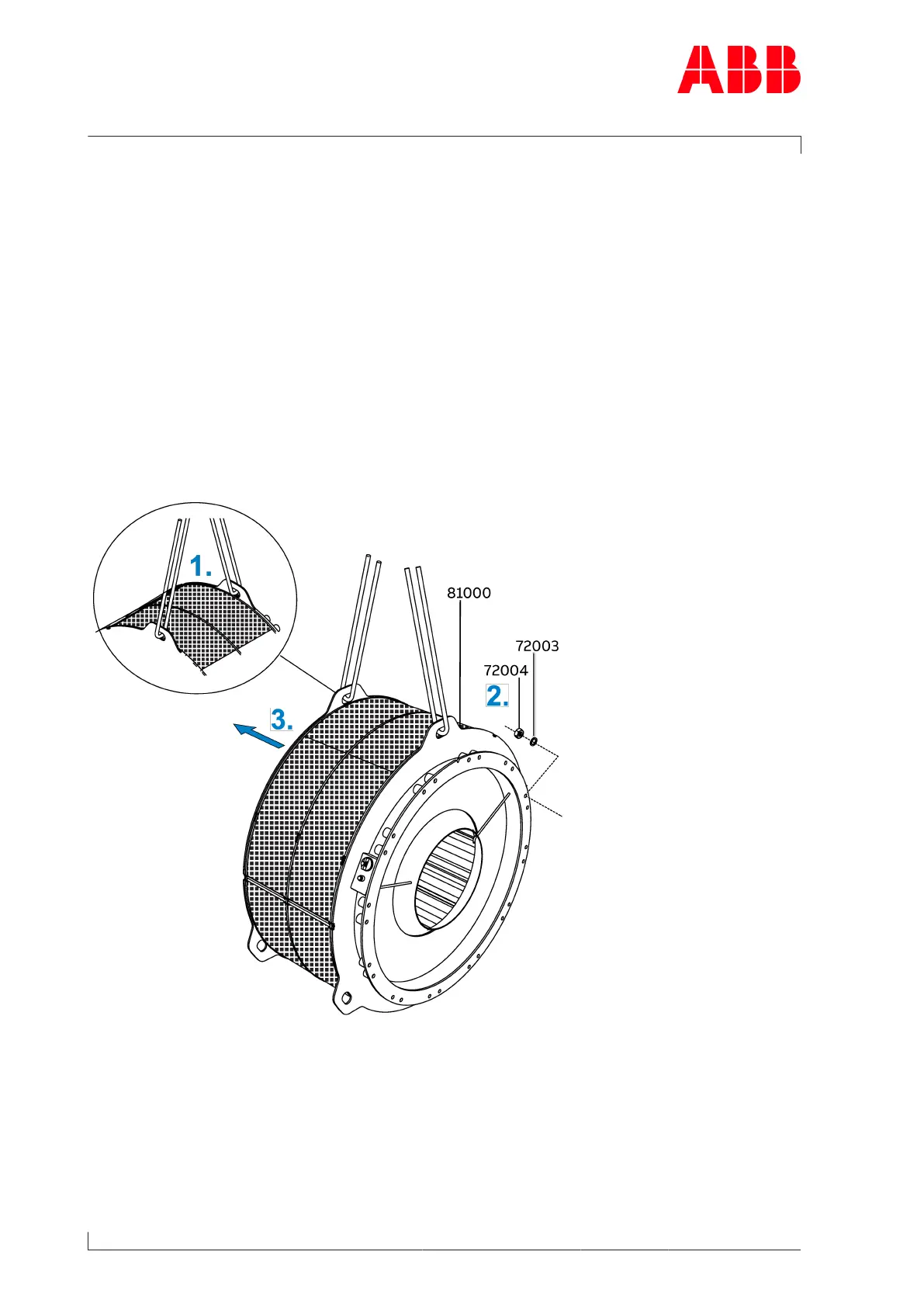

Fig.33: Dismantling the filter silencer
1. Attach lifting gear to the eyelets of the filter silencer (81000).
2. Loosen nuts (72004) and remove with washers (72003).
3. Remove and put down filter silencer.
