ABB A200-L User Manual

Operation Manual / A200-L
9 Disassembly and assembly / 9.4 Disassembly and assembly of the fil-
ter silencer casing
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021

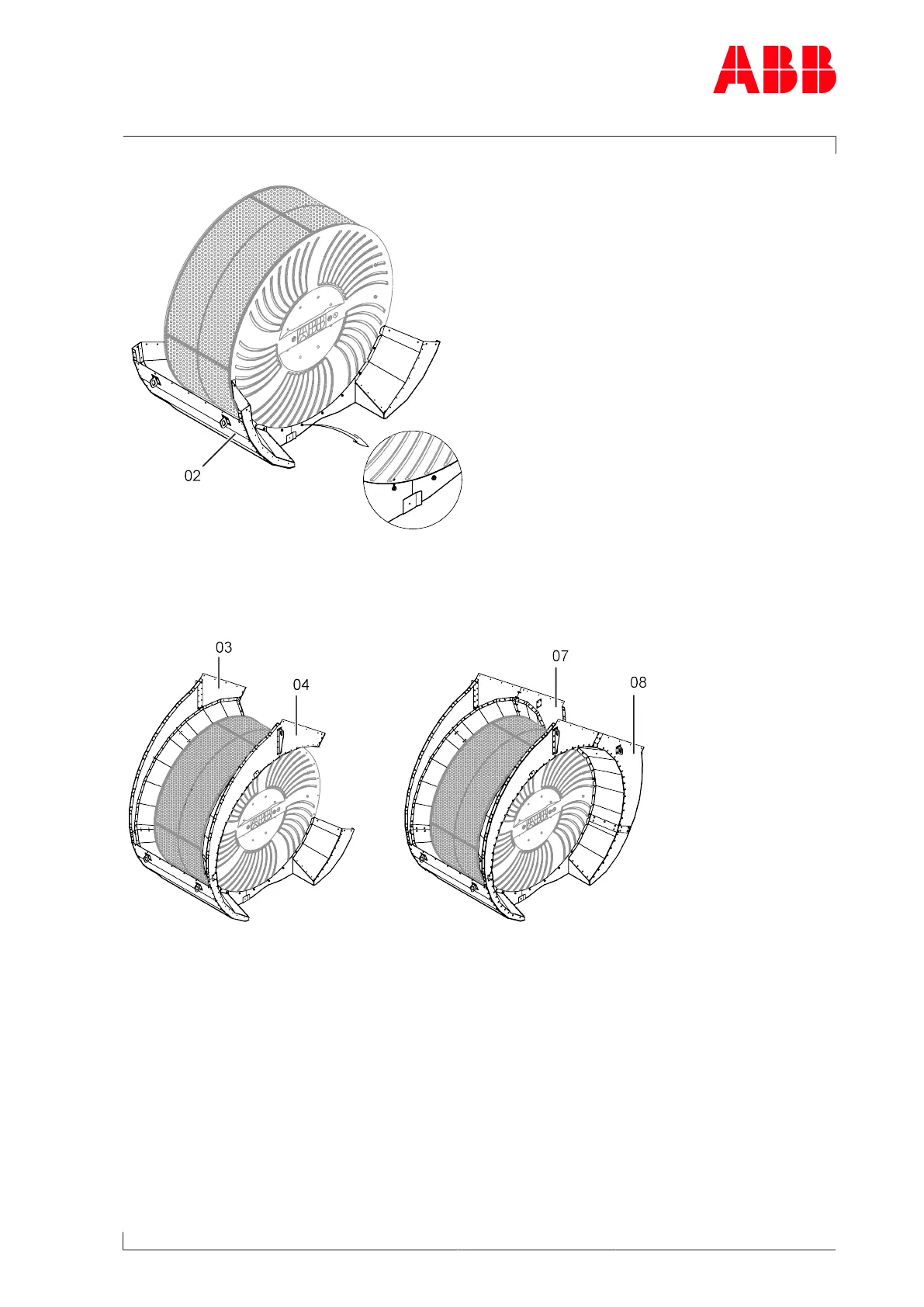

Fig.28: Fitting the filter silencer casing
u Fit the bottom part(02) with the screws on the filter silencer.
Fig.29: Fitting the filter silencer casing
u Fit the side parts(03) and (04) with the screws on the filter silencer and on the bottom
part.
u Fit the side parts(07) and (08) with the screws on the filter silencer, on the bottom part,
and on the side parts(03, 04).
Page 75 / 145
