ABB A200-L User Manual

Operation Manual / A200-L
9 Disassembly and assembly / 9.5 Dismantling the filter silencer
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
9.5.3 Dismantling the filter silencer (cast)
u Dismantle the insulation if necessary.

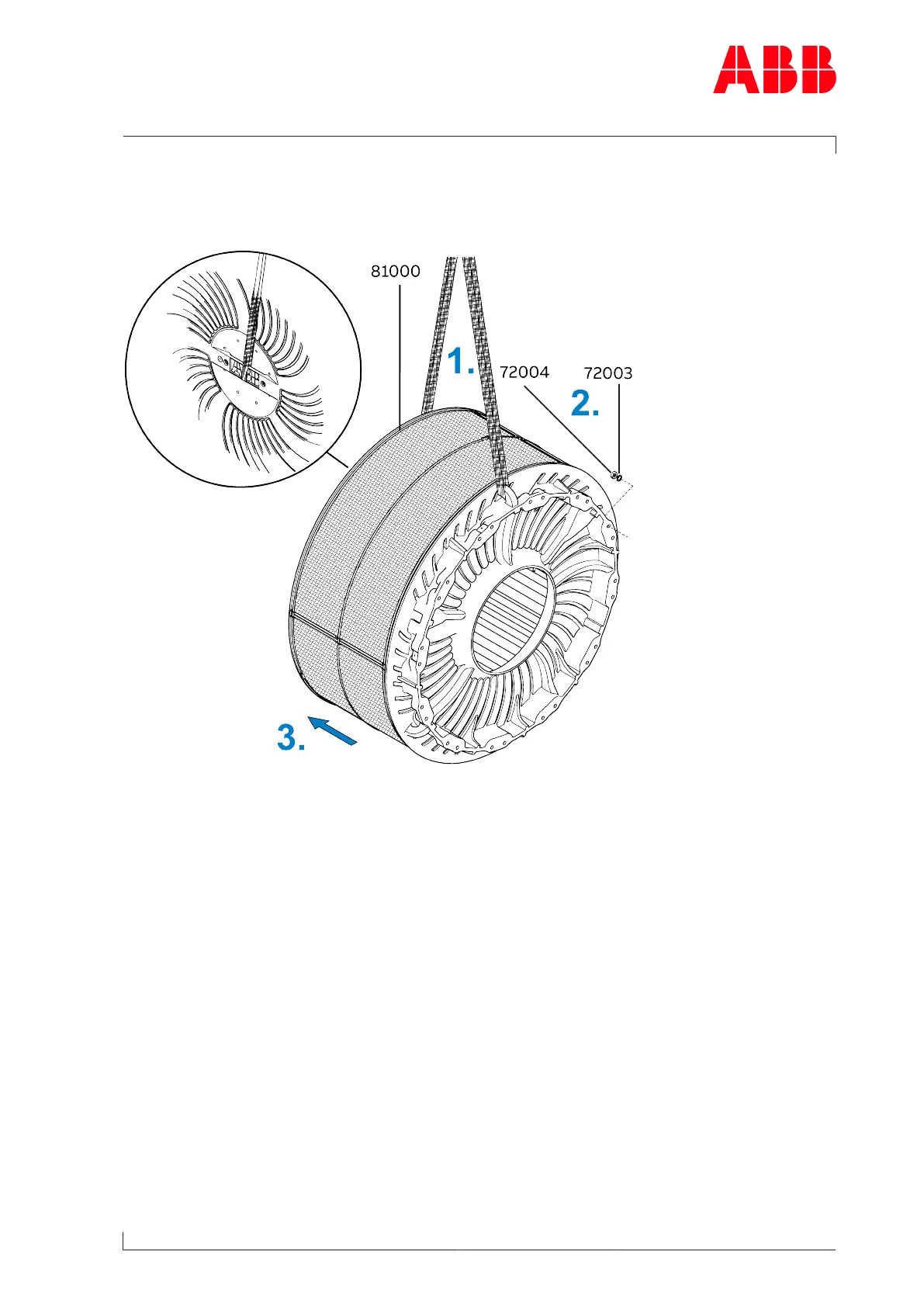

Fig.34: Dismantling the filter silencer
1. Attach the lifting gear to the front lug and rear eyelet of the filter silencer (81000).
2. Loosen nuts (72004) and remove with washers (72003).
3. Remove and put down filter silencer.
Page 79 / 145
