Operation Manual / A200-L
13 Spare parts / 13.2 Spare Part - Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4036_EN
Rev.T
December 2021

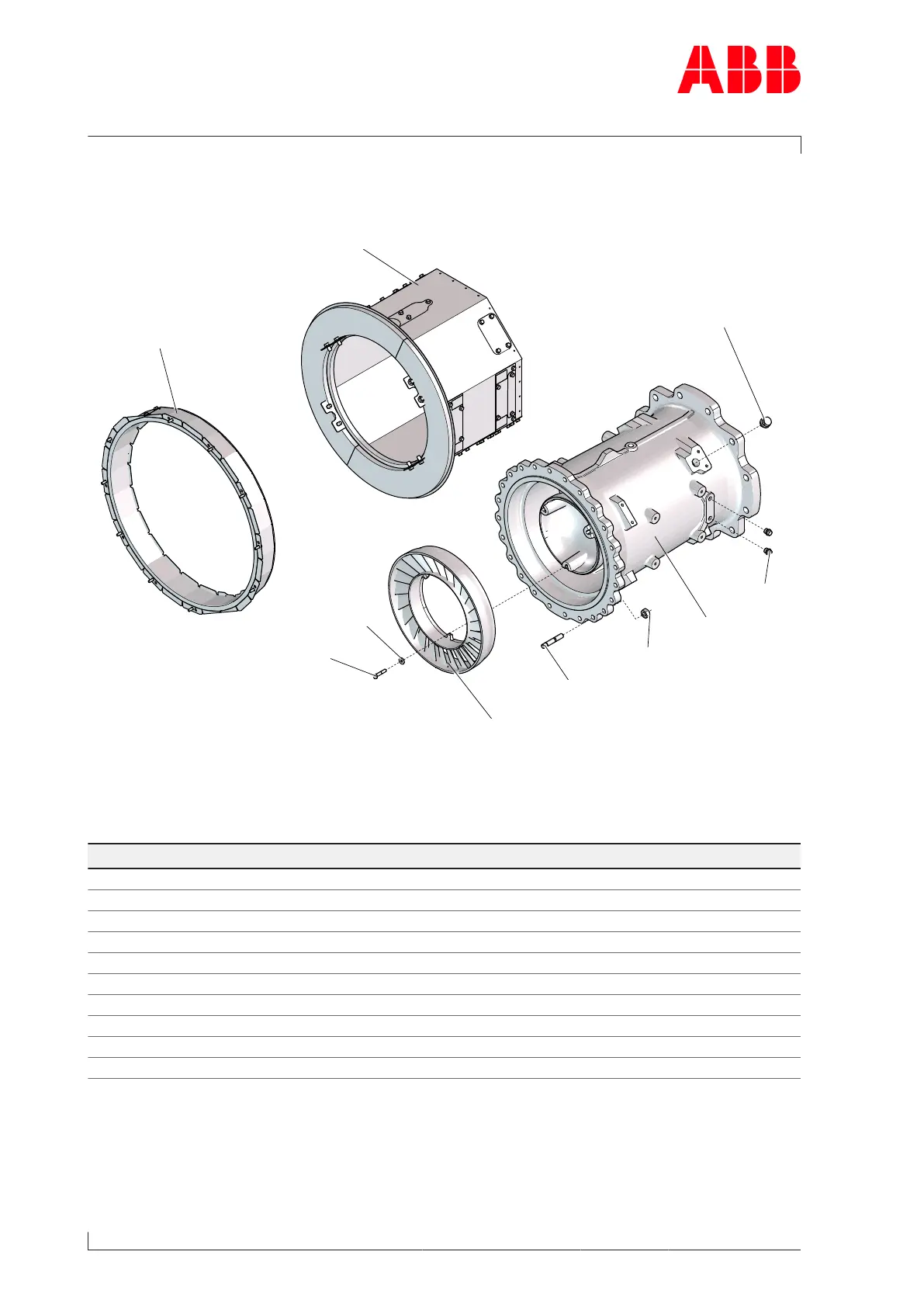

Gas inlet casing axial
51200
51075
51001
51215
51087
56001
51086
51074
56011*
56014*
HZTL443515 Mod. B
* = Av
ailable within the spare part set
Part no.
Designation
51001
Gas-inlet casing
51074
Screw plug
51075
Screw Plug
51086
Threaded stud
51087
Hexagon nut
51200
Insulation
51215
Insulation segment
56001
Nozzle ring
56011*
Washer
56014*
Hexagon-head screw
Table58: Spare parts – Gas inlet casing axial
Page 130 / 145
129
131
