9 Disassembly and assembly / 9.21 Fitting the filter silencer
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
9.21.3 Fitting the filter silencer (cast)

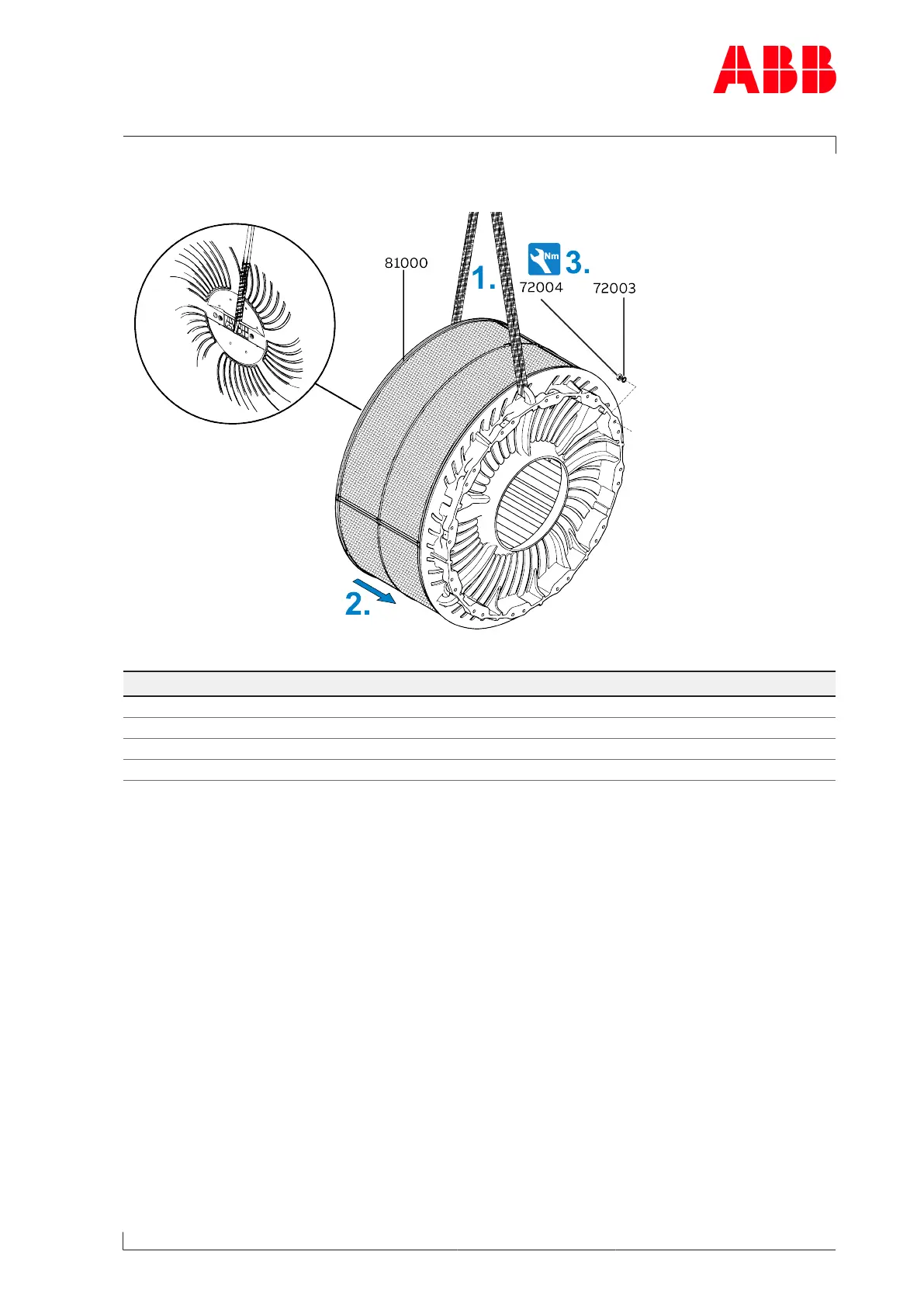

Fig.63: Fitting the filter silencer
Product Size Tightening torque [Nm]
A265-L M14 130
A270-L M16 200
A275-L M18 300
A280-L M20 420
Table44: Tightening torque (72004)
1. Attach the lifting gear to the front lug and rear eyelet of the filter silencer (81000).
2. Position filter silencer on compressor casing.
3. Fit nuts (72004) with washers(72003) and tighten.
u Fit insulation as far as necessary.
Page 107 / 145
