Operation Manual / A200-L
9 Disassembly and assembly / 9.10 Dismantling the nozzle ring (
≤
A275-
L)
© Copyright 2021 ABB. All rights reserved.
HZTL4036_EN
Rev.T
December 2021
9.10
Dismantling the nozzle ring (
≤
A275-L)

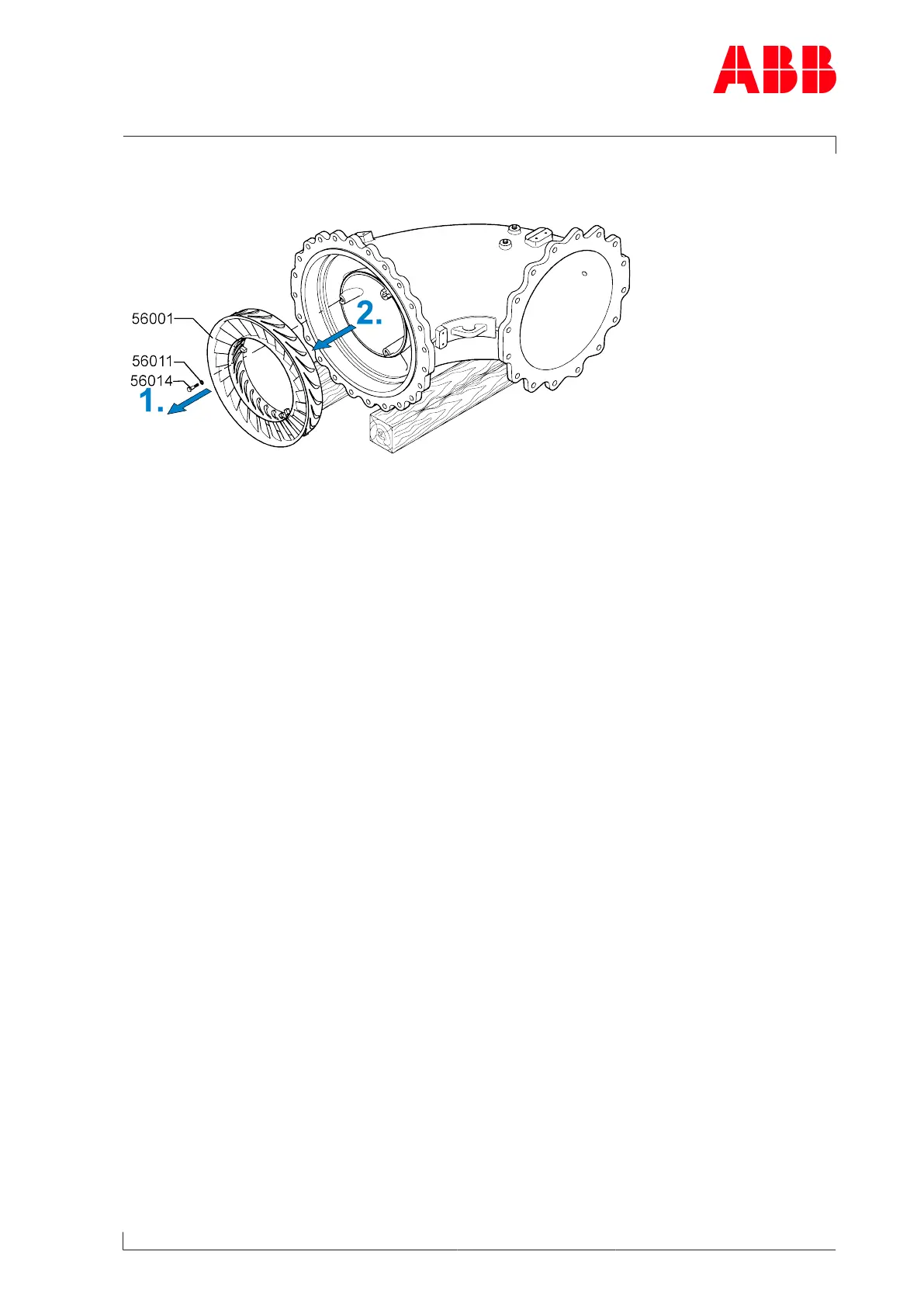

Fig.46: Dismantling the nozzle ring (A275-L and smaller)
1.
Loosen screws(56014) and remove with washers(56011).
2.
Remove and put down nozzle ring(56001).
Page 89 / 145
88
90
