Operation Manual / A200-L

9 Disassembly and assembly / 9.6 Dismantling wall insert and diffuser

9.6 Dismantling wall insert and diffuser

9.6.1 Dismantling the wall insert

A255-L.. - A260-L..

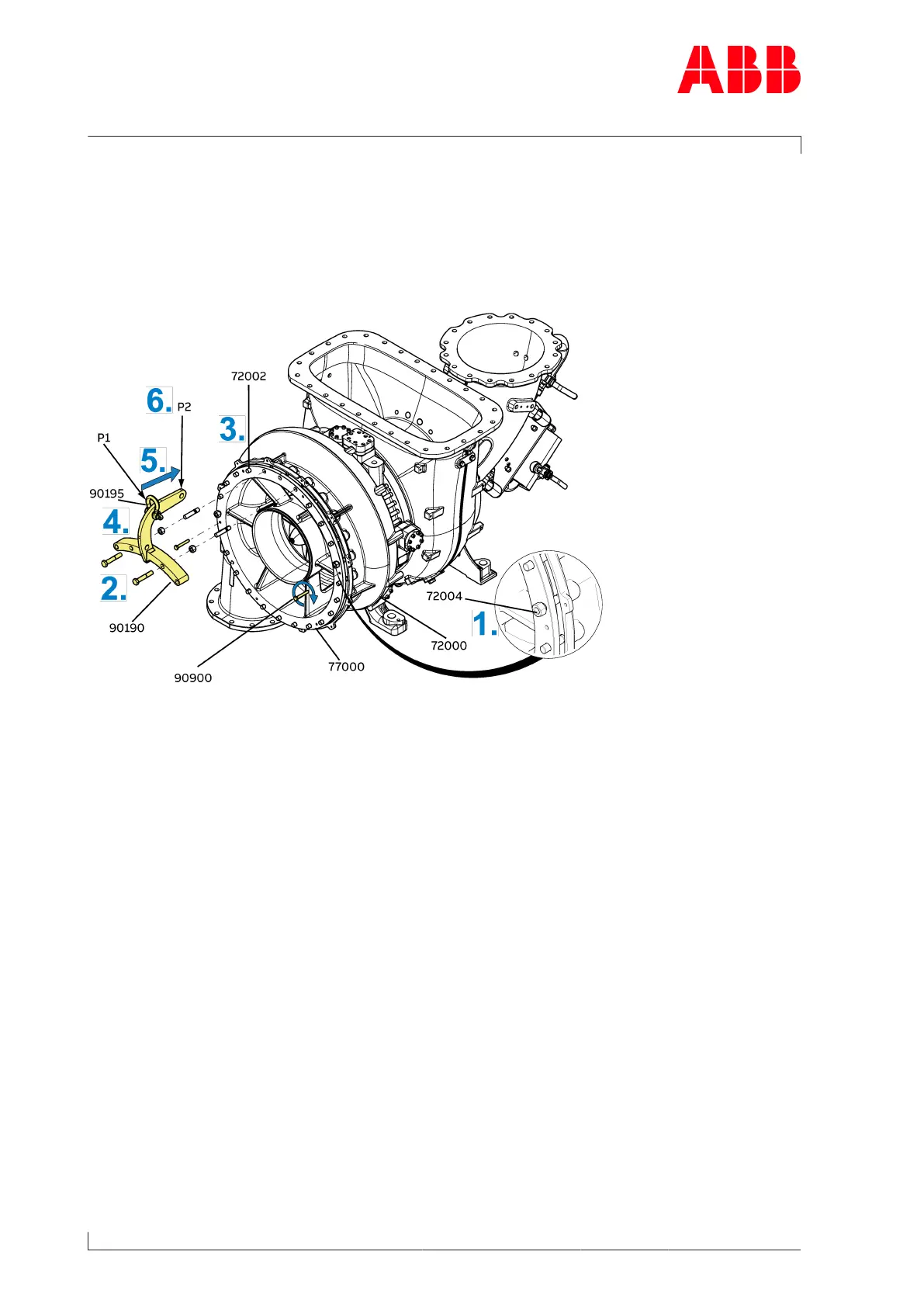

Fig.35: Dismantling the wall insert (A255-L.. - A260-L..)

1. Secure the wall insert(77000) with a hexagon nut(72004).

2. Use the press-off screws(90900) to press off the wall insert from the compressor cas-

ing(72000) until the lifting device(90190) can be fitted.

3. Remove four threaded studs(72002) at the top so that the lifting device can be fitted.

4. Fit shackle(90195) with lifting gear on P1 of lifting device.

5. Fit lifting device with crane on upper area of wall insert.

6. Change the position of the shackle with the lifting gear to P2 of the lifting device.

Page 80 / 145
