Operation Manual / A200-L
9 Disassembly and assembly / 9.12 Dismantling the nozzle ring (A280-L)
© Copyright 2021 ABB. All rights reserved.
HZTL4036_EN
Rev.T
December 2021
9.12
Dismantling the nozzle ring (A280-L)

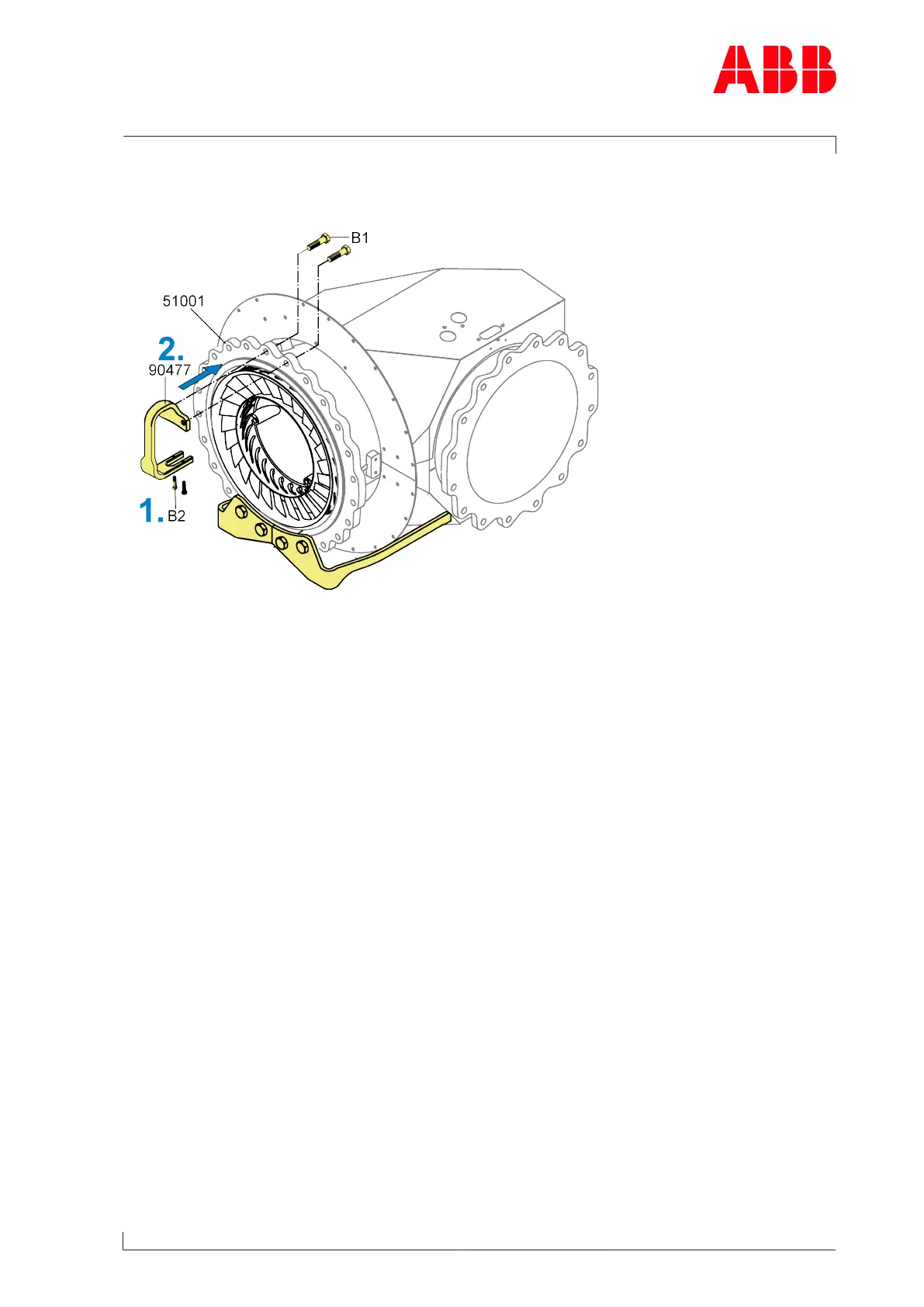

Fig.48: Fitting the nozzle ring holder
1.
Remove screws (B
2
).
2.
Fit the nozzle ring holder (90477) with screws (B
1
) at the top of the flange of the gas inlet
casing (51001).
Page 91 / 145
90
92
