Operation Manual / A200-L

9 Disassembly and assembly / 9.15 Fitting the insulation (≤ A275-L)

4. Coat two nuts with high-temperature grease and fix gas inlet casing in two opposite po-

sitions.

5. Coat remaining nuts with high-temperature grease, fit and then tighten crosswise, ini-

tially to the pre-tightening torque and then to the tightening torque.

6. Remove the lifting gear.

7. Connect the flange of the gas inlet casing and the bellows.

9.15 Fitting the insulation (

≤

A275-L)

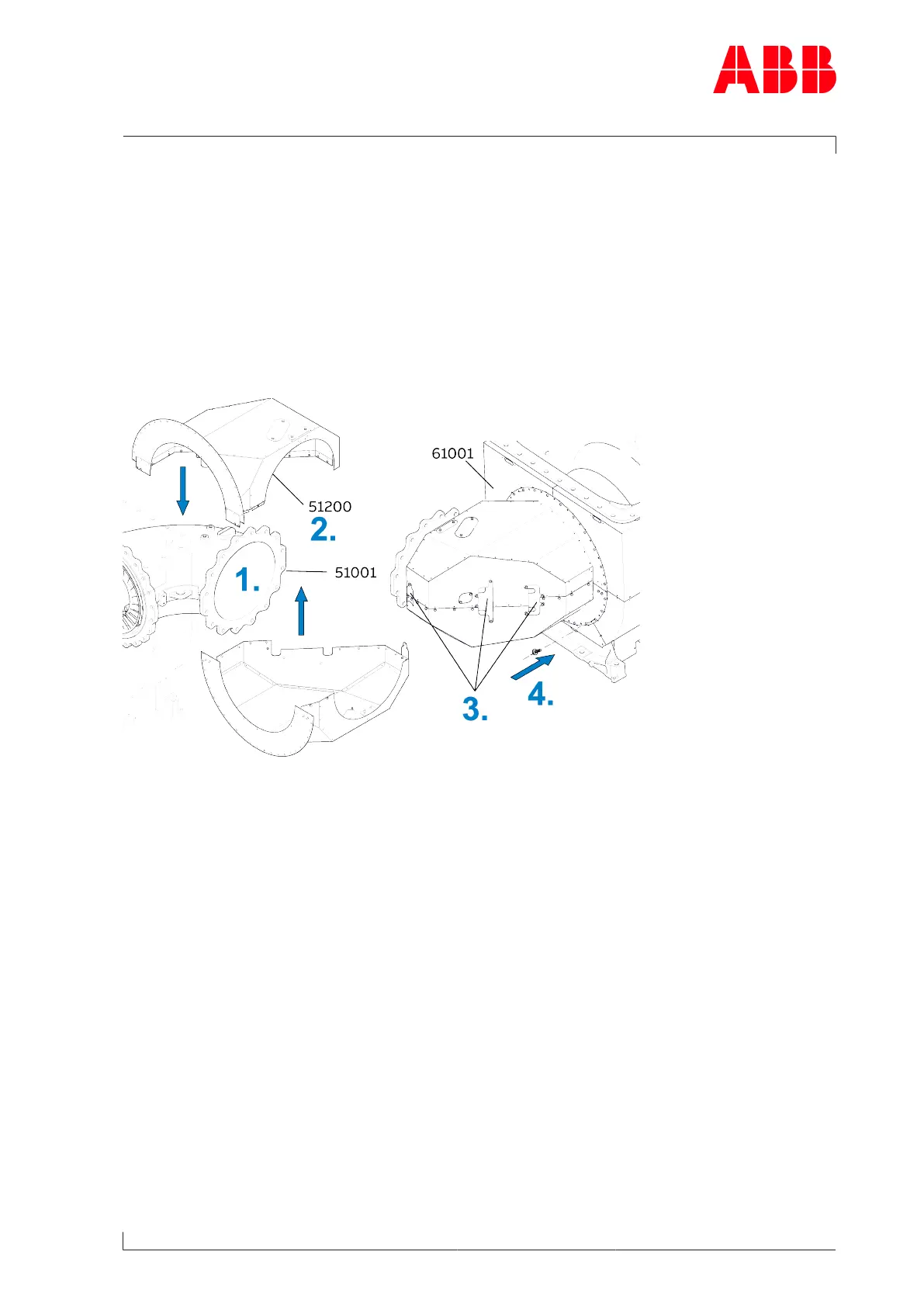

Fig.53: Fitting the insulation (A275-L and smaller)

1. Fit flange connection between gas inlet casing(51001) and bellows.

2. Fit the insulation jackets (51200) on the gas inlet casing(51001) with the screws.

3. Fit connecting plates of insulation jackets with screws.

4. Fit insulation jackets with screws on gas outlet casing(61001).

Page 95 / 145
