9.4 Disassembly and assembly of the filter silencer
casing
NOTICE
Disassembly / Assembly of the filter silencer casing
This chapter applies only to turbochargers with filter silencer casing.
Only the assembly of the filter silencer casing is described in detail.
The disassembly must be carried out in reverse order of the assembly.

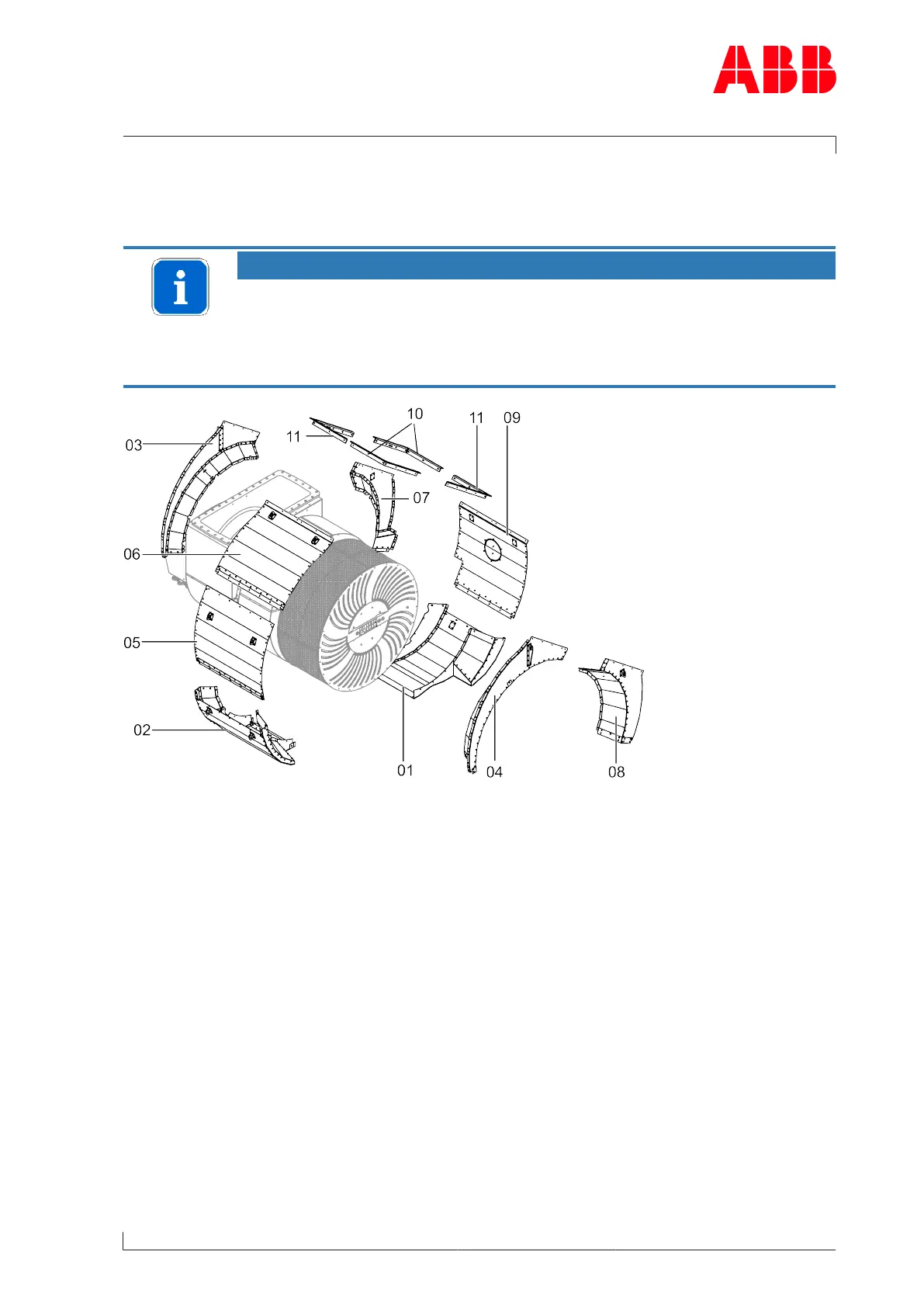

Fig.26: Dismantling the filter silencer casing
01, 02 Bottom part
03, 04, 07, 08 Side part
05, 06, 09 Circumferential part
10, 11 Flange
The complete filter silencer casing has the part number 81500.
