9 Disassembly and assembly / 9.21 Fitting the filter silencer
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
9.21.2 Fitting the filter silencer (welded)

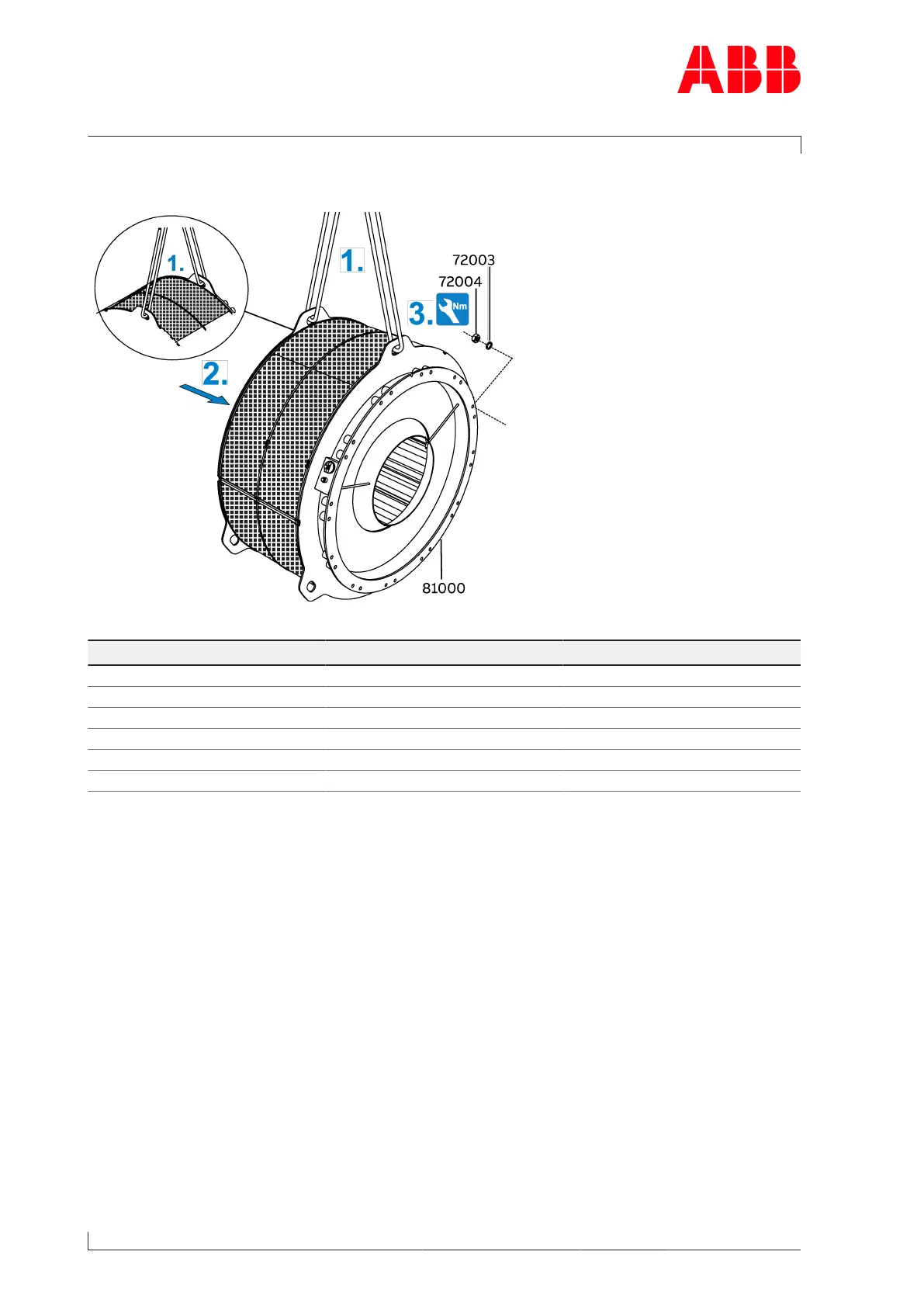

Fig.62: Fitting the filter silencer
Product Size Tightening torque [Nm]
A255-L M16 265
A260-L M16 265
A265-L M14 130
A270-L M16 200
A275-L M18 300
A280-L M20 420
Table43: Tightening torque (72004)
1. Attach lifting gear to the eyelets of the filter silencer (81000).
2. Position filter silencer on compressor casing.
3. Fit nuts (72004) with washers(72003) and tighten.
u Fit insulation as far as necessary.
