Operation Manual / A200-L
9 Disassembly and assembly / 9.6 Dismantling wall insert and diffuser
© Copyright 2021 ABB. All rights reserved.
HZTL4036_EN
Rev.T
December 2021

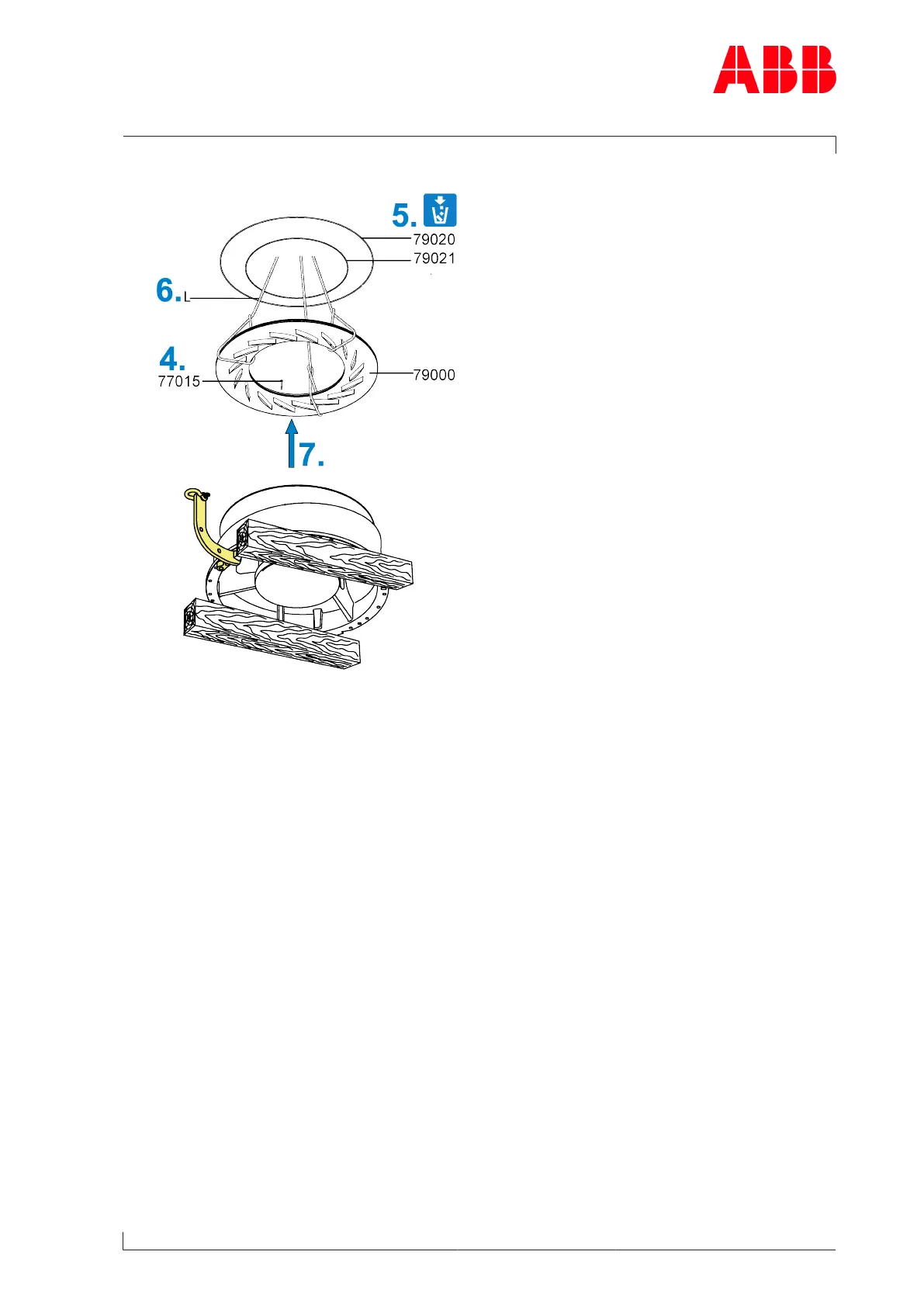

Fig.42: Dismantling the diffuser
4.
Loosen and remove screws(77015).
5.
Remove O-rings(79020, 79021).
6.
Attach lifting gear (L) to the diffuser(79000).
7.
Remove and put down diffuser.
Page 85 / 145
84
86
