10-12 (32) 2UEA001270 Rev. F ACS2000 User manual
Chapter 10 - Troubleshooting and maintenance
10.4.3 Service access
High temperature!
Components inside the drive can be hot. Particularly the temperature of
the resistor assembly is very high when the drive has been in operation.
Before taking off any of the covers on the back of the cabinet, wait until the
fan has stopped. The fan runs continuously for a preset time after the main
power supply has been switched off to cool down the resistors and
dissipate the heat from the drive.

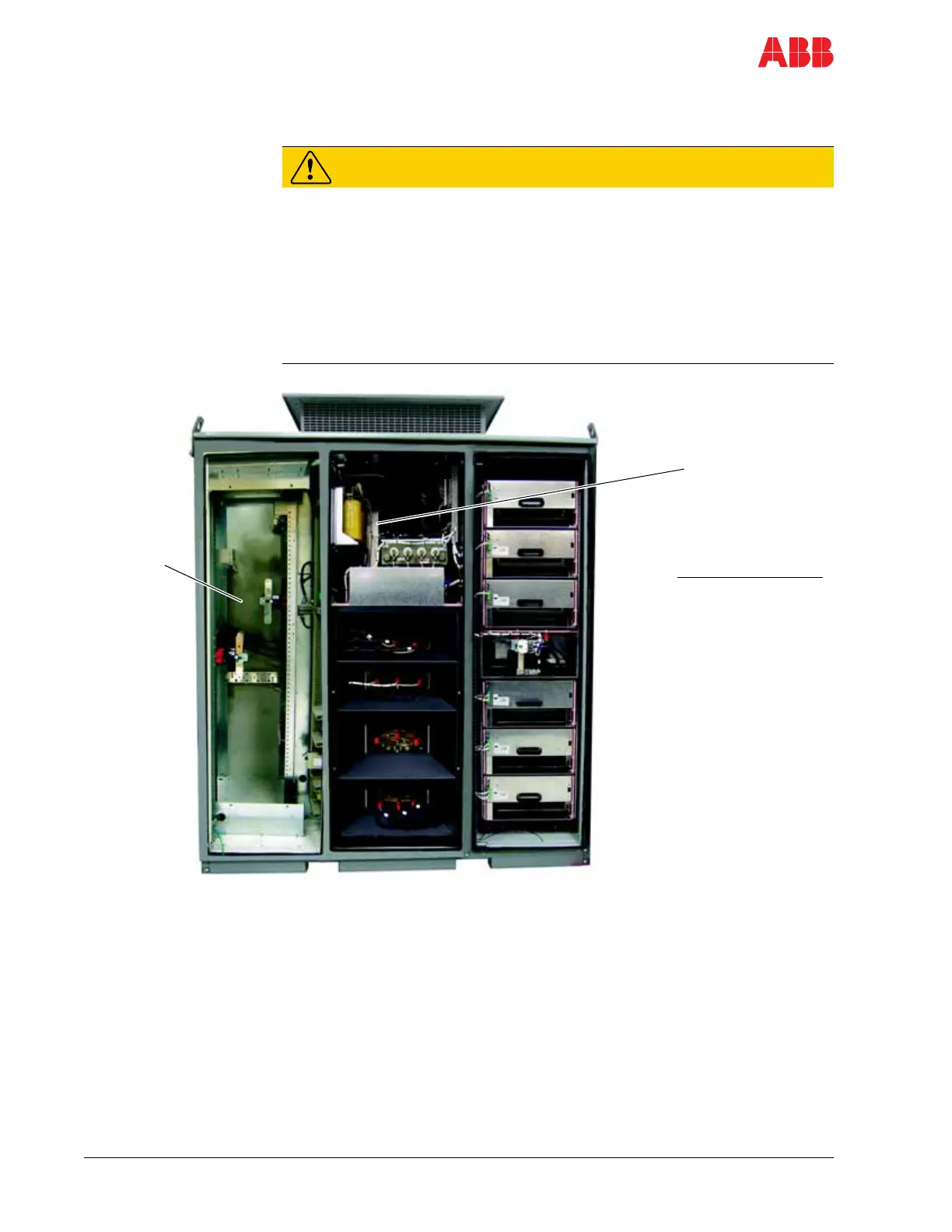

Figure 10-6 - Frame 1 Front service access
1
Legend
1 TEU (Terminal
Entry Unit)
2 Filter
compartment
2
