ACS2000 User manual 2UEA001270 Rev. F 2-23 (28)
Chapter 2 - Power electronics and cabinet features
2.5 TEU - Terminal Entry Unit
The terminal entry unit provides the terminals for the line supply (power in)
and motor cables and the ground bus for the termination of the ground
cable and the cable shields.
The cables enter through the top or through the floor of the cabinet: the
ACS2000 drive supports either method.
The ground bus slotted hole feature supports both NEMA and IEC lugs.

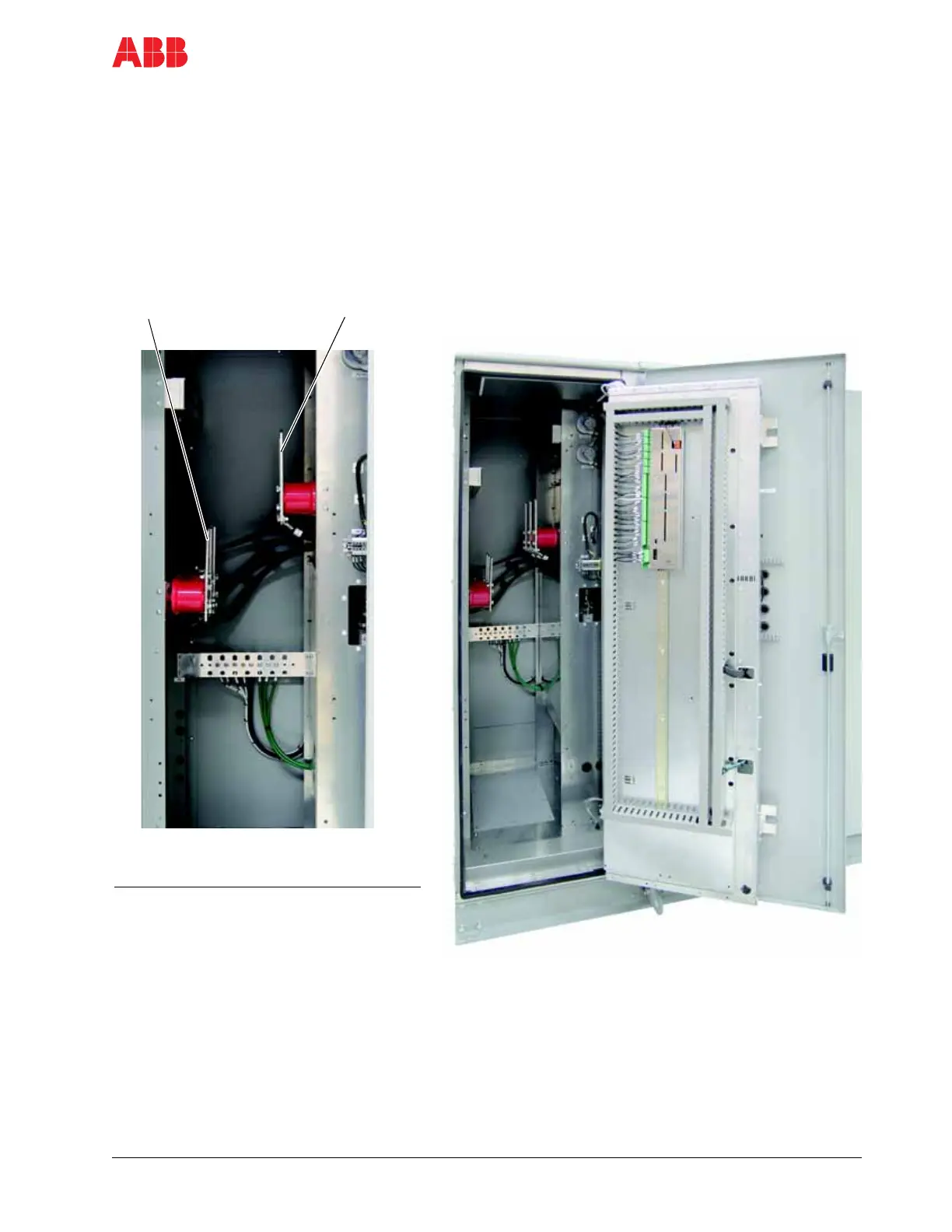

Figure 2-19 Terminal entry unit
See Chapter 6 - Electrical installation for further information.
Legend
1 Motor OUT terminals (U2, V2, W2)
2 Power IN terminals (L1, L2, L3)
12
