ABB ACS850 User Manual

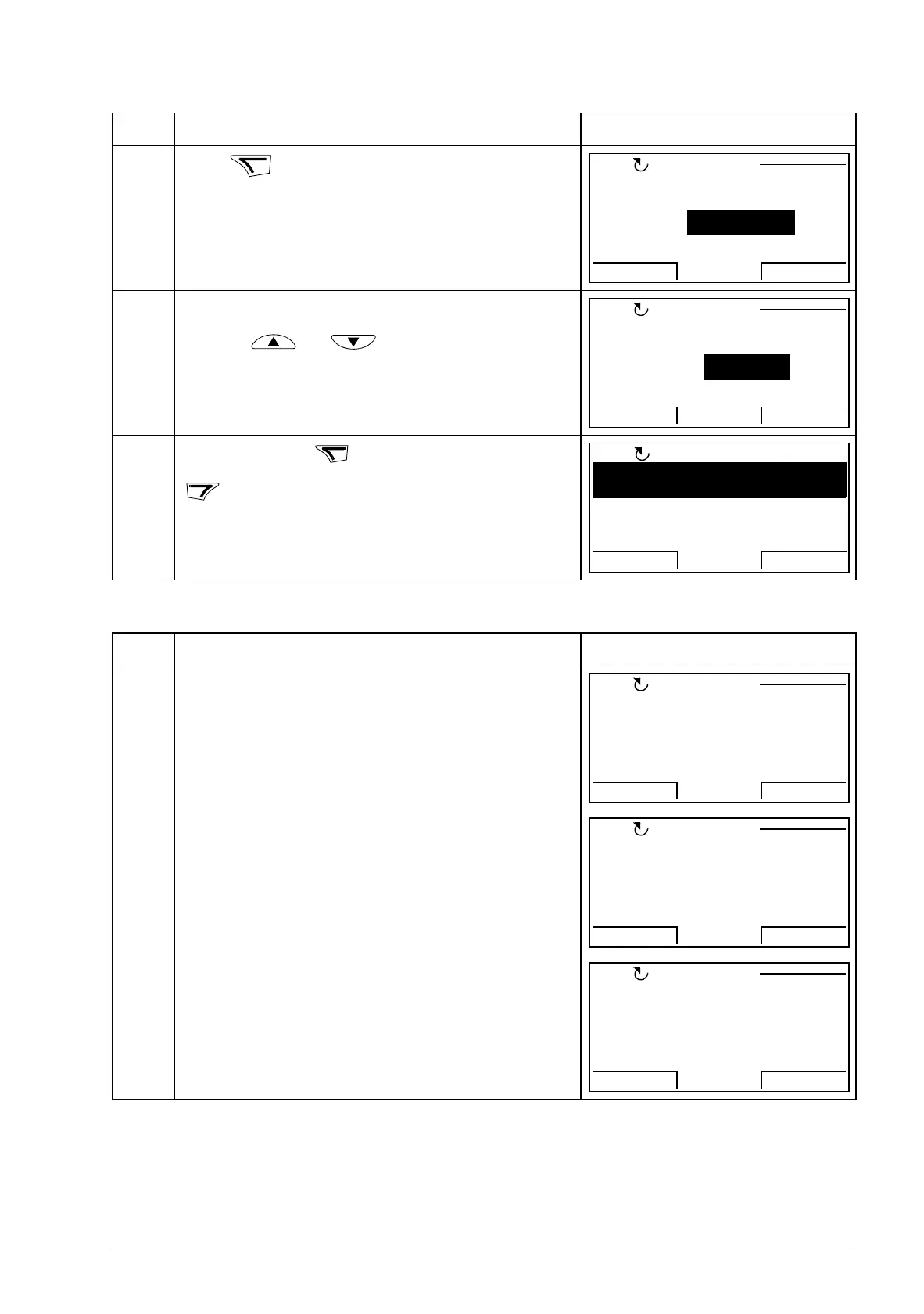

The ACS850 control panel 31
How to select the monitored signals
5. Press .
6. Specify a new constant value (TRUE or FALSE) for the
bit pointer parameter
with keys and .
7. To continue, press .
To cancel the new value and keep the original, press
.
The new value is shown in the parameters list.
Step Action Display
1. You can select which signals are monitored in the Output
mode and how they are displayed with group 56 Panel
display parameters. See page 25 for detailed instructions
on changing parameter values.
Note: If you set one of the parameters 56.01…56.03 to
zero, in the output mode you can see names for the two
remaining signals. The names are also shown if you set
one of the mode parameters 56.04…56.06 to Disabled.
Step Action Display
NEXT
C.FALSE
1407 DIO2 out src
PAR EDIT
CANCEL SAVE
00:00
[0]
LOC
C.TRUE
1407 DIO2 out src
PAR EDIT
CANCEL
SAVE
00:00
[1]
LOC
SAVE
CANCEL
1407 DIO2 out src
C.TRUE
1408 DIO2 Ton
1409 DIO2 Toff
1410 DIO3 conf
PARAMETERS
EXIT
EDIT
00:00
LOC
5601 Signal1 param
PAR EDIT
01.03
CANCEL NEXT
00:00
LOC
5602 Signal2 param
PAR EDIT
01.04
CANCEL NEXT
00:00
LOC
5603 Signal3 param
PAR EDIT
01.06
CANCEL NEXT00:00
LOC
