38 The ACS850 control panel
To specify the date format, select DATE FORMAT on the
menu, press and select a suitable format.
Press to save or to cancel your changes.
To set the time, select SET TIME on the menu and press
.
Specify the hours with keys and , and press
.
Then specify the minutes. Press to save or
to cancel your changes.
To set the date, select SET DATE on the menu and press
.
Specify the first part of the date (day or month depending
on the selected date format) with keys and
, and press . Repeat for the second part.
After specifying the year, press . To cancel your
changes, press .
To enable or disable the automatic clock transitions
according to the daylight saving changes, select
DAYLIGHT SAVING on the menu and press .
Pressing opens the help that shows the beginning
and end dates of the period during which daylight saving
time is used in each country or area whose daylight
saving changes you can select to be followed. Scroll the
text with keys and . To return to the
previous display, press .
To disable automatic clock transitions according to the
daylight saving changes, select Off and press .
To enable automatic clock transitions, select the country
or area whose daylight saving changes are followed and
press .
To return to the previous display without making
changes, press .

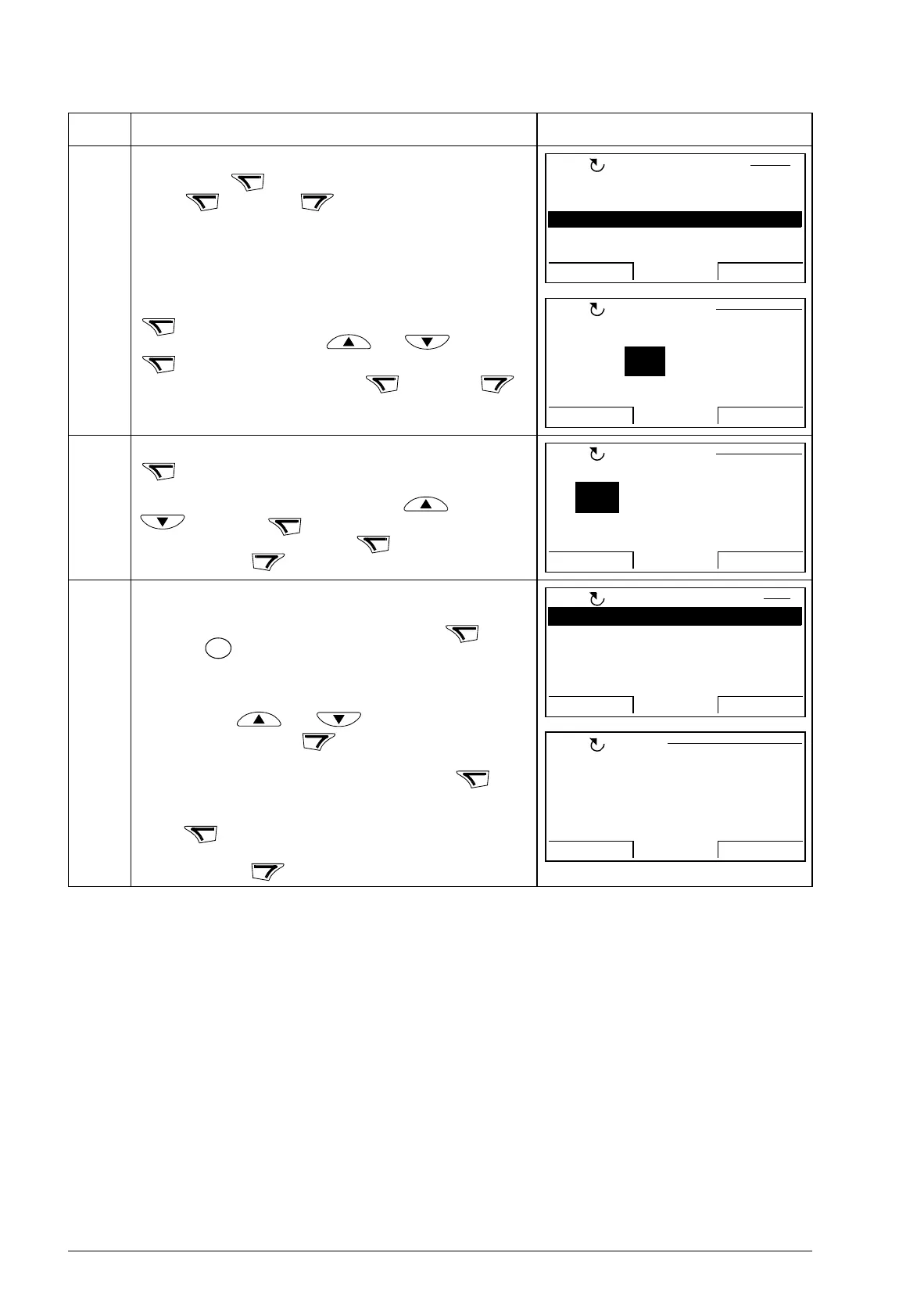

Step Action Display
SEL
OK
CANCEL
dd.mm.yy
mm/dd/yy
dd.mm.yyyy
mm/dd/yyyy
CANCEL OK
00:00
DATE FORMAT 3
LOC
SEL
OK
OK
CANCEL
15:41
SET TIME
CANCEL
OK
LOC
SEL
OK
OK
CANCEL
19.03.2008
SET DATE
CANCEL OK00:00
LOC
SEL
?
EXIT
SEL
SEL
EXIT
Off
EU
US
Australia1:NSW,Vict..
Australia2:Tasmania..
EXIT SEL
00:00
DAYLIGHT SAV 1
LOC
EXIT
00:00
EU:
On: Mar last Sunday
Off: Oct last Sunday
US:
HELP
LOC
