ABB DCS 600 MultiDrive User Manual

Chapter 3 - Handling of Control Panel CDP 312
DCS 600 Operating Instructions IV F 3 - 11

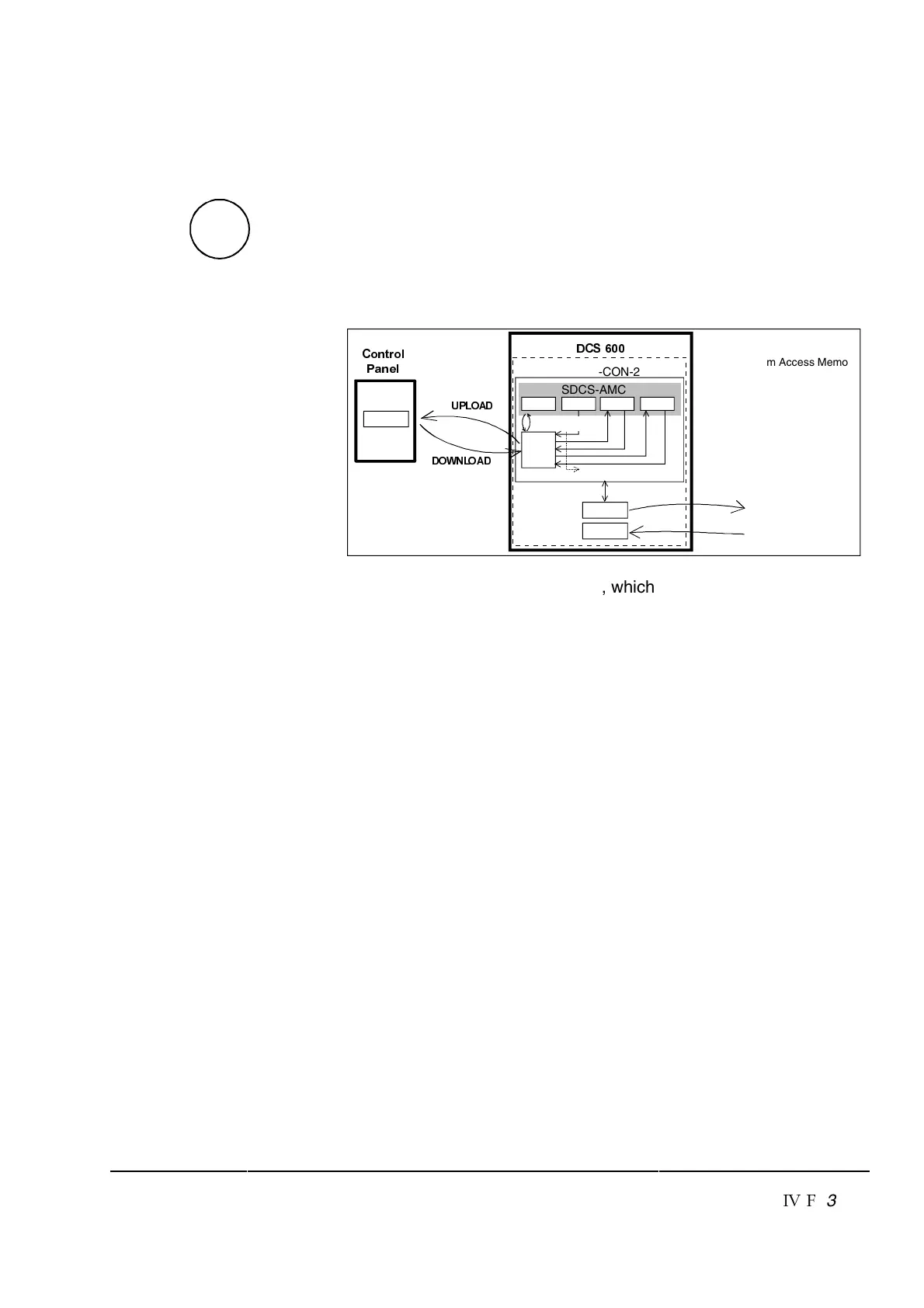

3.9 Uploading and Downloading of Parameters (UPLOAD/DOWNLOAD)
FUNC
CAUTION!
The drive must be in standstill condition with given
STOP command (controllers blocked, power section
disconnected from the network) when UPLOAD/
DOWNLOAD function is selected.
The upload and download function is operative for
groups 10…97
RAM
FactoryActual User 2User 1
FPROM
Auto-
matically
99.11 =
Factory
User1 Save User1 Load User2 Save User2 Load
Start
99.9 = Yes
'2:1/2$'
83/2$'
SDCS-CON-2
SDCS-AMC-DC
Only required for
changed unit-(type-)
dependent values:
[P 15.02] = 22
&RQWURO
3DQHO
CDP 312
RAM = Random Access Memory
FPROM = FLASH-PROM
RAM
FPROM
FPROM
'&6
UPLOAD will copy all parameters, which are different to default,
from the RAM memory of the SDCS-AMC-DC board to the FPROM
memory of the Control Panel CDP 312.
Before a DOWNLOAD is started the factory-set values (default
values) should be available within the RAM memory of the SDCS-
AMC-DC board. Factory-set values are always available in the
FPROM memory of this board and they can be called by means of
APPLIC_RESTORE parameter 99.09 with the exception of the
group 99. Parameter 99.11 APPLICATION MACRO has to be set
to FACTORY.
The exceptional group has to be checked and if necessary,
changed by manual setting. Instead of this a saved default pa-
rameter set can be loaded by DRIVES WINDOW.
The DOWNLOAD will copy all values stored in the FPROM memory
of the CDP 312 to the RAM memory of the SDCS-AMC-DC board.
Note: For reasons of safety the DOWNLOAD function will only
operate if “LOCAL mode” of the Control Panel CDP 312
is selected!
