Technical data
104
3ADW000462R0301 DCS880 Hardware Manual e c
DC-DC transducer A92 (1)

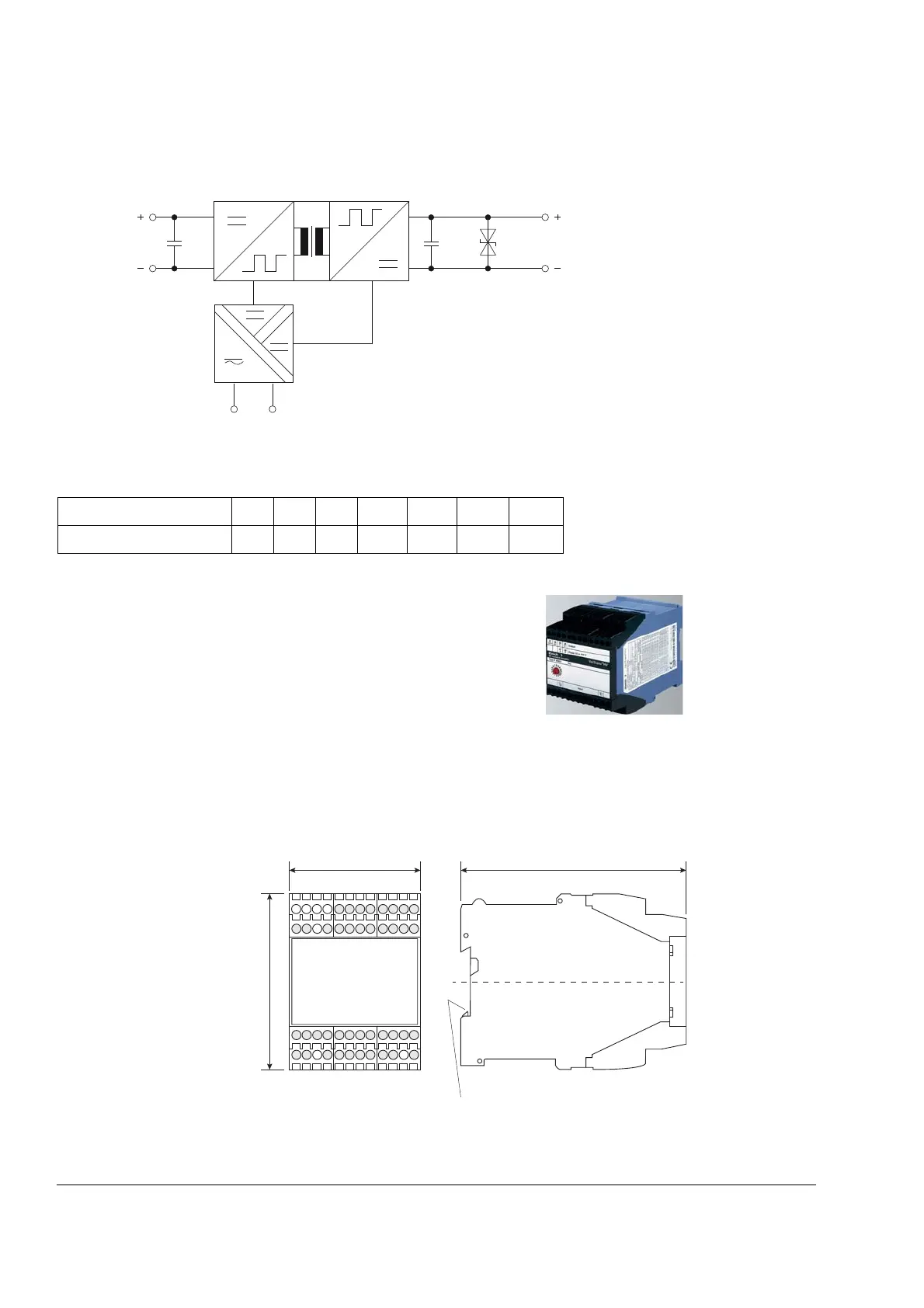

Principle circuit diagram of the DC-DC transducer A92 (1)
Data
The voltage gain and frequency response is especially designed for DCS880 converters.
Selectable voltage gains 675 810 945 1080 1350 1620 V
DC
Switch position 0123 5 6 -
Output voltage: 20 mA; ±10 V; 4 ... 20 mA
(P42000D3-0111)
Auxiliary power: 20 ... 253 V
AC/DC
; 50/60 Hz; 3 W
Clearance in air: Auxiliary power to Output: > 13 mm
Input / Output to Auxiliary power: > 14 mm
Insulation voltage: 2200 V
Insulation test voltage: 10 kV
AC
Ambient temperature range: -10 ... +70°C
Weight: appr. 500 g
Dimensions in mm
Terminal assignments:
15 Voltage input -
23 Voltage input + (3600 V)
27 Power supply AC/DC
28 Power supply AC/DC
37 Current output +
38 Voltage output +
39 Current output -
40 Voltage output -
SF_WAN_001_A92_a.ai
Voltage input Output U/I
Power supply
20 - 253 V
AC/DC
10 pF 1 nF Z 15 V
67,5 118,0
27
2315
37 38 39 40
90,0
BE_KLE_001_a.ai Snap-on mounting for 35 mm top-hat rail
DIN EN 50 022

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
