ABB DCS880 H1 User Manual

Planning the electrical installation
45
3ADW000462R0301 DCS880 Hardware Manual e c
Cooling fans
Fan assignment for DCS880
Converter type Size Configuration Fan type Airflow built in [m³/h]
DCS880-S0b-0045-04/05 ...
DCS880-S0b-00100-04/05
H1 1 1 x 3110UL 57
DCS880-S0b-0135-04/05 ...
DCS880-S0b-0300-04/05
H2 2 2 x AFB122 170
DCS880-S0b-0315-04/05 ...
DCS880-S0b-0450-04/05
H3
DCS880-S0b-0470-04/05 ...
DCS880-S0b-0520-04/05
3 2 x 3110UL
2 x AFB122
255
DCS880-S0b-0610-04/05 ...
DCS880-S0b-0820-04/05
H4 4 1 x W2E200
230 V; 1

388
DCS880-S0b-0610-04/05 ...
DCS880-S0b-0820-04/05
DCS880-S0b-0900-04/05 ...
DCS880-S0b-1000-04/05
1 x W2E250
230 V; 1

425
DCS880-S0b-0900-04/05 ...
DCS880-S0b-1000-04/05
DCS880-S0b-1190-04/05 H5 5 R2E250-RB
230 V; 1

918
DCS880-S0b-0900-0d ...
DCS880-S0b-2000-0d
H6 850
DCS880-S0b-1900-0d ...
DCS880-S0b-3000-0d
H7 6 GR28C-2DK
400 V / 500 V @ 50 Hz
or
460 V @ 60 Hz
1700
DCS880-S0b-2050-dd ...
DCS880-S0b-5200-dd
H8 7 GR35C-2DD
400 V @ 50 Hz or
460 V @ 60 Hz
4500

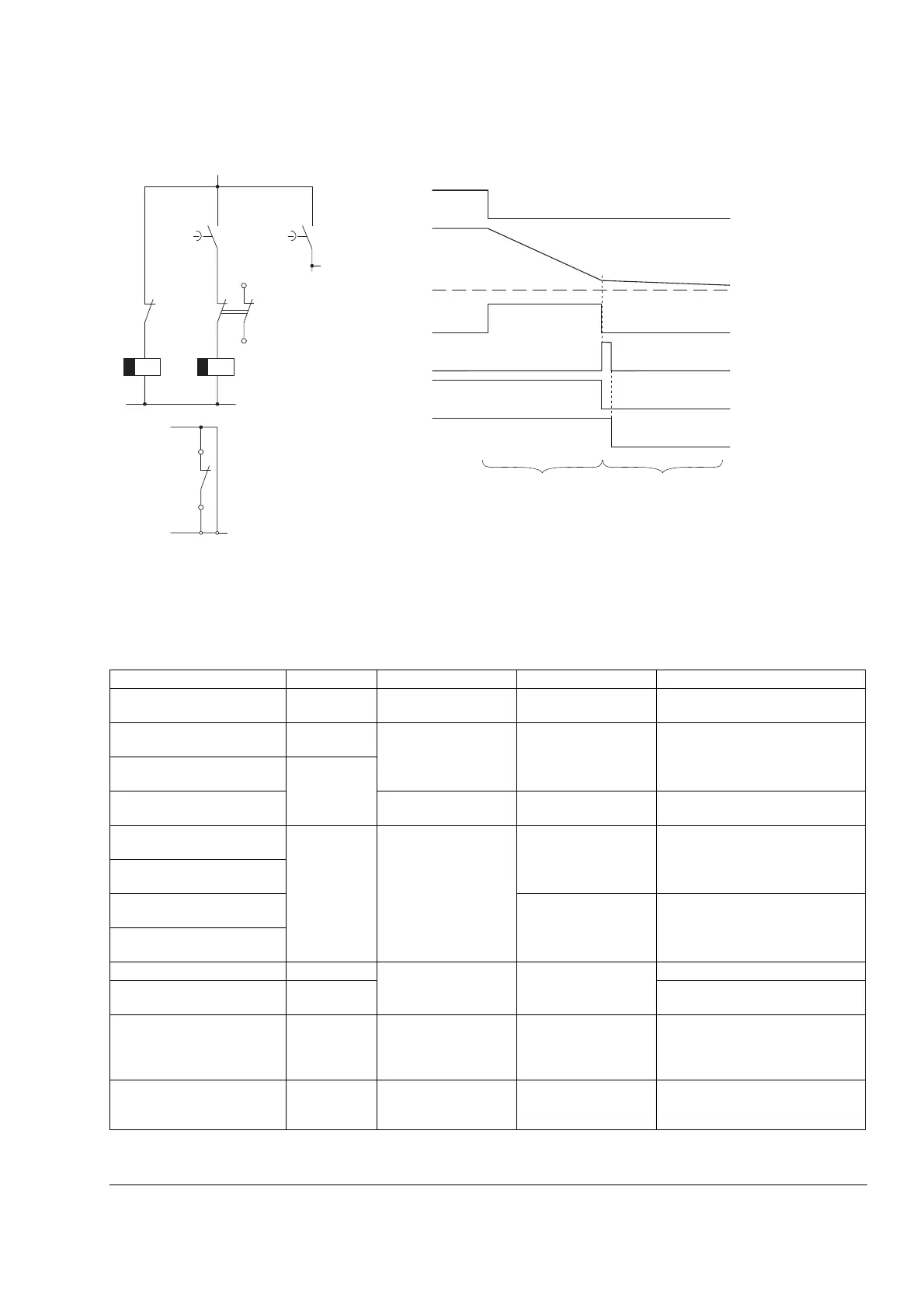

K16K15
K15
1
2
SF_CON4_001_E-stop_b.ai
1
2
K16
Off2
Off2
Off2 (current off)
1
DIL
XD24 2
+24 VD
Off3
DZ_LIN_006_E-stop_b.ai
Emergency stop
Speed
Block current control
Mains contactor (K1)
Emergency stop ramp Coast
Timer relay (K15)
Timer relay (K16)
Emergency stop reaction

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
